Waterproof Insulation Magnesium Oxide Wall Board Building Material Machinery

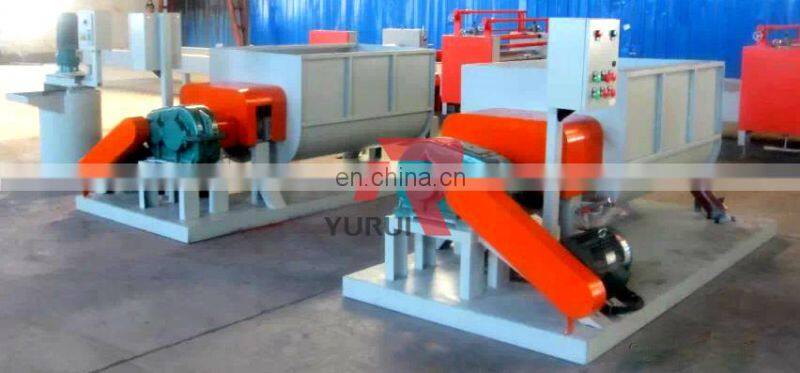

Function:using unique double shaft mixer, ensuring mixing evenly and no blocking.

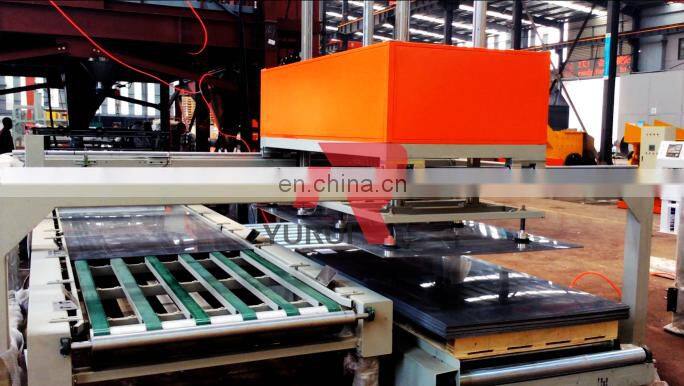

2.Electrical mould feeding machine

The principle of vacuum is adopted, which uses the vacuum negative pressure to "adsorpt" artifacts in order to achieve the purpose of the clamping workpiece. Moving the mould onto the conveyor for stand-by; no need the manual work and feeding board automatically, which can reduce the labor intensity, improving working efficiency and lengthen the moulds service life

3.PLC automatic controlling system for board making machine

Function and characteristics:Built-in adjustable program for automatically controlling the mould feeding, gluing, and forming processes. It combines the automatic control technology,sensor technology, computer management technology in the integration of mechanical and electrical integration system,having advantages such as high controlling precision, etc.

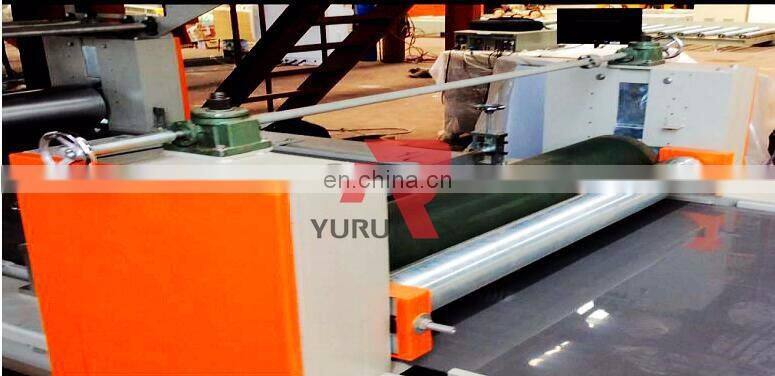

4.Automatic oiling machine

Function and characteristics:Automatically smearing the release agent on the surface of the mould, smearing evenly, less usage amount, and can avoid sticky. A pair of close touched oil roller form a sealed cavity, mold release agent is stored in the sealed cavity. One oil roller is made of steel, another is rubber roller. When oiling, the oil roller rotates and adheres the release agent sealed cavityon onto the rubber roller, the mould entering to the underneath of the rotating oil glue roller by conveying, and thenthe release agent adhered on the rubber roller is applied onto the mould surface.

5.Forming system

Equipment function and characteristics:Consisting of all the configuration for automatically feeding slurry, automatically laying cloth, automatically flatting and forming one-time.

6.Finishing system

Equipment function and characteristics: Extruding formed board secondary, so as to make the board surface more flat,smooth,uniform thickness

8.Platform of steel-structure

Equipment function and characteristics:Placing mixing and measuring system; consisting of planking, primary and secondary beams, columns, and ladders, railings

1..Unique two times  curing process:

 First curing room(28-38degree, not higher than 40degree) and second curing room(35-45degree, not higher than 50degree), promising the complete chemical reaction of MGO and MgCl2/MgSO4, so as to ensure stable performance
of finished products.
Curing temperature needs to be reasonable. According to the different temperature in different areas, need to adopt different methods. Ideal reaction temperature is 35 to 40 degrees, equipped with heating, ventilation and dehumidifier, temperature difference is controlled in less than 5 degrees curing room Without compartment, the temperature difference will be about 10 degrees.

2..Can produce both non-woven MGO board and sanding MGO board.

 Our produce line can produce both Non-woven MGO board and sanding MGO board to help customer meet different market demind,at present we are the only factory mastering the technology of qualified sanding MGO board and its machine.

3.Good machine can ensure good board quality

4.We have a short machine testing time 10-15days

Our machine testing time only 15days ,and compare with these need one month and even some can not suceed , we can help you save much money .

5.Provide qualified formulation and workers training

After installation and commissioning ,we will provide MGO board formula suitbale with your demand ,ensuring you can produce qualified MGO board. Additional we will help local experienced engineer at least for one year to master the production process .
