Gypsum board paper production line and manufacturing machine in plant

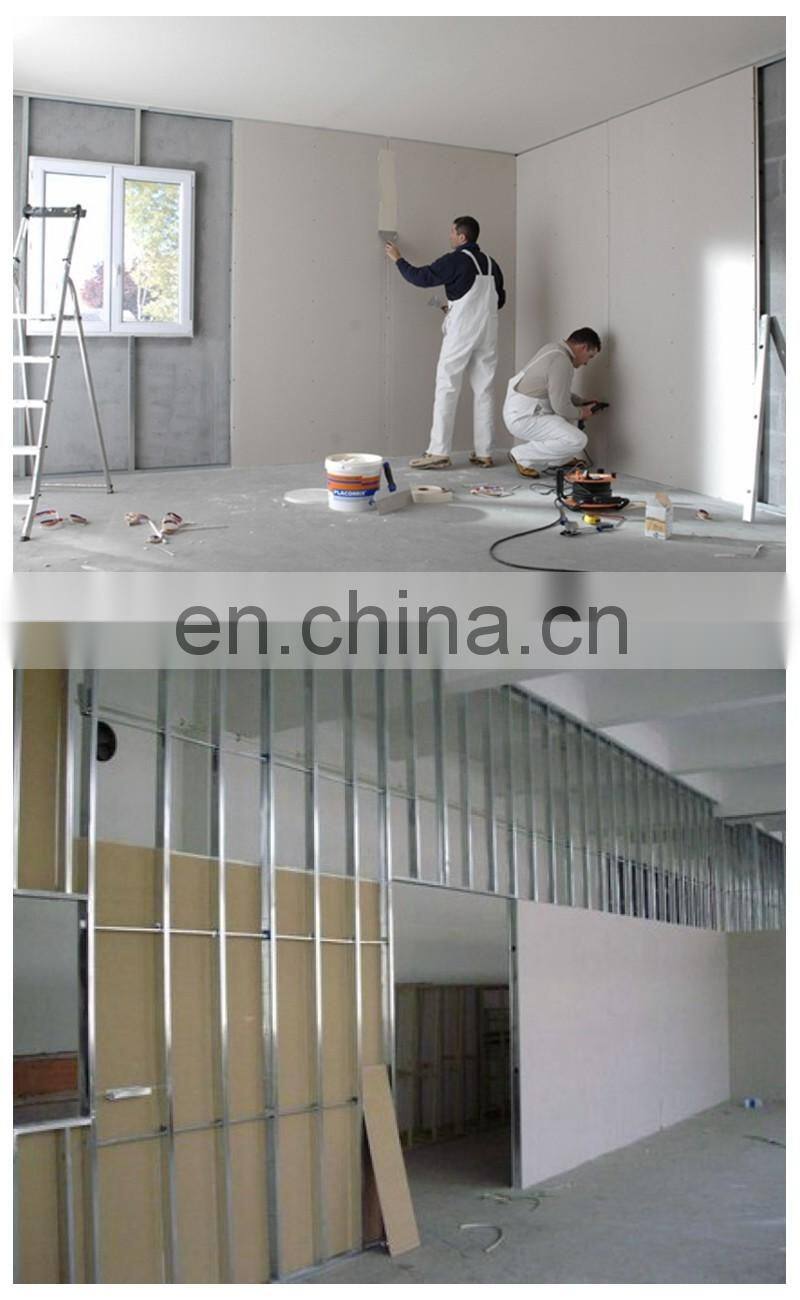

The gypsum board is often used in the Ceiling decoration. It is also a very good light walling material. In foreign countries, it is often used as walling material more than ceiling.
The scale of production and the area of the plant are moderate and match the automation and the mechanization of the production line, which is easy to manage.
The production line adopts Germany's advanced technology and our researching personnel research on the main parts such as dosing, forming and drying to design high efficiency, stability and energy saving production line.
The line moves at speed of less than 6 m/min , which accommodates with the condition of raw materials supply and have no special requirement for the raw materials.
Less investment and mature production technology. The production cycle is short and the customers will benefit very quickly. The quality of the products is easy to guarantee.

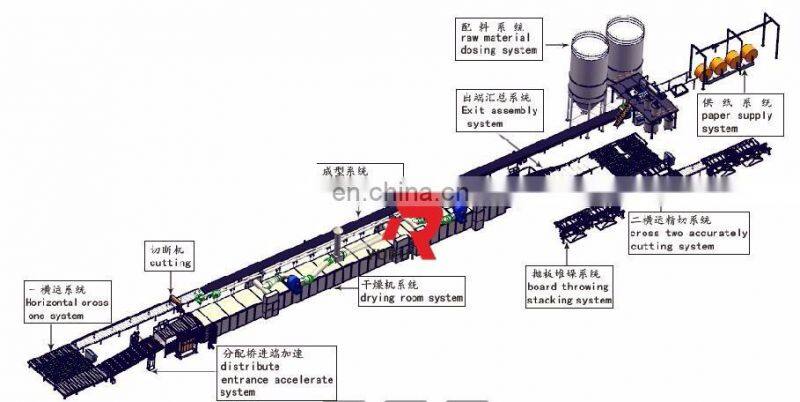

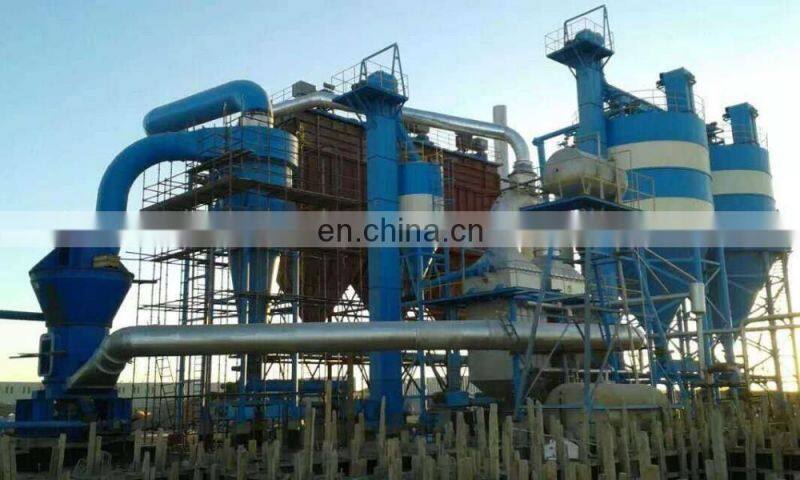

Layout& Aerial view
Raw materials consumption

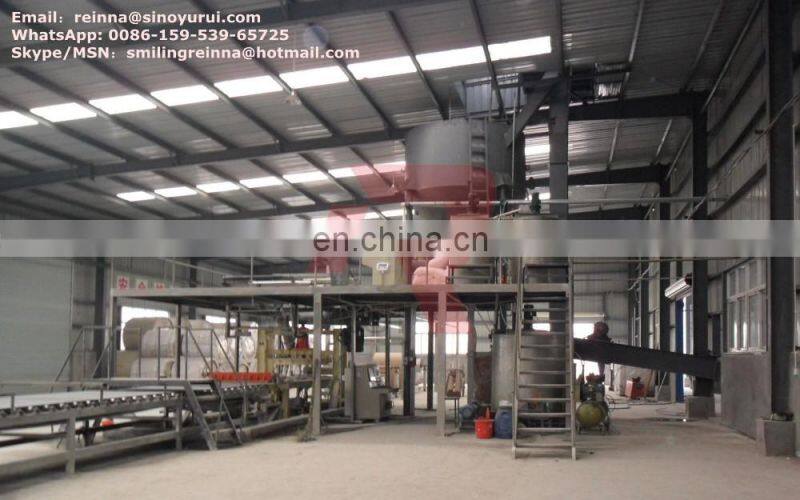

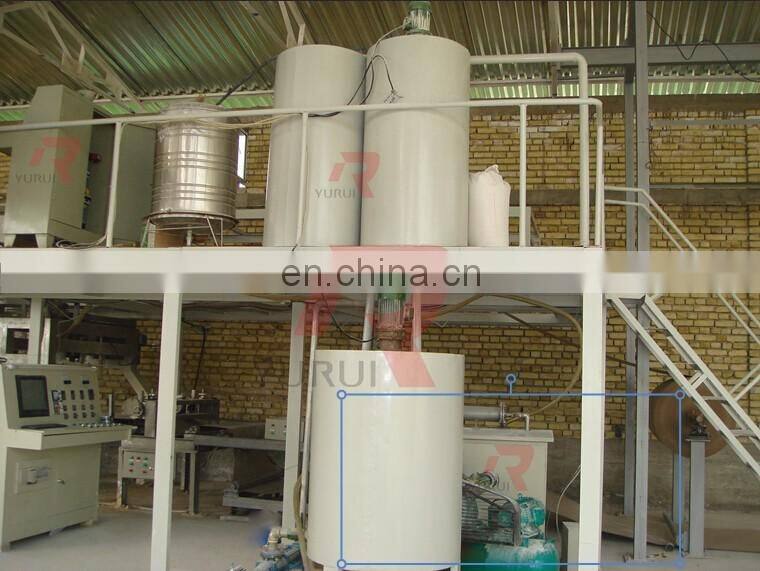

Dosing system

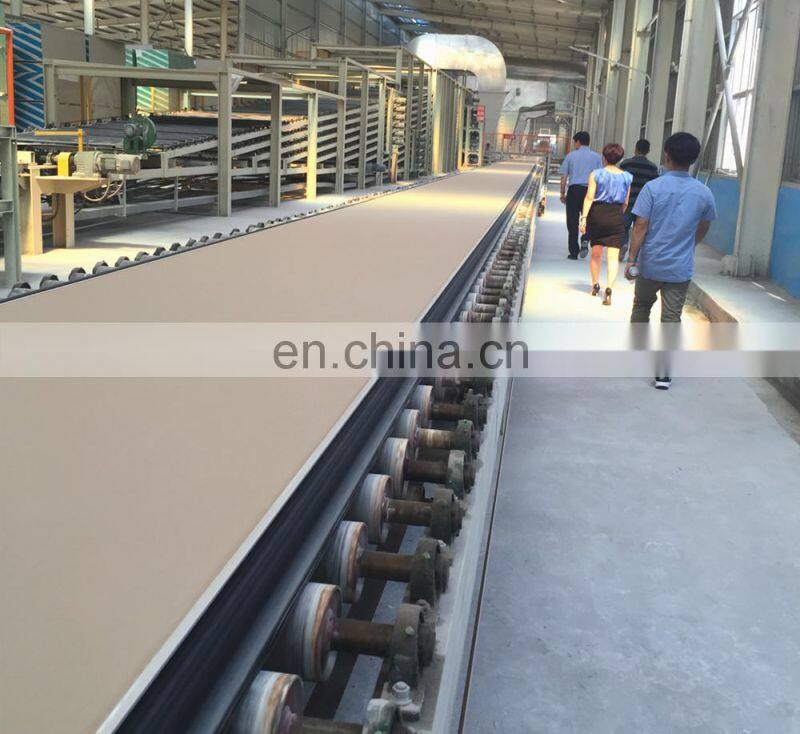

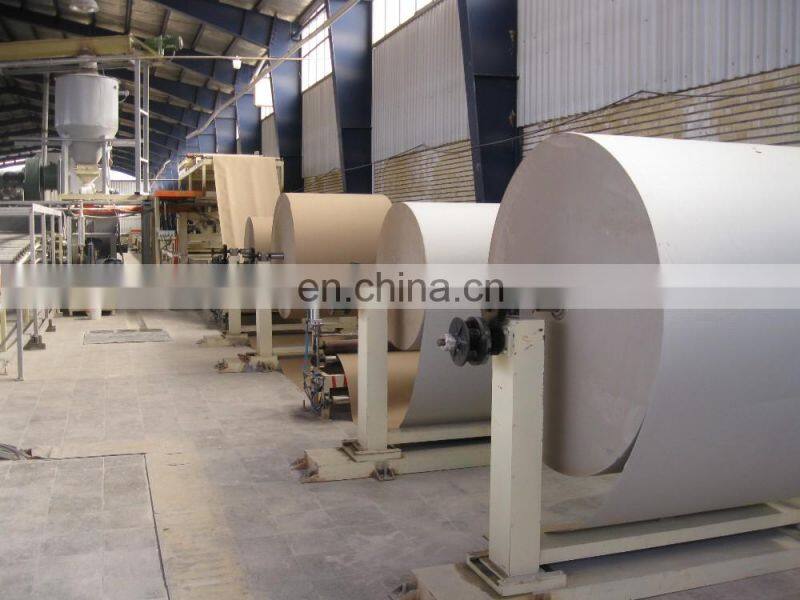

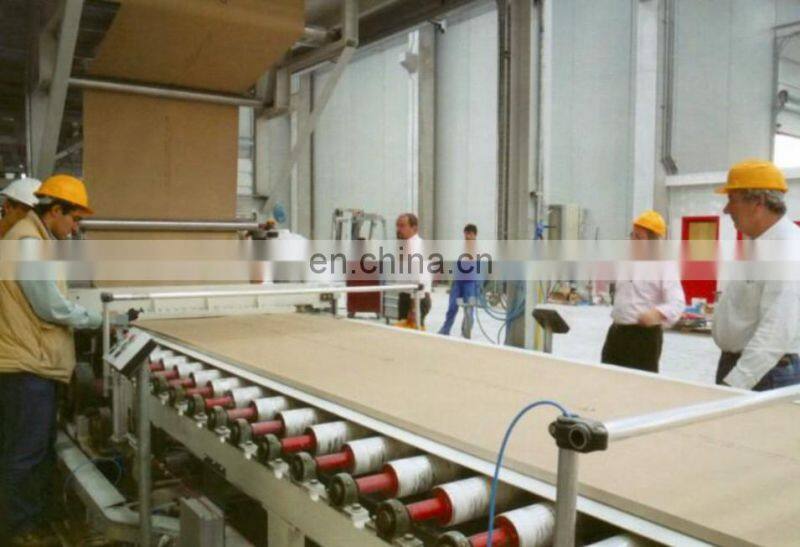

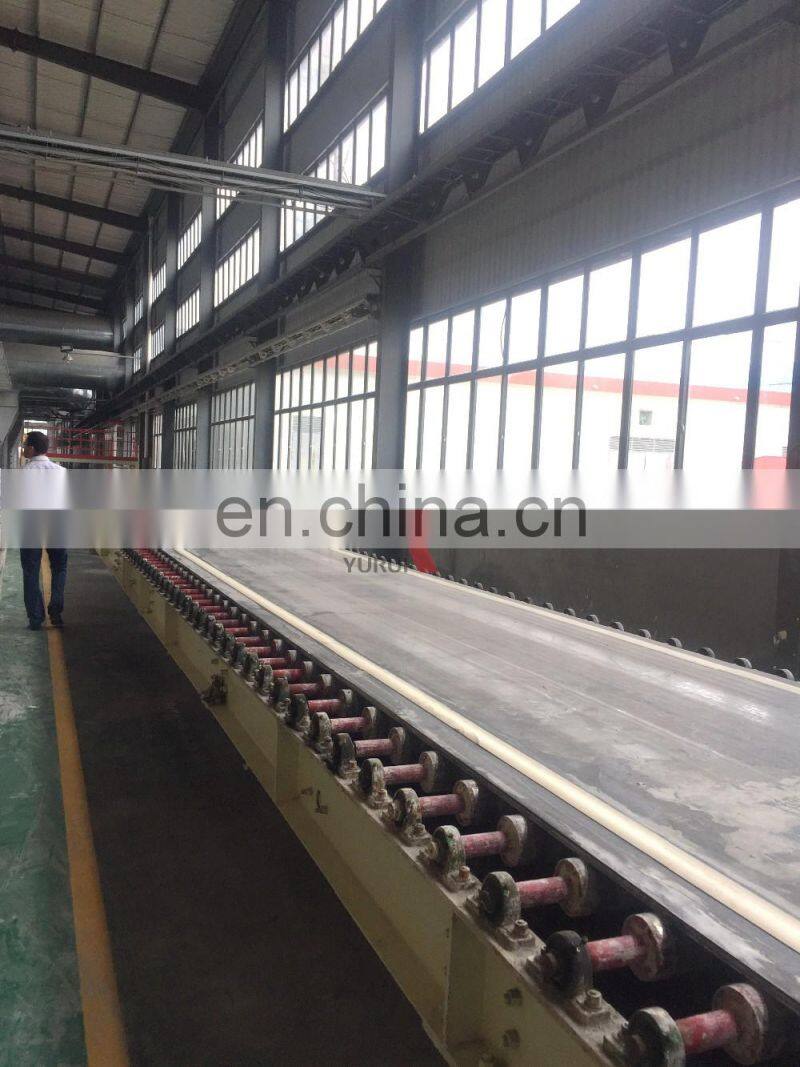

Forming&solidification system
Application: to form the semi-finished gypsum board products from the gypsum powder slurry.

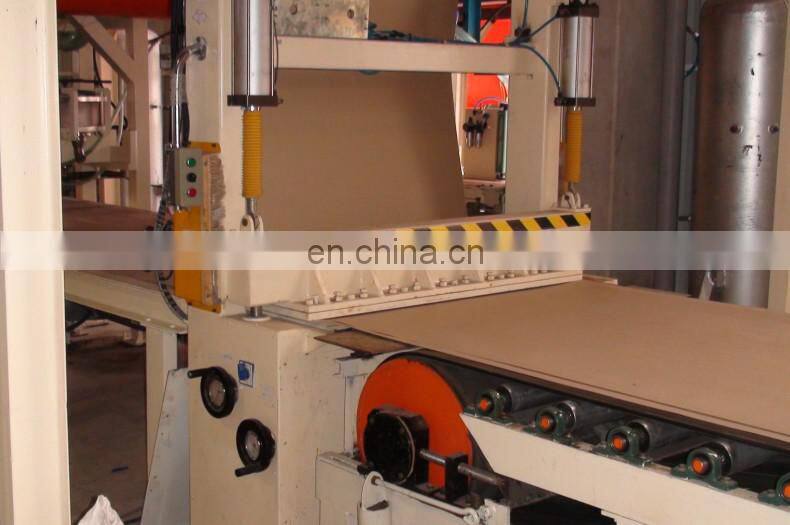

Automatic cutting system

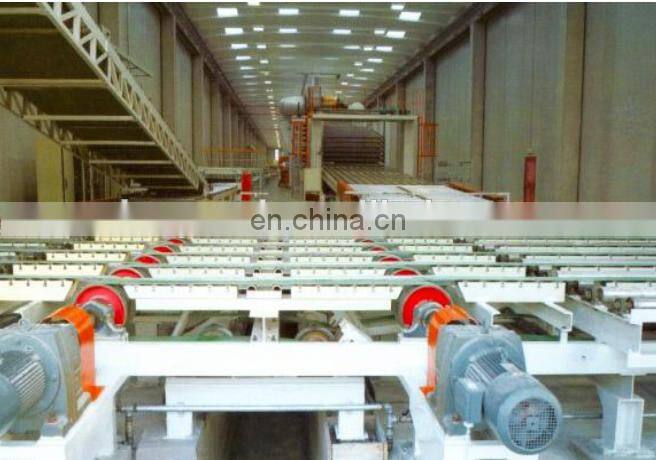

Transit system
Usage: used to horizontally transport the cut plate to distributor.

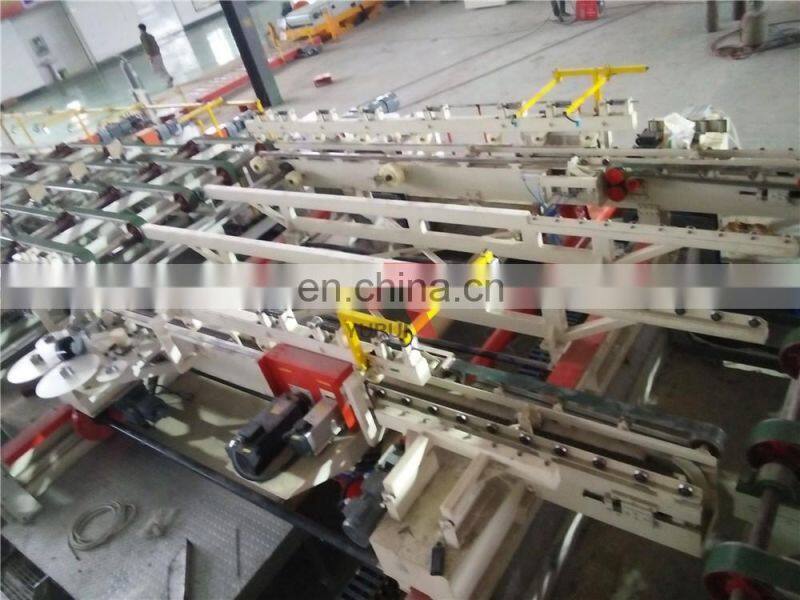

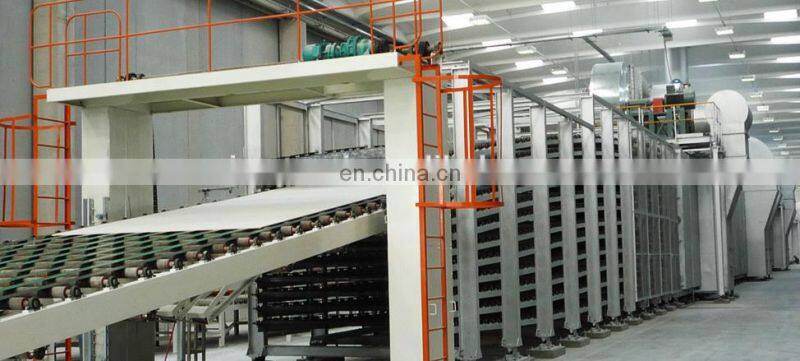

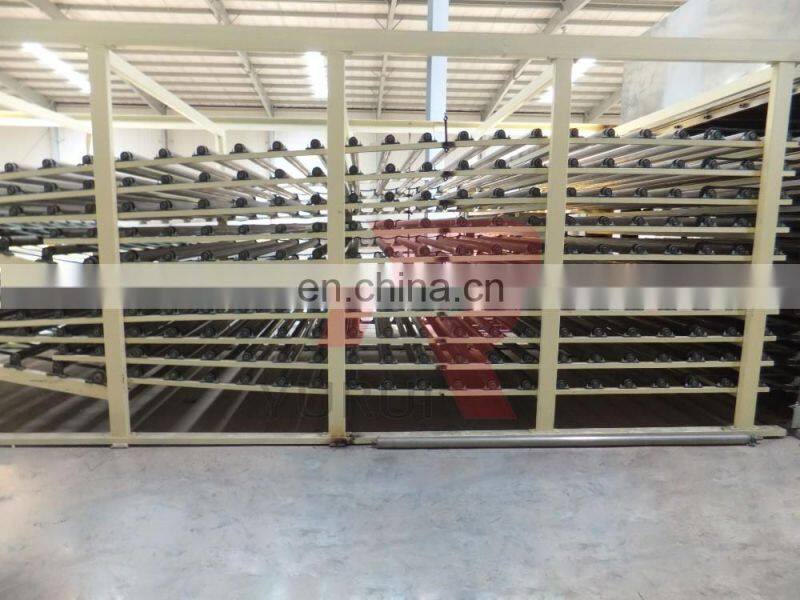

Distribution system
Application: used to transport the wet gypsum board to each story of drying machine with the control of PLC distributor.

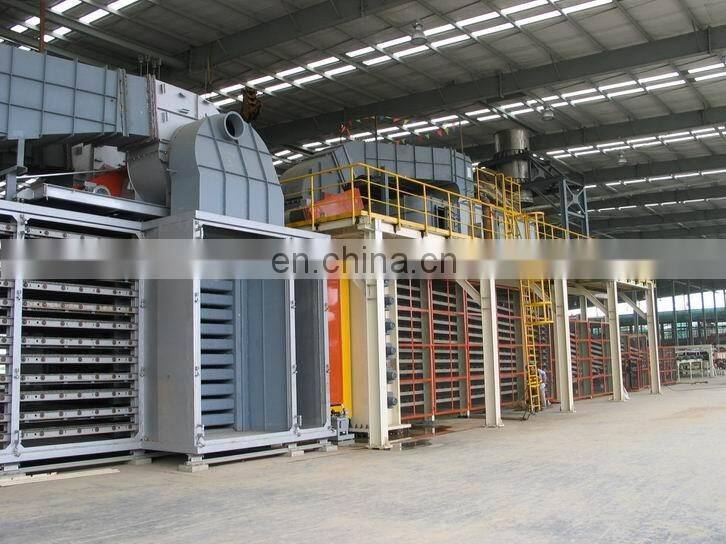

Drying system
Application:to dry the formed gypsum board.
Discharging board and finished board system
Application:Used to convey gypsum board,and cutting to get required size, then edging and stacking.
Any questions please feel free to contact us .
