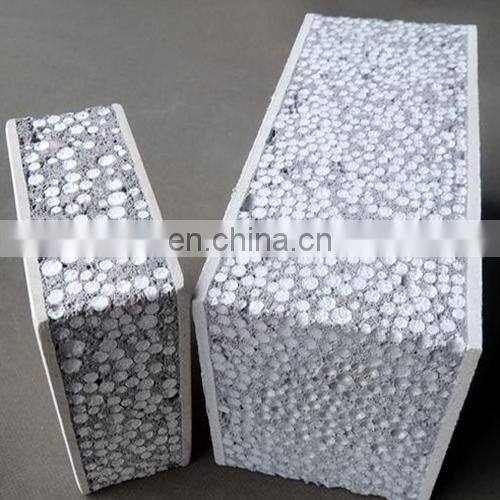

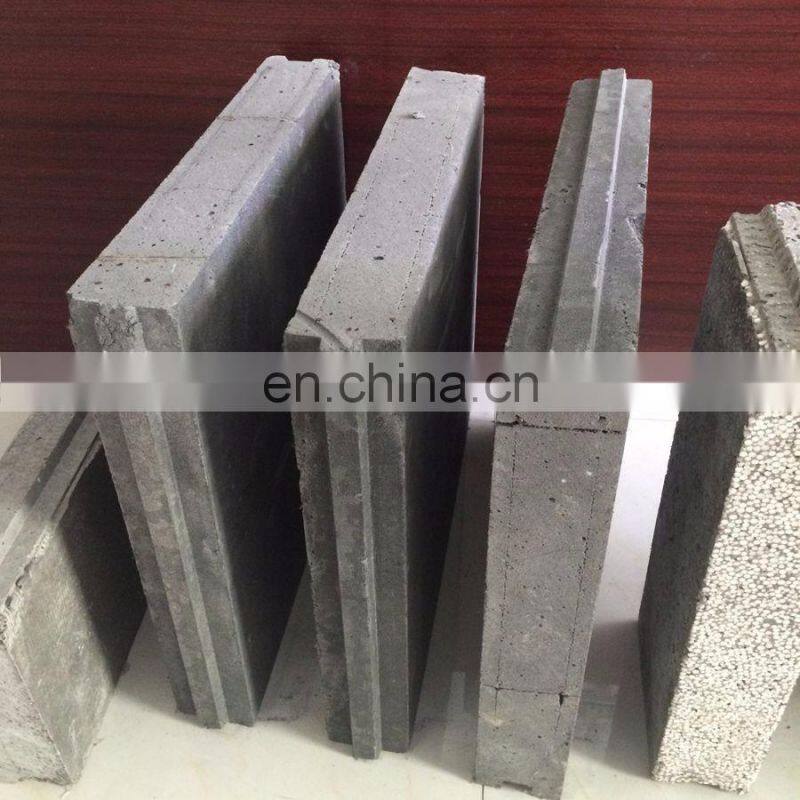

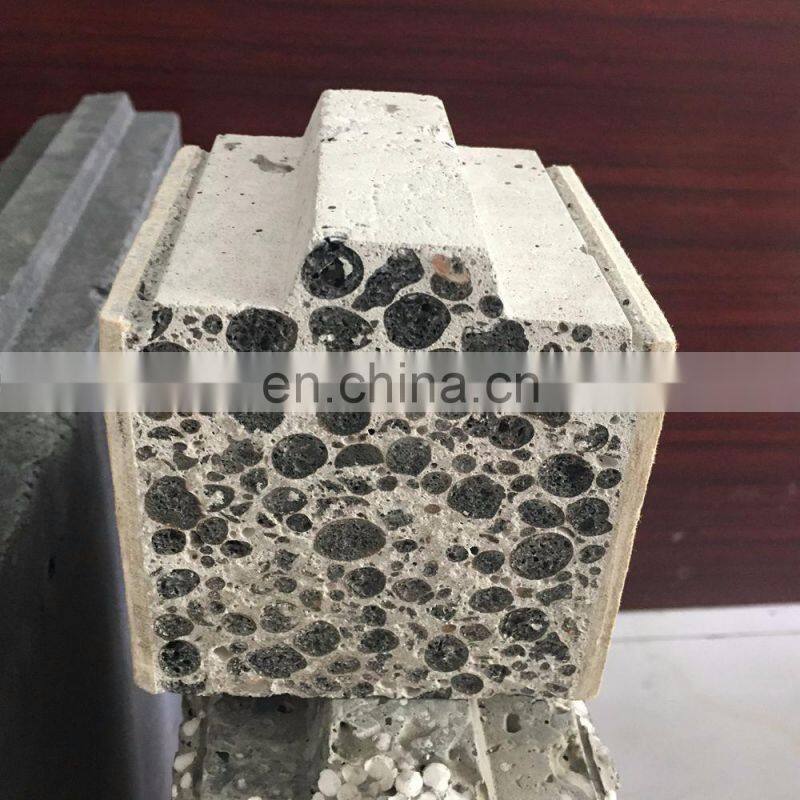

90mm Light Weight and Fast Installation Concrete Eps Cement Sandwich Wall Panel Production Line

Product introduce

EPS cement sandwich panel production line/sandwich panel from china is now totally new and hot in the world. But there are very few suppliers in the world. It is now replacing traditional building materials in the structure. We are specialized in this machine for over 10 years

Unique advantage

1.Double -function mold car ,can produce panel with surface board and without surface board
2.Our machinery has a long service time and low failure rate ,no need repair often
3.We have a short machine testing time 10-15days to help you save raw materials cost
4.Perfect after-sale service systerm , skilled technical training and installation service .
5.Unique production technology formula to help you occupy more market

Machine part: Automatic Material feeding and metering system
Introduce :1.Cement ,flyash,EPS particels will be metering and feeding into the mixer automatically to save the labors and improve working efficiency also it is more environmentally .
2.Sand (or ceramsite /slag /pumice stone other agregate) and additives will be feeding into the mixer by lifting hopper

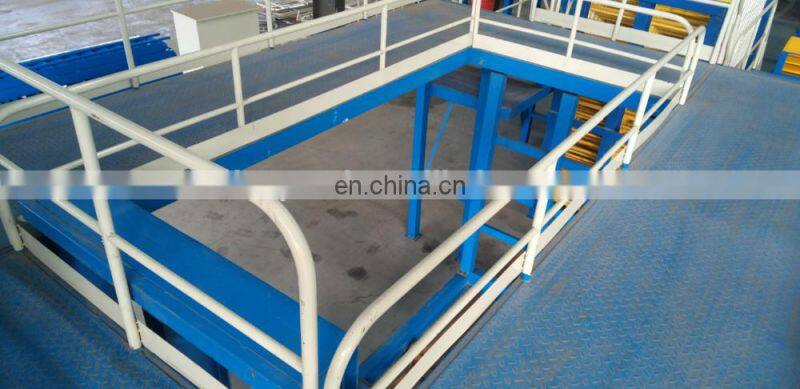

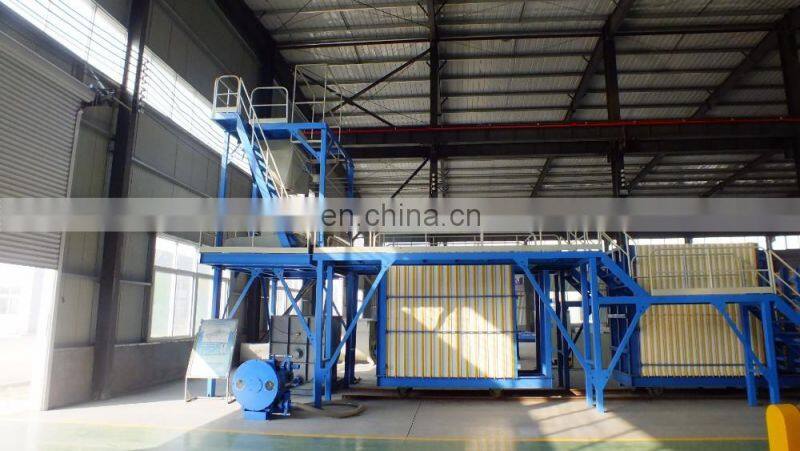

Machine parts :Platform

Platform type : 1.Metering platform,

2.Mixing platform (necessary),

3.Casting platform (necessary),

4.Electric control cabinet platform ,

5.Auxiliary Platform /Calcium Silicate Board installation platform

Besides necessary platform , other platform we can equip as client requirement .

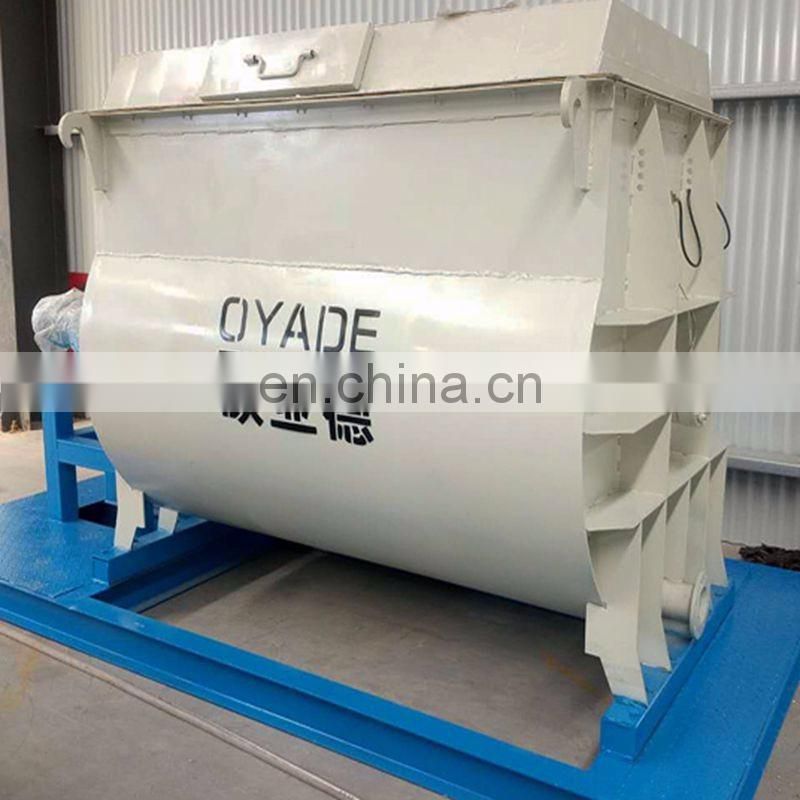

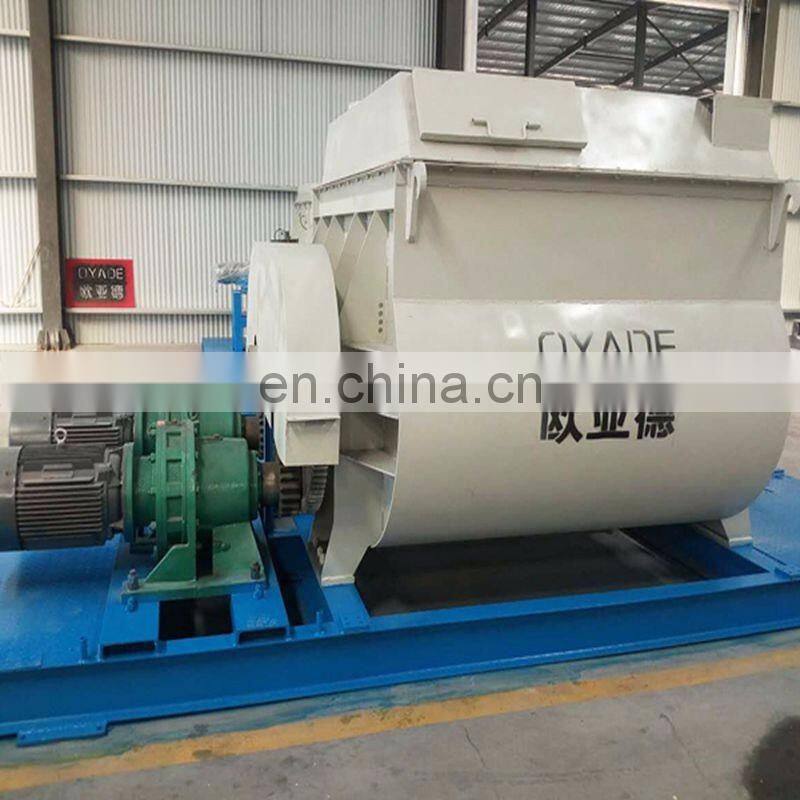

Machine part: Double-shaft mixer
Capacity available  :1.2/1.5/2.0/2.5/3.0/3.5 sqm
Introduce:the mixer capacity is related to the mould car quantity , so we will equip the mixer after confirm the capacity with client . so that can makre sure our proposal is suit to you .

Machine part:Second mixing mixer

Unique feature :If the mould car quantity is more than 10 units ,then we will equip the second mixing mixer, so as to save the mixing time of the first mixer and improve  working efficiency ,increase productivity .

Note: normally use one-shaft mixer ,only large capacity will equip second mixing  if small capacity ,second storage hopper is enough .

Machine part:Pump+pipe

Introduce : After the mixer mix the raw material well then the workers use the pump and pipe to cast the slurry into the mould car

Features:The pump is to make the pouring more even, no need to vibrate, and the working platform will be clean and the material will not be wasted.

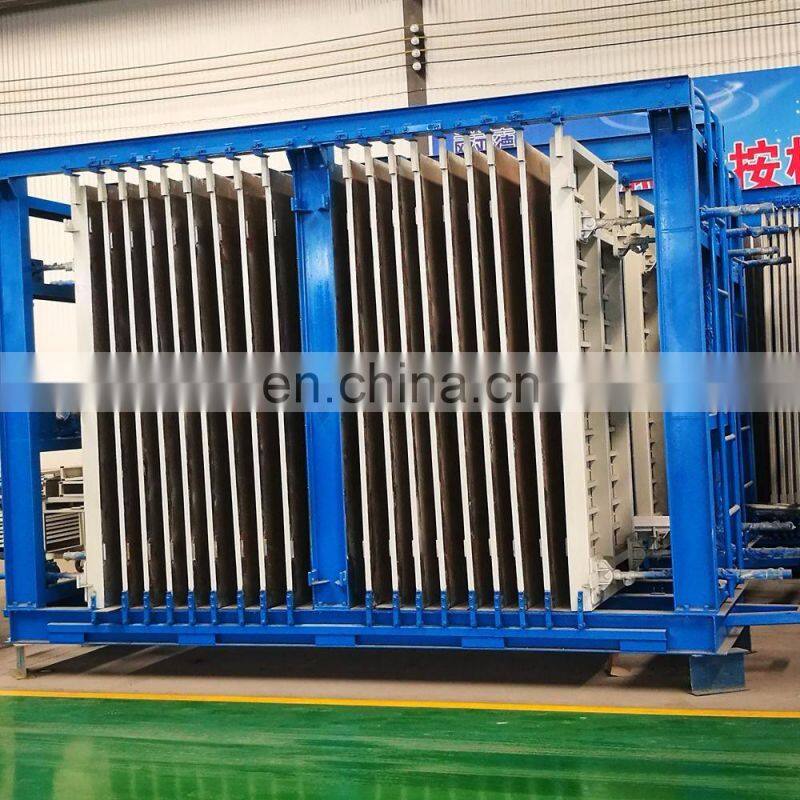

Machine part: Automatic mould car

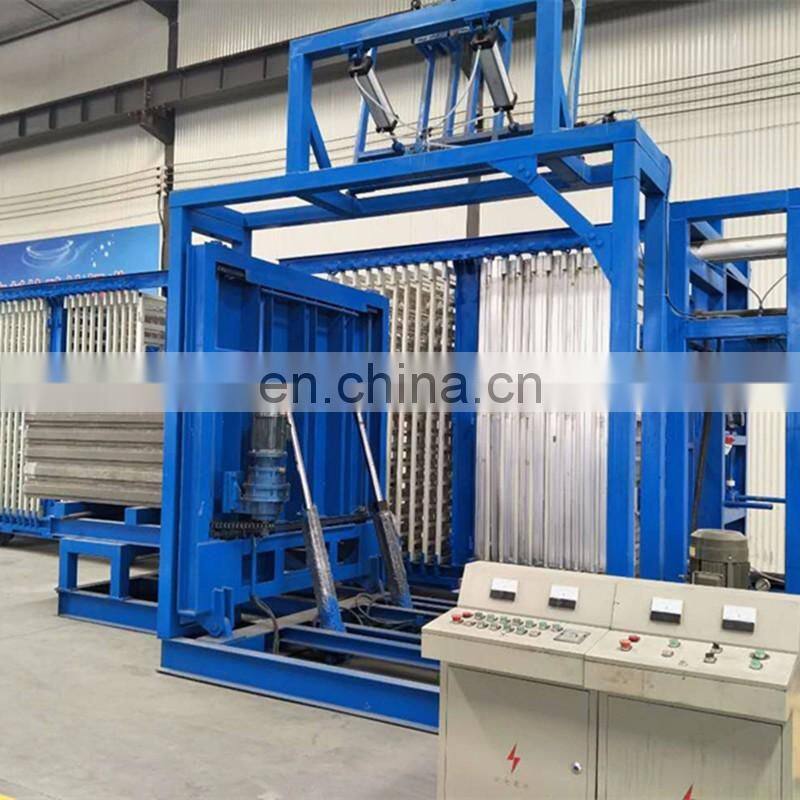

Machine part:Automatic demould system

Introduce : it include two parts automatic opening and closing machine and automatic demoulding machine .

Process:Firstly use opening and closing machine to open the moulds then use the demoulding machine to pull out the panel then put them together and turnove them so as the forklist to move the panels

Machine part:The Boiler system

Introduce:The boiler will supply heat for EPS foam

Feul:coal (need burner),gas ,oil

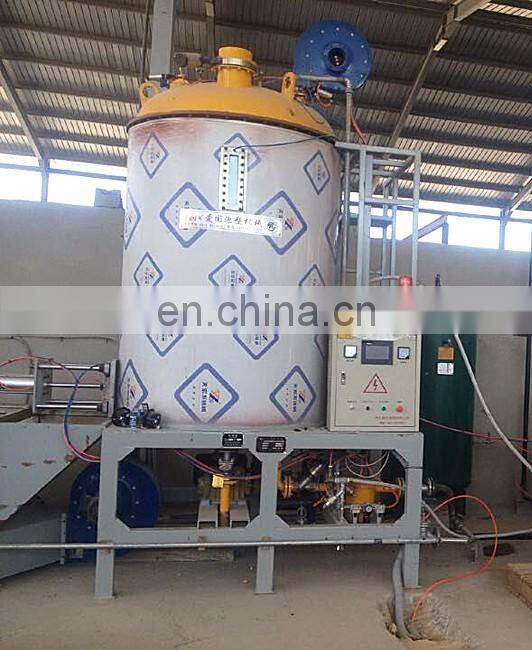

Machine part: EPS foaming machine
