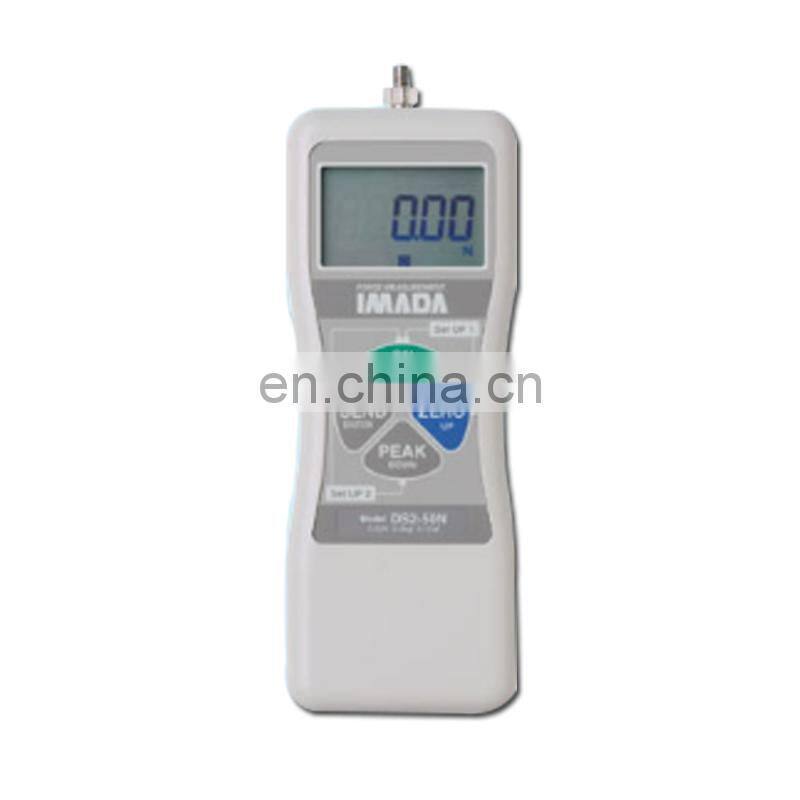

IMADA Digital Tension Gauge
Application:
IMADA Digital Tension Gauge can measure tension, compression force accurately, and durable, is an ideal product for industrial quality control, research and development field strength test. All kinds of models has the zero adjustment for tare weight, and the scale dial is easy to read. Many ranges are offered, calibrated in Pounds, Kilograms, or Newtons.
Standards:
EN-71-1 section 8.4, 8.6, 8.8, 8.13, 8.15, 8.25.2, 8.26.1.1, 8.26.3, 8.34, 8.36
ASTM F963 section 8.9, 8.10, 8.11, 8.16, 8.18.8
16CFR 1500 section 51, 52, 53
ISO 8124-1 section 5.19, 5.24.6, 5.24.7, 5.24.8, 5.31
GB6675-2 section 5.19, 5.24.6, 5.24.7, 5.24.8,
Feature:
1. Simple function and low cost.
2. Ideal for hand-use force measurement due to easy-grip design.
3. Combining the force gauge with a test stand, you can use the unit as a simple testing machine.
4. Over range indication.
5. Able to draw a force-time graph with an optional software.

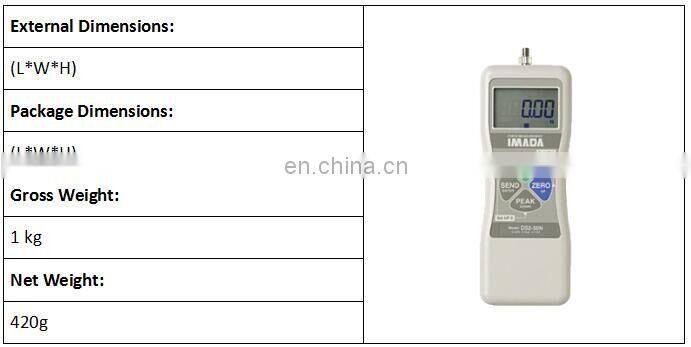

Dimension
Key specification:
| Model | DS2 series |
| Accuracy | +/-0.2% F.S.+/-1 digit |
| Unit of measurement | N/kfg/lbf |
| Display | 4-digit LCD |
| Sampling rate | 1000 data / sec. (max) |
| Display update | 10 times / sec. |
| Safe overload rating | Approx. 200%F.S. |
| Function | Peak hold/Comparator/Display reverse/Damping(2 levels) |
| Power | Internal four AA Ni/MH batteries or external AC adapter |
| Battery life | Approx. 10 hours(Approx.10-hour charge) |
| Operating temperature | 0 to +40 degree Celcius |
| Operating humidity | 20 to 80% RH |
| Weight (approx.) | 420g |
| Output | Digital (RS232C), Mitutoyo Digimatic, analog (+/-1VF.S.) |
Model Table---lbf indication is also possible.
| Model | Capacity | Display | Resolution |
| DS2-2N | 2N (200gf) | 2.000N (200.0gf) | 0.001N (0.1gf) |
| DS2-5N | 5N (200gf) | 5.000N (200.0gf) | 0.001N (0.1gf) |
| DS2-20N | 20N (200gf) | 20.000N (200.0gf) | 0.01N (0.1gf) |
| DS2-50N | 50N (200gf) | 50.000N (200.0gf) | 0.01N (0.1gf) |
| DS2-200N | 200N (200gf) | 200.000N (200.0gf) | 0.1N (0.1gf) |
| DS2-500N | 500N (200gf) | 500.000N (200.0gf) | 0.1N (0.1gf) |
| DS2-1000N | 1000N (200gf) | 1000.000N (200.0gf) | 1N (0.1gf) |
Accessories
| Standards accessories | 1pc | 6 kinds of attachments |
| 1pc | AC adapter | |
| 1pc | Carrying case | |
| 1pc | Instruction manual | |
| 1pc | Inspection certificate |
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our
production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by GESTRE Instruments Co Ltd. Besides,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team
will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product
use training, each of our product provide video training to show you how to install & operate. We can arrange engineer
to train the operation of equipment to customer’s company when you need. Main clients : SGS, BV and Intertek. Our
products are widely recognized and trusted by users.
