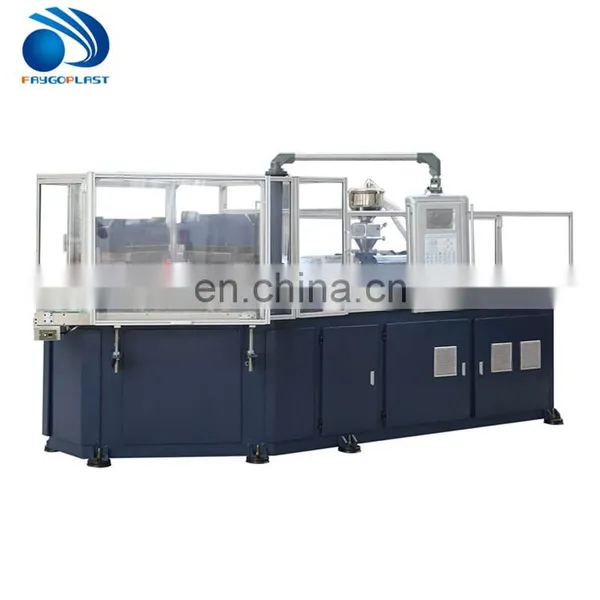

Hot Sale !! HDPE/ LDPE/ PP / PET Plastic Bottle Injection Stretch Blow Moulding Machine With CE Certificate
US$ 40,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Faygo
Place of Origin:
Jiangsu, China
Model Number:
FG40
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai for machine to make bottle plastic
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manufacturers Price Servo Motor 100ton Plastic Injection Blow Moulding Machine for SaleUS$ 40,000 - 80,000MOQ: 1 Set -
45 IBM Injection Blow Molding Machine With High OutputUS$ 45,000 - 45,000MOQ: 1 Set
-
Faygo High Speed Plastic Injection Molding Machine/PET Injection Molding MachineUS$ 50,000 - 80,000MOQ: 1 Set
-
High Performance !Gas Water Bottle PET Bottle Blow Molding Machine PriceUS$ 90,000 - 90,000MOQ: 1 Set
-
Automatic and PET Plastic Processed Water Bottles 5 Liter Making Machine PricesUS$ 5,000 - 6,000MOQ: 1 Set
Brand Name
Faygo
Place of Origin
Jiangsu, China
Model Number
FG40
Certification
CE;GC;IAF;ISO9001:2000
Plastic Type
Thermoplastic
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Automatic
Yes
Opening Stroke
280-1500 Mm
Clamping Force
600KN-16000KN
Injection Rate
300g/s ~ 1200g/s
Injection Weight
101g-6280g, 101g-6280g
Style
Vertical
Type
Injection Blow Molding
Packaging & Shipping
Technical parameters
| Name | Unit | FG40 | FG60 | FG80 | FG100 |
| Screw diameter | mm | 40 | 45 | 50/55 | 60 |
| L/D Ratio | 22:1 | 22:1 | 22:1 | 22:1 | |
| Injection Capacity | 9 | 176 | 260 | 314 | 415 |
| Heating power | KW | 7.5 | 10 | 10.8 | 12 |
| Heating section | 3+N | 3+N | 4+N | 4+N | |
| Injection mould clamping force | KN | 400 | 600 | 800 | 1000 |
| The injection mold opening stroke |
mm | 140 | 140 | 140 | 150 |
| Mould clamping force | KN | 60 | 100 | 120 | 150 |
| Blow mold opening stroke | mm | 140 | 140 | 140 | 150 |
| Injection stroke | mm | 160 | 160 | 160 | 160 |
| Mold Size | mm | 480*340 | 600*390 | 800*400 | 1000*460 |
| Min. Thickness of Mold | mm | 180 | 240 | 280 | 280 |
| Main motor power | KW | 11 | 18.5 | 22 | 30 |
| Reject Stroke | mm | 210 | 230 | 230 | 230 |
| Dry Cycle Time | s | 3.5 | 4 | 4 | 4 |
| Total power | KW | 20 | 30 | 40 | 45 |
| Operating power | % | 52-70 | 52-70 | 52-70 | 52-70 |
| System pressure | Map | 14 | 14 | 14 | 14 |
| Compressed air pressure | MPa | 0.7-1.2 | 0.7-1.2 | 0.7-1.2 | 0.7-1.2 |
| Cooling water pressure | MPa | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Product maximum diameter | mm | 120 | 120 | 120 | 120 |
| Product maximum length | mm | 200 | 220 | 220 | 220 |
| Product volume | ml | 3-800 | 3-800 | 3-1000 | 3-1000 |
| Dimensions | M | 3*1.3*1.7 | 3.5*1.4*1.8 | 4*1.6*2 | 4.5*1.8*2 |
| Equipment weight | Ton | 3.5 | 5 | 8 | 10 |

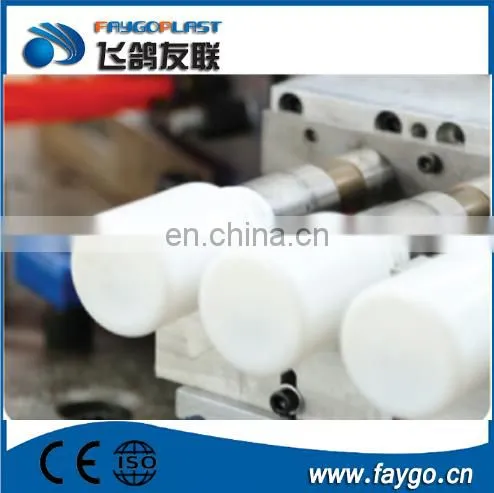

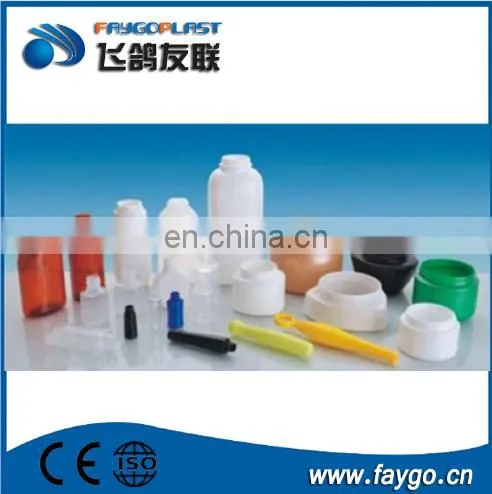

Injection Molding Machine samples:
Equipment Productive Flow Sheet
1,STOCK PREPARATION/INJECTION DEVICE
2,HOT-FLOW CHANNEL
3,ENTIRE BAR
4,BOTTLE BLANK
5,INJECTION MOLD
6,INJECTION STATION
7,BLOW STATION
8,BLOW MOLDING
9,STRIPPER STATION
