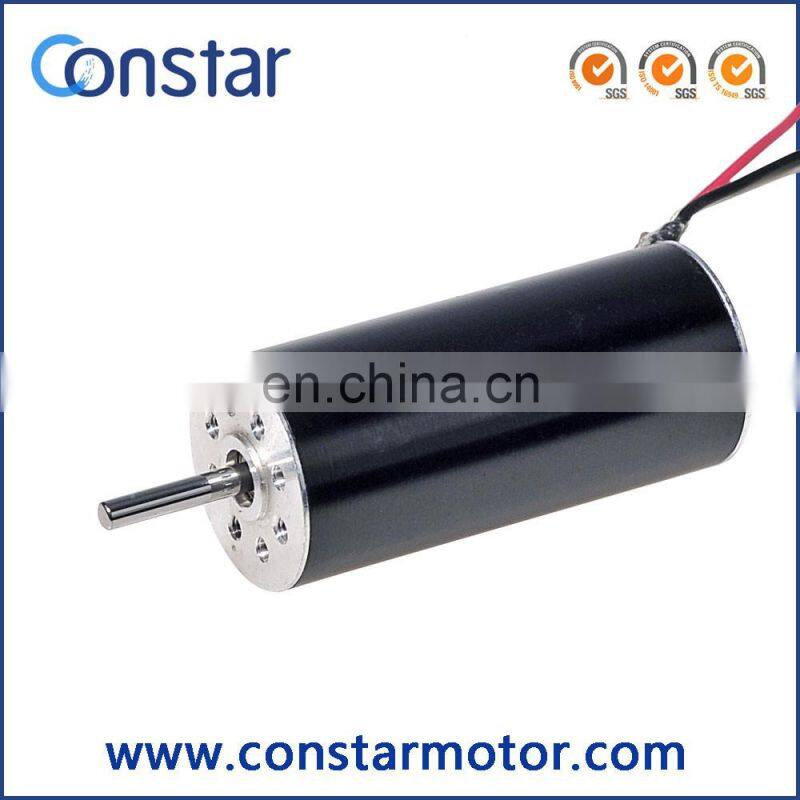

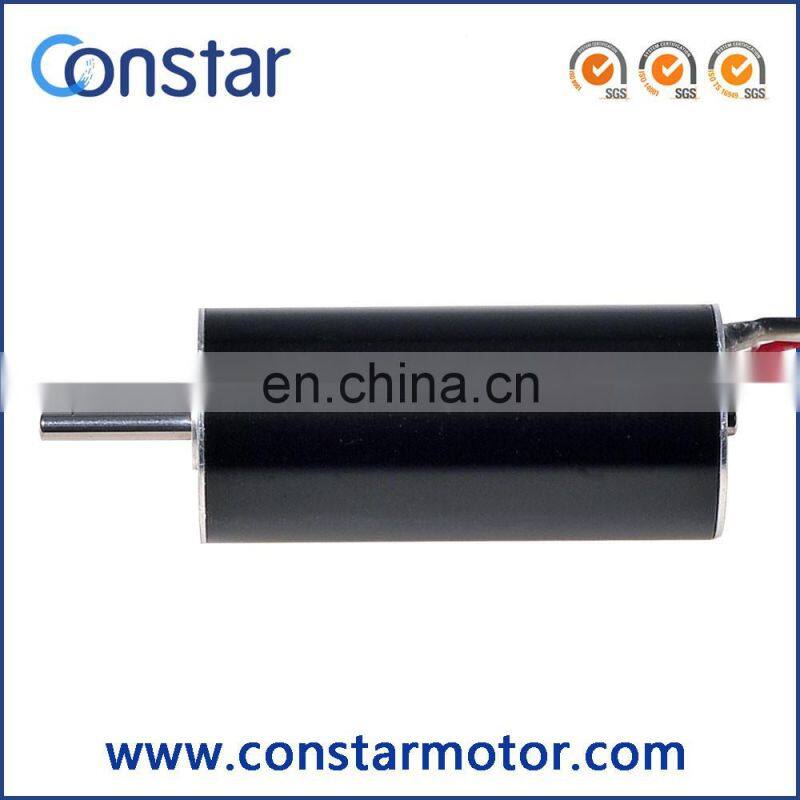

16MM High Speed High Torque Brushless DC Motor 12V
US$ 5 - 45
/ Piece
2 Pieces(Min. Order)
- Shenzhen or HK
- T/T Credit Card
You May Like
-
Low cost High Torque 3600rpm electric brushless dc motor 36v
-
China Electric Small Big High Low Torque Speed Price 3.7V 7.4V 12V14.8V 24V 36V brushless motor quadcopter
-
China electric BLCD 12v 24w brushless dc motor
-
High speed 30000rpm electric BLDC motor 48v brushless dc motor
-
Constar 35mm outer rotor 12v brushless dc motor 10000rpm
-
High Torque 1hp 48v brushless dc motor
Product Details
| Brand Name | Constar | Place of Origin | Guangdong, China | |
| Model Number | 1635ZWWN-1-12.0 | Type | Micro Motor | |
| Certification | CE, ROHS | Torque | 2.6mNm | |
| Usage | Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Totally Enclosed | |
| Continuous Current(A) | 1.4A | Speed(RPM) | 45000rpm | |
| Commutation | Brushless |
Product Description
16MM High Speed High Torque Brushless DC Motor 12V
| |||
| CONSTAR MICROMOTOR | |||
| | | |
| Brushless DC Motor | DC Coreless Motor | Gearmotor | Sonic Motor |
Applications
Medical equipment, industrial equipment, navigation models, electricaltools and mini household appliances
Specifications
The following are our standard products, we also provide customized products and service.
| -1-12.0 | |||
| 1 | Voltage | V | 12 |
| 2 | Terminal resistance | Ω | 0.35 |
| 3 | No-load speed | rpm | 45000 |
| 4 | No-load current | A | 0.35 |
| 5 | Nominal torque | mNm | 2.6 |
| 6 | Nominal speed | rpm | 43500 |
| 7 | Nominal current | A | 1.4 |
| 8 | Max. output power | W | 100 |
| 9 | Max. efficiency | % | 81 |
| 10 | Back-EMF constant | mV/rpm | 0.26 |
| 11 | Torque constant | mNm/A | 2.5 |
| 12 | KV Value | rpm/V | 3750 |
| 13 | Speed/torque gradient | rpm/mNm | 530 |
| 14 | Rotor inertia | gcm2 | 1.5 |
| 15 | Weight | g | 40 |
Options
Lead wires length, shaft length, special coils, gearheads,bearing type, driver,encoder.

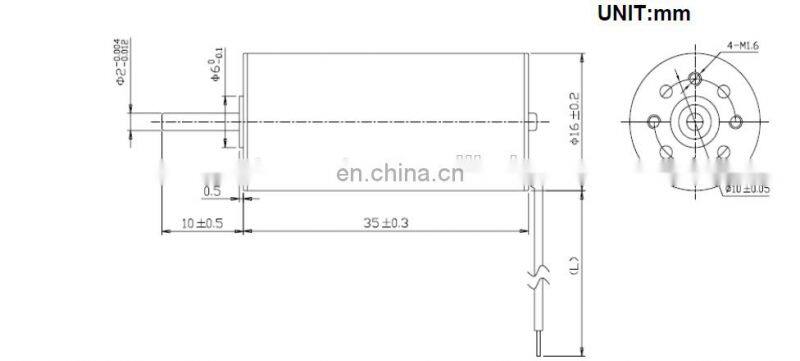

Outline Drawing

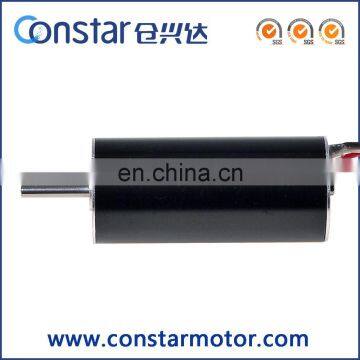

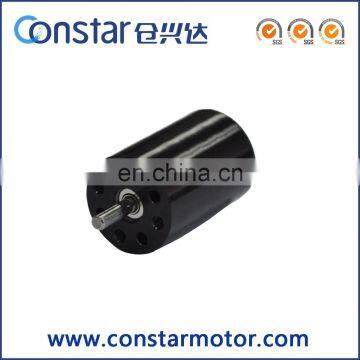

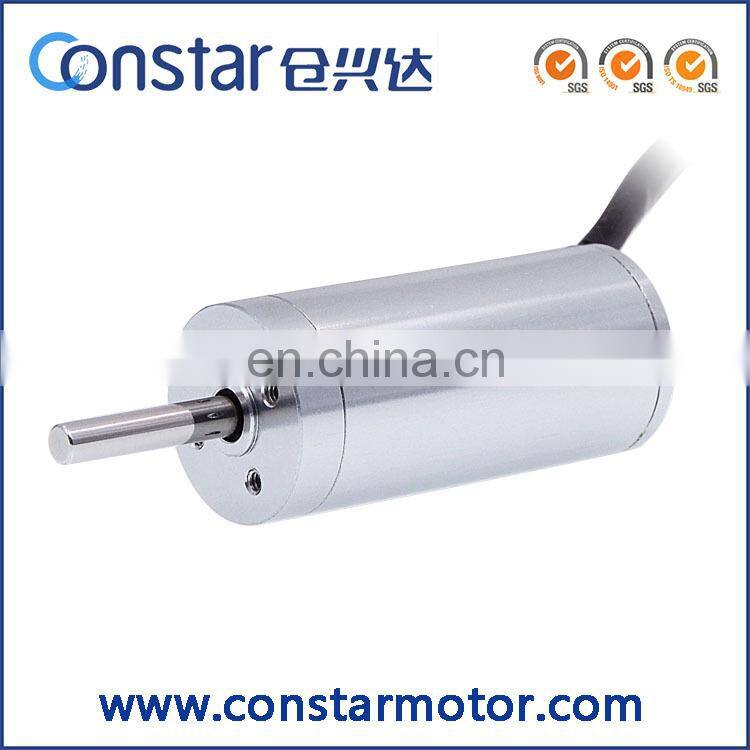

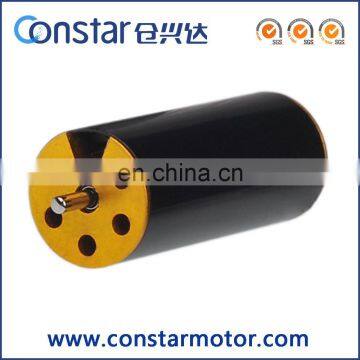

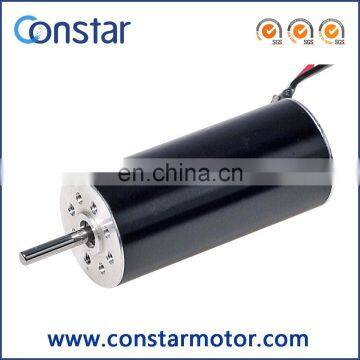

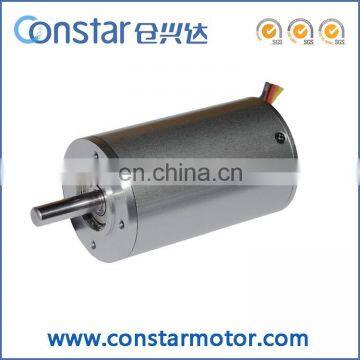

Product Show
Customized Motor
Customized Motor Solutions
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
Other Item
| Series | Dimension (mm) | Voltage (V) | No-load Speed (rpm) | No-Load Current (mA) | KV Value (rpm/V) | Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 1215ZWWN | Φ12*15 | 3.6 | 35000 | 300 | 9720 | 0.93 |
| Φ12*15 | 4.5 | 14500 | 100 | 3220 | 2.62 | |
| Φ12*15 | 7.4 | 42500 | 200 | 5470 | 1.55 | |
| 1220ZWWN | Φ12*20 | 5 | 17500 | 210 | 3500 | 2.5 |
| Φ12*20 | 6 | 17200 | 150 | 2900 | 3.0 | |
| Φ12*20 | 7.4 | 23000 | 100 | 3100 | 2.9 | |
| 1230ZWWN | Φ12*30 | 3.7 | 18000 | 230 | 4860 | 1.9 |
| Φ12*30 | 9 | 18000 | 150 | 2000 | 4.6 | |
| Φ12*30 | 12 | 11500 | 50 | 960 | 9.6 | |
| 1329ZWWN | Φ13*29 | 12 | 25000 | 100 | 2100 | 4.3 |
| 1635ZWWN | Φ16*35 | 12 | 45000 | 350 | 3750 | 2.5 |
| 2030ZWWN | Φ20*30 | 12 | 43300 | 370 | 3600 | 2.6 |
| Φ20*30 | 12 | 7000 | 100 | 580 | 14.9 | |
| Φ20*30 | 12 | 9200 | 250 | 770 | 11 | |
| 2040ZWWN | Φ20*40 | 9 | 6700 | 200 | 745 | 12.1 |
| Φ20*40 | 12 | 15000 | 250 | 1250 | 7.5 | |
| Φ20*40 | 12 | 8000 | 360 | 670 | 13.4 | |
| 2050ZWWN | Φ20*50 | 12 | 6000 | 160 | 500 | 18 |
