12v High Rpm Inrunner Magnet rc Car Brushless Motors
US$ 8 - 40
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Constar
Place of Origin:
Guangdong, China
Model Number:
B1230
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
23mm~55mm Permanent Magnet Outrunner BLDC MotorUS$ 5 - 45MOQ: 5 Pieces -
China Supplier 17mm 10v 26000rpm MINI DC Brushless Out Rotor MotorUS$ 5 - 50MOQ: 5 Pieces
-
Ironless Brushless DC Motor 1230ZWWN 12V 42000RPMUS$ 1 - 100MOQ: 1 Piece
-
1230 1090KV Brushless Inrunner Motor for RC Motorcycle BoatUS$ 5 - 50MOQ: 2 Pieces
-
Diameter 28mm Length 26mm Outrunner Brushless Aeromodelling MotorUS$ 5 - 40MOQ: 5 Pieces
Brand Name
Constar
Place of Origin
Guangdong, China
Model Number
B1230
Type
Micro Motor
Certification
CE, ROHS
Torque
5.9mNm
Usage
Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Totally Enclosed
Continuous Current(A)
0.67A
Speed(RPM)
11500rpm
Commutation
Brushless
12v high rpm inrunner magnet rc car brushless motors
| CONSTARMICROMOTOR | |||
|
|
|
|
| BRUSHLESS DC MOTOR | DC CORELESS MOTOR | DC GEARMOTOR | SERVO MOTOR |
Applications
Medical equipment, industrial equipment, navigation models, electricaltools and mini household appliances
Specifications
The following are our standard products, we also provide customized products and service.
| -14-12.0 | -10-9.0 | -15-3.7 | |||
| 1 | Voltage | V | 12 | 9 | 3.7 |
| 2 | Terminal resistance | Ω | 9 | 2.4 | 0.6 |
| 3 | No-load speed | rpm | 11500 | 18000 | 18000 |
| 4 | No-load current | A | 0.05 | 0.15 | 0.23 |
| 5 | Nominal torque | mNm | 5.9 | 4.8 | 3.6 |
| 6 | Nominal speed | rpm | 6000 | 12800 | 12800 |
| 7 | Nominal current | A | 0.67 | 1.2 | 2.2 |
| 8 | Max. output power | W | 3.7 | 7.8 | 5.9 |
| 9 | Max. efficiency | % | 65 | 64 | 67 |
| 10 | Back-EMF constant | mV/rpm | 1.0 | 0.5 | 0.2 |
| 11 | Torque constant | mNm/A | 9.6 | 4.6 | 1.9 |
| 12 | KV Value | rpm/V | 960 | 2000 | 4860 |
Options
Lead wires length, shaft length, special coils, gearheads,bearing type, driver,encoder

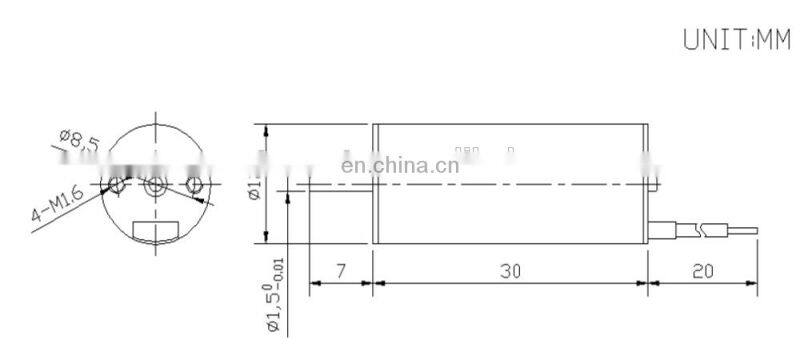

Outline Drawing

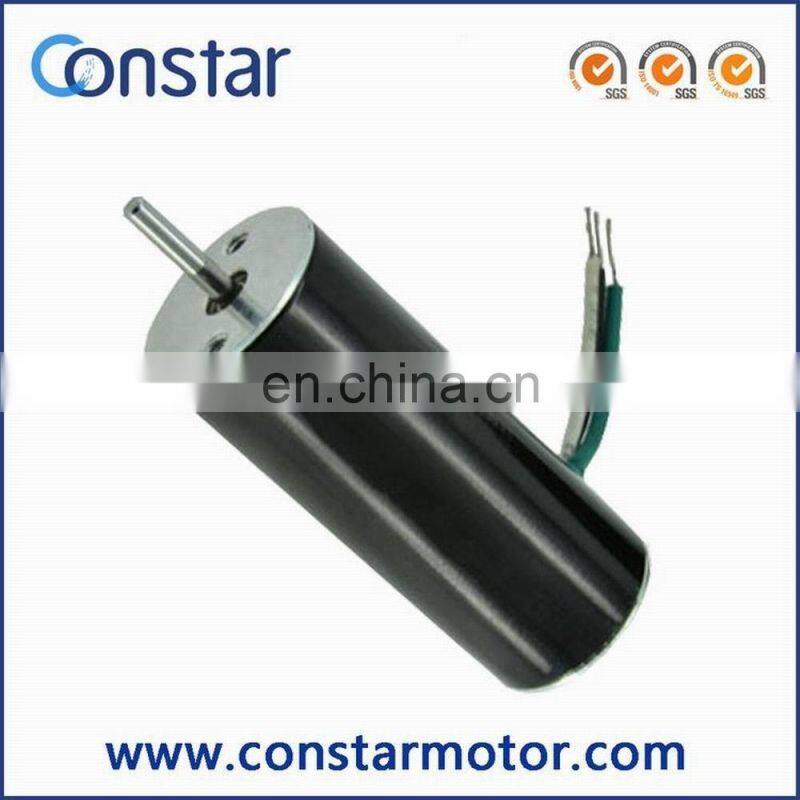

Product Show
Customized Motor
Customized Motor Solutions:CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
Other Item
| Series | Dimension (mm) |
Voltage (V) |
No-load Speed (rpm) |
No-Load Current (mA) |
KV Value (rpm/V) |
Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 1215ZWWN | Φ12*15 | 3.6 | 35000 | 300 | 9720 | 0.93 |
| Φ12*15 | 4.5 | 14500 | 100 | 3220 | 2.62 | |
| Φ12*15 | 7.4 | 42500 | 200 | 5470 | 1.55 | |
| 1220ZWWN | Φ12*20 | 5 | 17500 | 210 | 3500 | 2.5 |
| Φ12*20 | 6 | 17200 | 150 | 2900 | 3.0 | |
| Φ12*20 | 7.4 | 23000 | 100 | 3100 | 2.9 | |
| 1230ZWWN | Φ12*30 | 3.7 | 18000 | 230 | 4860 | 1.9 |
| Φ12*30 | 9 | 18000 | 150 | 2000 | 4.6 | |
| Φ12*30 | 12 | 11500 | 50 | 960 | 9.6 | |
| 1329ZWWN | Φ13*29 | 12 | 25000 | 100 | 2100 | 4.3 |
| 1635ZWWN | Φ16*35 | 12 | 45000 | 350 | 3750 | 2.5 |
| 2030ZWWN | Φ20*30 | 12 | 43300 | 370 | 3600 | 2.6 |
| Φ20*30 | 12 | 7000 | 100 | 580 | 14.9 | |
| Φ20*30 | 12 | 9200 | 250 | 770 | 11 | |
| 2040ZWWN | Φ20*40 | 9 | 6700 | 200 | 745 | 12.1 |
| Φ20*40 | 12 | 15000 | 250 | 1250 | 7.5 | |
| Φ20*40 | 12 | 8000 | 360 | 670 | 13.4 | |
| 2050ZWWN | Φ20*50 | 12 | 6000 | 160 | 500 | 18 |
