Home > Industrial Equipment & Components > Power Transmission Parts > Gear > Constar 14.8V 38mm Brushless dc Quadcopter Motor
US$ 5 - 50
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
Constar
Place of Origin:
Guangdong, China
Model Number:
3825ZWW
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN OR HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8724ZWW BLDC Motor High Efficient 36Volt Multirotor Dc MotorUS$ 5 - 50MOQ: 2 Pieces -
Brushless dc Motor 24v 340w,external Rotor Electric Brushless MotorUS$ 5 - 50MOQ: 5 Pieces
-
10000rpm,28mm,300W,high Power Bldc Motor,used in DronesUS$ 5 - 50MOQ: 2 Pieces
-
12v High Rpm Inrunner Magnet rc Car Brushless MotorsUS$ 8 - 40MOQ: 5 Pieces
-
23mm~55mm Permanent Magnet Outrunner BLDC MotorUS$ 5 - 45MOQ: 5 Pieces
Brand Name
Constar
Place of Origin
Guangdong, China
Model Number
3825ZWW

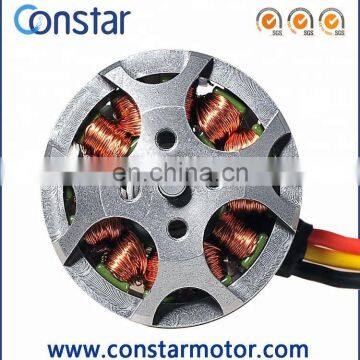

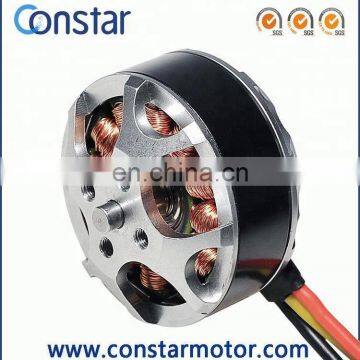

Constar 14.8V 38mm brushless dc quadcopter motor
| |||
| CONSTAR MICROMOTOR | |||
| | | |
| Brushless DC Motor | DC Coreless Motor | Gearmotor | Sonic Motor |
Applications
UAV, Aeromodelling, etc.
Specifications
The following are our standard products, we also provide customized products and service.
| -1-14.8 | |||
| 1 | Voltage | V | 14.8 |
| 2 | Terminal resistance | Ω | 0.1 |
| 3 | No-load speed | rpm | 10400 |
| 4 | No-load current | A | 0.56 |
| 5 | Nominal torque | mNm | 230 |
| 6 | Nominal speed | rpm | 9200 |
| 7 | Nominal current | A | 17.5 |
| 8 | Max. output power | W | 544 |
| 9 | Max. efficiency | % | 88 |
| 10 | Back-EMF constant | mV/rpm | 1.42 |
| 11 | Torque constant | mNm/A | 13.5 |
| 12 | KV Value | rpm/V | 700 |
| 13 | Speed/torque gradient | rpm/mNm | 5.2 |
| 14 | Rotor inertia | gcm2 | 38 |
| 15 | Weight | g | 72 |
Options
Lead wires length, Shaft length, Special coils, Gearheads, Bearing type, Encoder, Driver
Outline Drawing

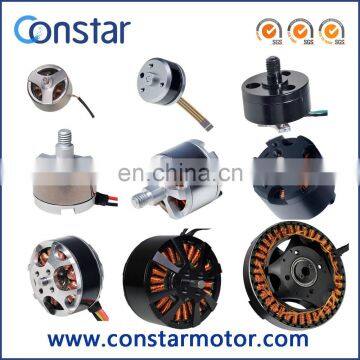

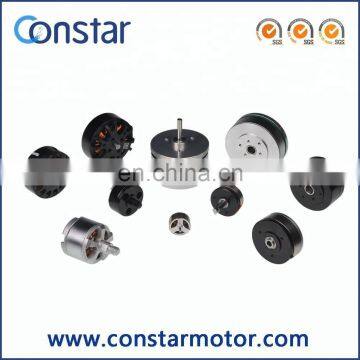

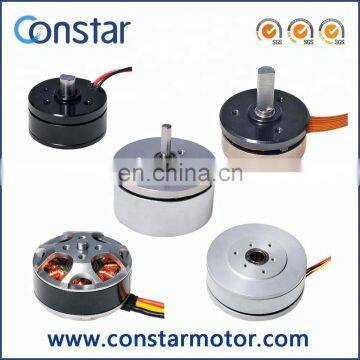

Product Show
Customized Motor
Customized Motor Solutions
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!

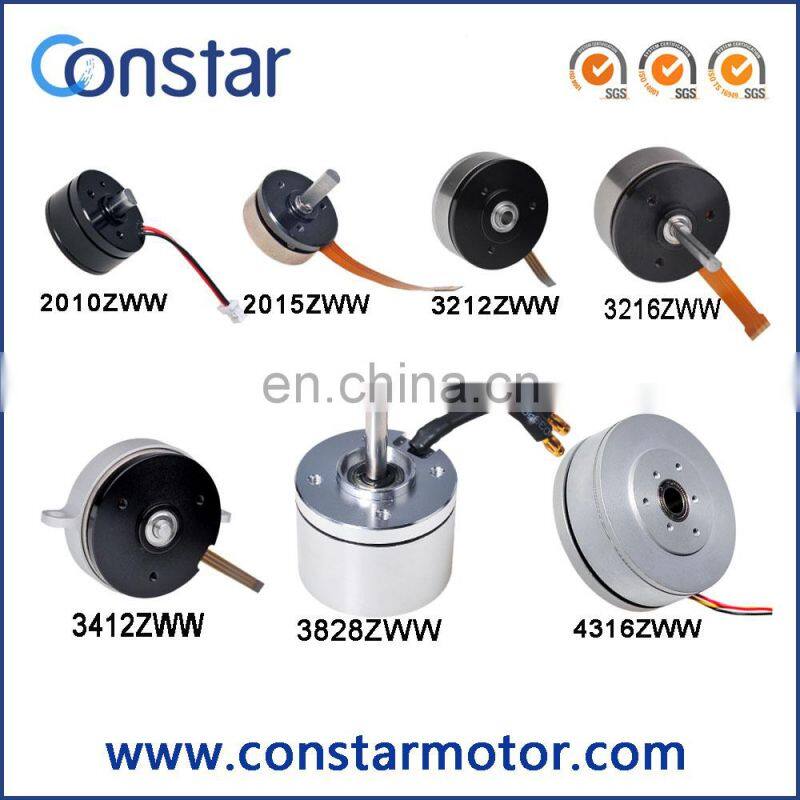

Other Item
| Series | Dimension (mm) | Voltage (V) | No-load Speed (rpm) | No-Load Current (mA) | KV Value (rpm/V) | Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 1308ZWW | Φ13*8 | 3.7 | 39000 | 700 | 10500 | 0.85 |
| 1511ZWW | Φ15*11 | 7.4 | 35000 | 400 | 4700 | 1.97 |
| 1709ZWW | Φ17*9 | 10 | 26000 | 110 | 2600 | 3.5 |
| 1814ZWW | Φ18*14 | 6.4 | 18500 | 270 | 2900 | 3.3 |
| Φ18*14 | 6.4 | 22000 | 350 | 3440 | 2.7 | |
| 1816ZWW | Φ18*16 | 7.4 | 12000 | 160 | 1620 | 5.8 |
| 2010ZWW | Φ20*10 | 10 | 24000 | 110 | 2400 | 3.9 |
| 2015ZWW | Φ20*15 | 12 | 11300 | 80 | 940 | 9.9 |
| 2316ZWW | Φ23*16 | 12 | 19500 | 450 | 1625 | 5.8 |
| 2414ZWW | Φ24*14 | 12 | 6400 | 40 | 530 | 16.7 |
| 2814ZWW | Φ28*14 | 11.1 | 22000 | 650 | 2000 | 4.8 |
| 2820ZWW | Φ28*20 | 10.5 | 13500 | 450 | 1290 | 7.4 |
| 2824ZWW | Φ28*24 | 11.1 | 10200 | 400 | 920 | 10.3 |
| 2826ZWW | Φ28*26 | 14.8 | 13500 | 550 | 910 | 10.4 |
| 2828ZWW | Φ28*28 | 14.8 | 13000 | 650 | 880 | 10.8 |
| 2830ZWW | Φ28*30 | 14.8 | 13300 | 750 | 900 | 10.6 |
| 2914ZW | Φ29*14 | 24 | 5500 | 100 | 230 | 40 |
| 2914ZWW | Φ29*14 | 24 | 5500 | 100 | 230 | 40 |
| 3212ZWW | Φ32*12 | 12 | 22000 | 500 | 1833 | 5.0 |
| 3216ZWW | Φ32*16 | 12 | 3200 | 500 | 270 | 35 |
| 3517ZWW | Φ35*17 | 24 | 4450 | 60 | 185 | 50 |
| 3518ZWW | Φ35*18 | 12 | 10000 | 500 | 830 | 11.3 |
| 3825ZWW | Φ38*25 | 14.8 | 10400 | 560 | 700 | 13.5 |
| 3828ZWW | Φ38*28 | 24 | 29000 | 700 | 1200 | 7.8 |
| 4316ZWW | Φ43*16 | 12 | 4350 | 180 | 360 | 26 |
| 4321ZWW | Φ43*21 | 24 | 6700 | 200 | 280 | 34 |
| 4326ZWW | Φ43*26 | 24 | 6100 | 300 | 260 | 37 |
| 4834ZWW | Φ48*34 | 22.2 | 10400 | 1300 | 470 | 20 |
| 6133ZWW | Φ61*33 | 22.2 | 6400 | 930 | 290 | 33 |
| 8724ZWW | Φ87*24 | 36 | 3600 | 200 | 100 | 95 |
