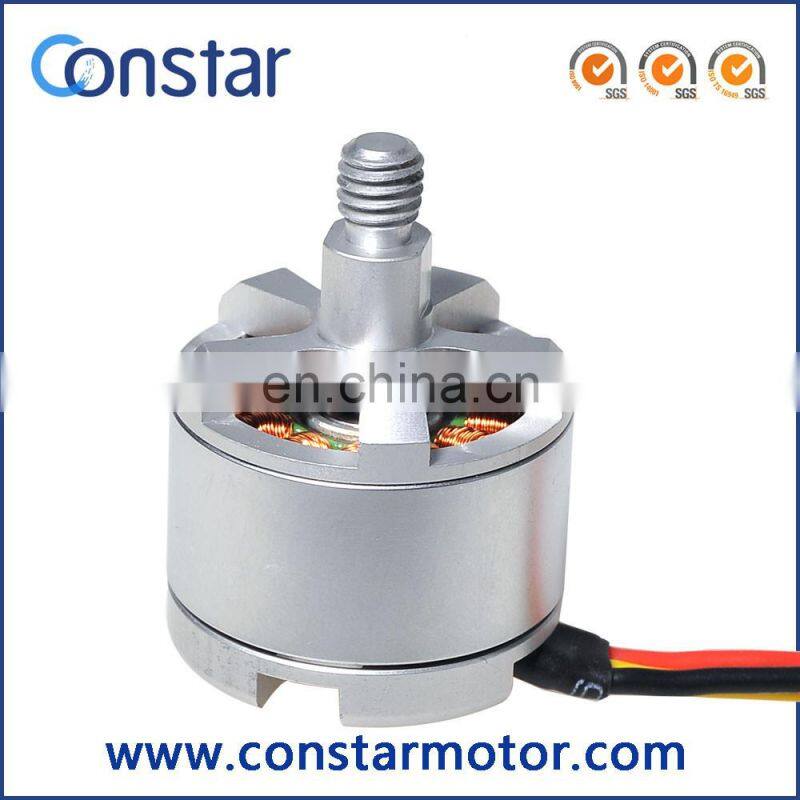

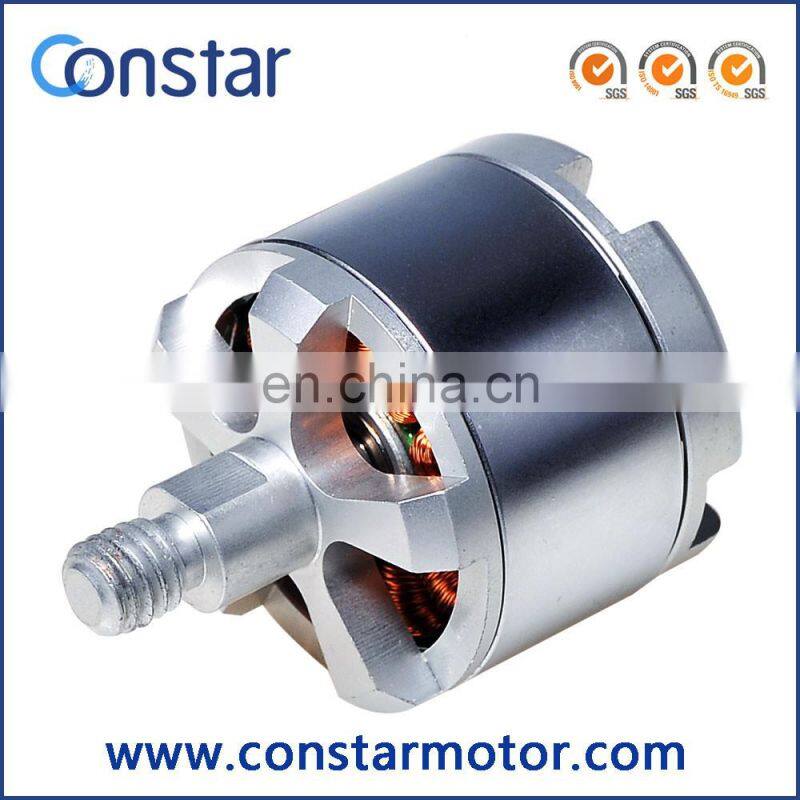

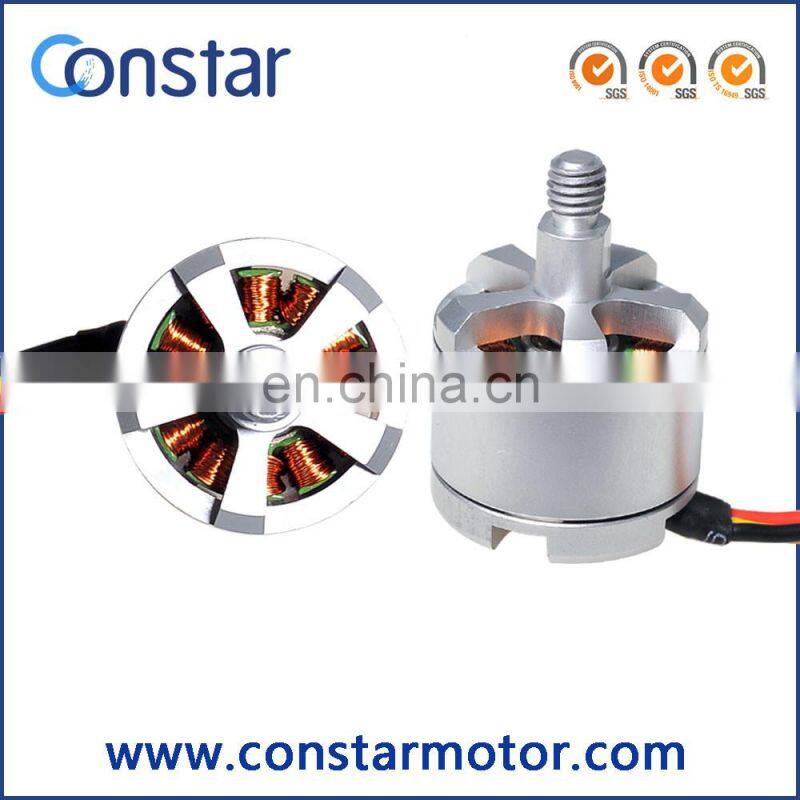

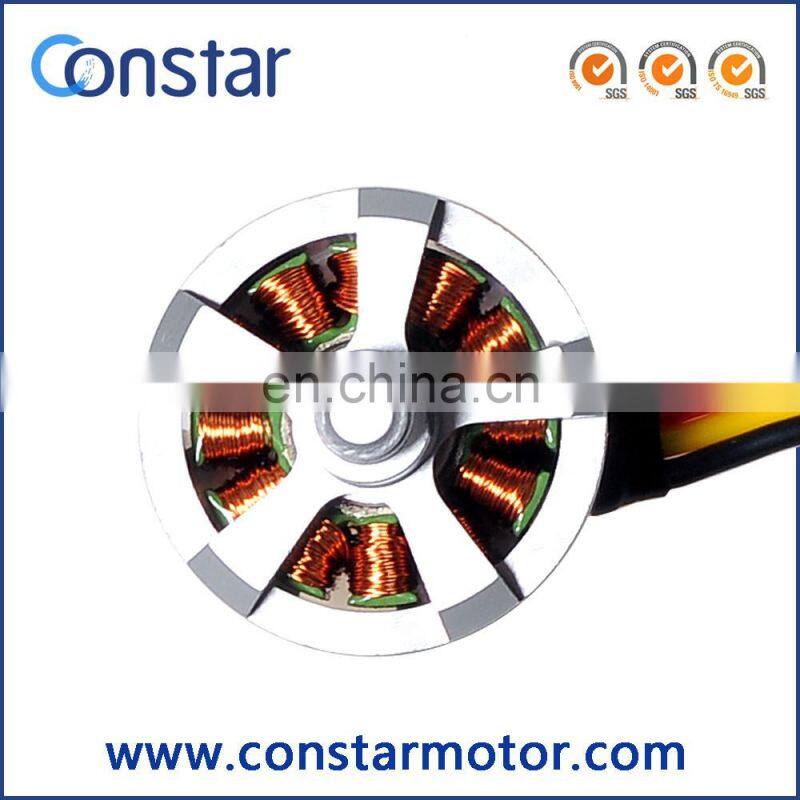

950KV Outrunner Brushless Motor for RC Aircraft
950KV Outrunner Brushless Motor for RC Aircraft
| CONSTAR MICROMOTOR | ||
![]() |
![]() |
![]() |
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
![]() |
![]() |
![]() |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
1. Applications:Medical equipment, industrial equipment, navigation models, electricaltools and mini household appliances
2. Operating Environment:-40~+100°C
3. Characteristics :
The following are our standard products, we also provide customized products and service.
| 1 | Voltage | V | 14.8 |
| 2 | Terminal resistance | Ω | 0.14 |
| 3 | No-load speed | rpm | 13500 |
| 4 | No-load current | A | 0.55 |
| 5 | Nominal torque | mNm | 99 |
| 6 | Nominal speed | rpm | 11800 |
| 7 | Nominal current | A | 10 |
| 8 | Max. output power | W | 387 |
| 9 | Max. efficiency | % | 86 |
4. Options:Lead wires length, shaft length, special coils, gearheads,bearing type, driver,encoder
5,Photo:

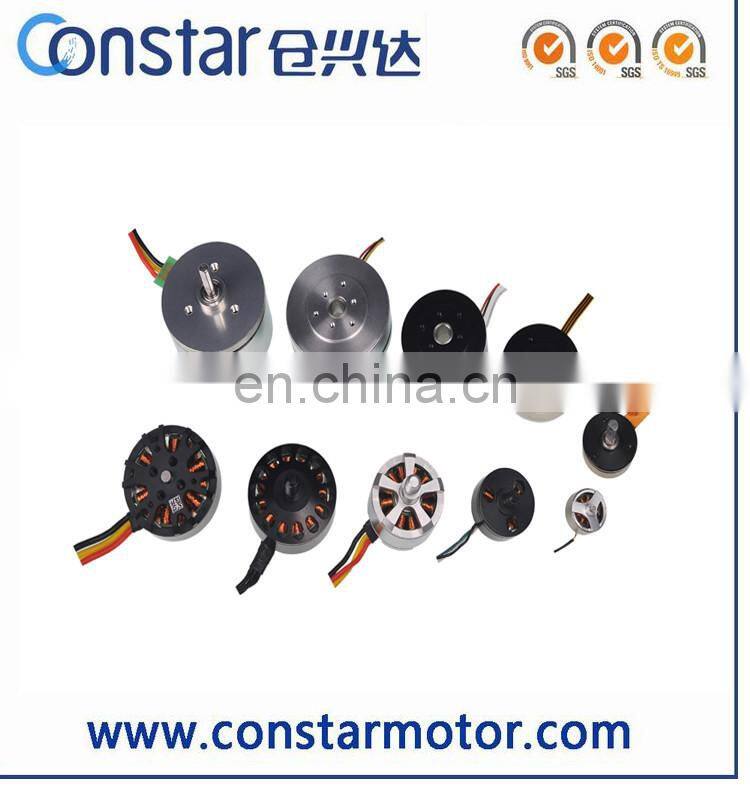

6,Other Item:
950KV Outrunner Brushless Motor for RC Aircraft
