Home > Electrical & Electronics > Electric Motor > DC Motor > 1230 1090KV Brushless Inrunner Motor for RC Motorcycle Boat

1230 1090KV Brushless Inrunner Motor for RC Motorcycle Boat

Name: 1230 1090KV Brushless Inrunner Motor for RC Motorcycle Boat
Brand: CONSTAR
SKU: 166780241
Availability: InStock

Constar Micromotor Co., Ltd.

US$ 5 - 50 MOQ: 2 Pieces

Key Specifications

Get Latest Price

Brand Name:

CONSTAR

Place of Origin:

Guangdong, China

Model Number:

1230ZWWN

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name CONSTAR

Place of Origin Guangdong, China

Model Number 1230ZWWN

Type Micro Motor

Certification CE, ROHS

Torque 4.8mNm

Construction Permanent Magnet

Efficiency IE 1

Continuous Current(A) 1.2A

Speed(RPM) 18000rpm

Commutation Brushless

1230 1090KV brushless inrunner motor for RC motorcycle boat

CONSTAR MICROMOTOR

PRECISION DC CORELESS MOTOR	BRUSHLESS DC MOTOR	SERVO MOTOR

GEARMOTOR	STEP MOTOR	MINI CORELESS MOTOR

1. Applications:Medical equipment, industrial equipment, navigation models, electricaltools and mini household appliances

2. Operating Environment:-40~+100°C

3. Characteristics :

...

Series	Performance Code	Dimension (mm)	Voltage (V)	No-load Speed (rpm)	No-load Current (mA)	Load Torque (mNm)	Load Speed (rpm)	Load Current (mA)	KV Value (rpm/V)
1230ZWWN	-2B	Φ12*30	12	52000	500	4.90	42000	3200	4300
	-10	Φ12*30	9	18000	130	4.90	12500	1200	2000
	-14	Φ12*30	12	23000	50	1.96	15300	450	1920
	-15	Φ12*30	3.7	18000	200	1.96	15000	1200	4860

4. Options:Lead wires length, shaft length, special coils, gearheads,bearing type, driver

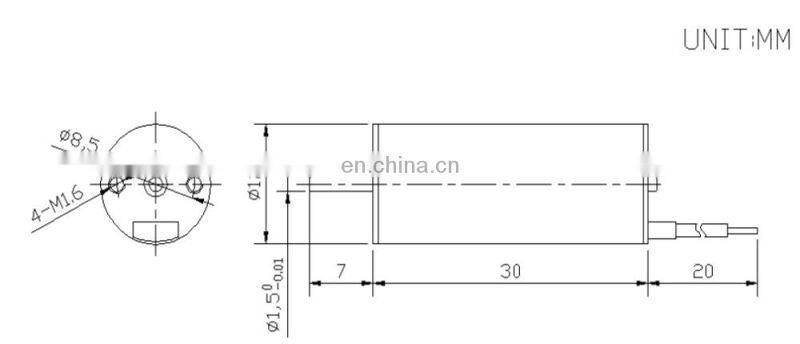

5,Outline Drawing:

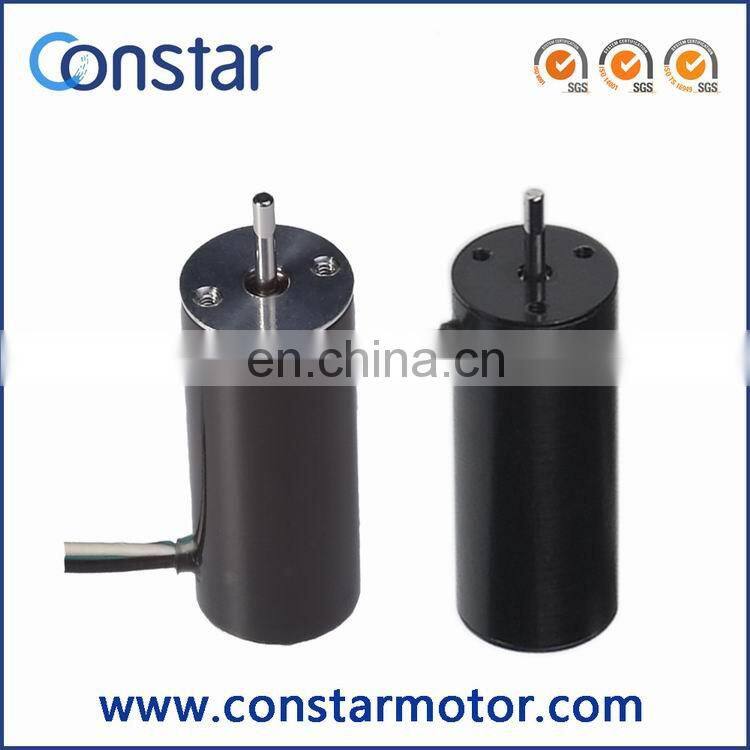

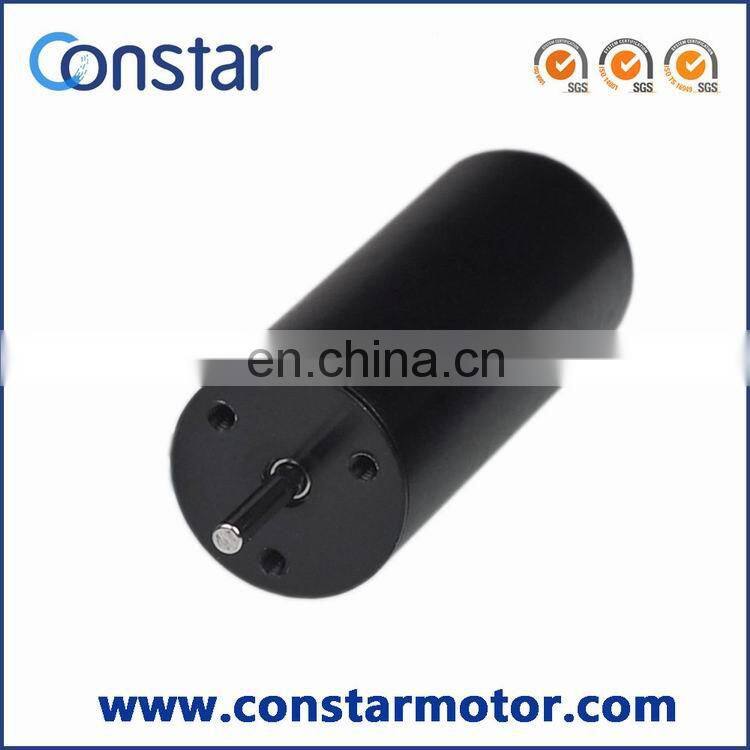

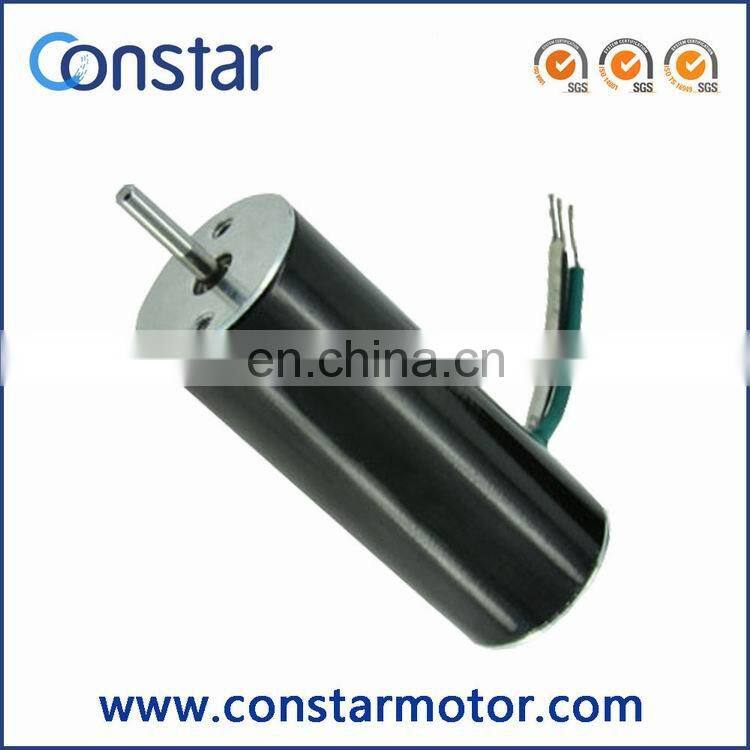

6:,Photo:

7,Other Item:

Series	Dimension (mm)	Voltage (V)	No-load Speed (rpm)	No-Load Current (mA)	KV Value (rpm/V)	Torque Constant (mNm/A)
1215ZWWN	*Φ1215**	3.6	35000	300	9720	0.93
	*Φ1215**	4.5	14500	100	3220	2.62
	*Φ1215**	7.4	42500	200	5470	1.55
1220ZWWN	*Φ1220**	5	17500	210	3500	2.5
	*Φ1220**	6	17200	150	2900	3.0
	*Φ1220**	7.4	23000	100	3100	2.9
1230ZWWN	*Φ1230**	3.7	18000	230	4860	1.9
	*Φ1230**	9	18000	150	2000	4.6
	*Φ1230**	12	11500	50	960	9.6
1329ZWWN	*Φ1329**	12	25000	100	2100	4.3
1635ZWWN	*Φ1635**	12	45000	350	3750	2.5
2030ZWWN	*Φ2030**	12	43300	370	3600	2.6
	*Φ2030**	12	7000	100	580	14.9
	*Φ2030**	12	9200	250	770	11
2040ZWWN	*Φ2040**	9	6700	200	745	12.1
	*Φ2040**	12	15000	250	1250	7.5
	*Φ2040**	12	8000	360	670	13.4
2050ZWWN	*Φ2050**	12	6000	160	500	18

1230 1090KV brushless inrunner motor for RC motorcycle boat
