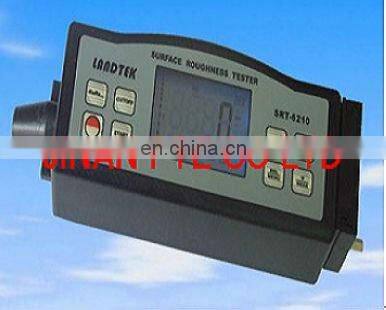

2012 Best Quality SRT-6210 Digital Portable Surface Roughness Instrument

          2012 Best Quality SRT-6210 Digital Portable Surface Roughness Instrument

Application

This instrument is compatible with four standards of site to measure surface roughness of various machinery-processed parts, calculate corresponding and clearly display all measurement parameters. When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.

Features

* Multiple parameter measurement: Ra, Rz, Rq, Rt

* Highly sophisticated inductance sensor

* Four wave filtering methods: RC, PC-RC, GAUSS and D-P

* Built-in lithium ion rechargeable battery and control circuit with high capacity

* Small in size, light in weight and easy to use

* Can communicate with PC computer for statistics, printing,analyzing by the optional cable,the software for RS232C interface.

*Manual or automatic shut down. The tester can be switched off by pressing the Power key at any time. On the other hand, the tester will power itself off about 5 minutes after the last key operation.

*The tester can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.

*Metric /Imperial Conversion

Specification

Display 4 digits, 10 mm LCD, with blue backlight

Parameters   Ra, Rz, Rq, Rt

Measuring Range

                       Ra, Rq:  0.005-16.00um/0.020-629.9uinch

                       Rz,Rt:   0.020-160.0um/0.078-6299uinch

Accuracy: Not more than ±10%

Fluctuation of display value: Not more than 6%

Sensor: Test Principle: Inductance type

         Radius of Probe Pin: 5um

         Material of Probe Pin: Diamond

         Dynamo-measurement of Probe: 4mN (0.4gf)

         Probe Angle: 90º

         Vertical Radius of Guiding Head: 48mm

Maximum driving stroke:  17.5mm/0.7inch

Cutoff length (l): 0.25mm / 0.8mm / 2.5mm optional

Evaluation length:  5l

Driving speed:

         sampling length = 0.25mm   Vt=0.135mm/s

         sampling length = 0.8mm    Vt=0.5mm/s

         sampling length = 2.5mm    Vt=1mm/s

         returning                                Vt=1mm/s

Profile digital filter

         Filtered Profile:            RC

         Filtered Profile:            PC-RC

         Filtered Profile:            Gauss

         Non-Filtered Profile:        D-P

Resolution : .001μm    if reading  less than 10μm

                      0.01μm    if 10μm≤reading less than 100μm

                      0.1μm    if reading ≥100μm

Evaluation length : 5 cut-off

Power Li-ion battery: rechargeable

Operating conditions:  Temp. 0~50°C

                       Humidity  less than 80%

Size 140x57x48 mm  (5.5x2.2x1.9 inch)

Weight: about 420 g
