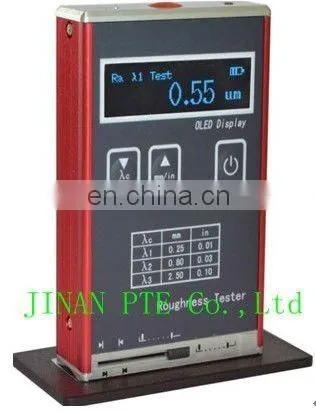

YRT100 portable digital surface flatness measurement
Application:
The portable digital Surface Roughness Tester is my company introduced a new generation of pocket portable surface roughness instrument. It has high accuracy of measurement, high wide measuring range, simple operation, easy to carry, stable and other characteristics, it can be widely used in all kinds of metal and nonmetal processing surface measurement, the instrument is the integration of pocket type sensor host instrument with handheld features, is more suitable for use in production site.
Feature:
1.The aluminum mould design, appearance, durable, resistance to electromagnetic interference ability significant, comply with the design new trends
2.By using high-speed DSP processors for data processing and calculation, measurement and speed greatly improved.
3.Liquid crystal display with popular OLED display, high brightness, no perspective, wide temperature, suitable for all kinds of situations
4. The lithium ion battery, long time work, no memory effect, can edge charge and work, charging time short, battery life long.
5. Use generic USB interface to charge and communication. Using special charger or computer to charge the USB port, convenient and quick
6. Dot matrix liquid crystal display, interface message is rich.
7. Real-time monitoring of lithium battery power and electric, according to remind users to charge in time and with charging progress hints.
8. The automatic shutdown function, low software and hardware design make instruments work time long, suitable for all kinds of field.
9. Sensors head has protect door, effective protection sensors head, guarantee the accuracy of the measurement.
Specification:
Measuring parameters |
Ra, Rz, Rq, Rt |
Stroke length |
6mm |
sample length |
0.25 0.80 2.5 |
Evaluation length |
1.25 4.0 |
measurement range |
Ra: 0.05~10.0 Rz: 0.1~50 |
error of indication |
±15% |
varation of indication |
<12% |
Touch sensor needle tip arc radius and Angle |
Tip arc radius: 10 μm±1 μm Angle degree: 90° |
The sensor head pressure |
≤ 0.5N |
battery |
3.7 V lithium ion batteries |
Machine dimension |
106 mm×70 mm×24 mm |
Weight |
200g |
Work environment conditions |
Humidity: < 90% Temperature: -20 40°C
|
Standard configuration:
main engine |
1 set |
|
standard test block (STB)
|
1 block |
charger |
1 set |
specification |
1 |
|
ABS instrument box
|
1 set |
Packaging Detail:
1. Inner package: dust-proof plastic bag
2. Outer package: standard export wooden case with pallet
3. Special packages: according to buyer's requirements
4. The packages suitable for international transport by sea, by air or any other delivery methods
