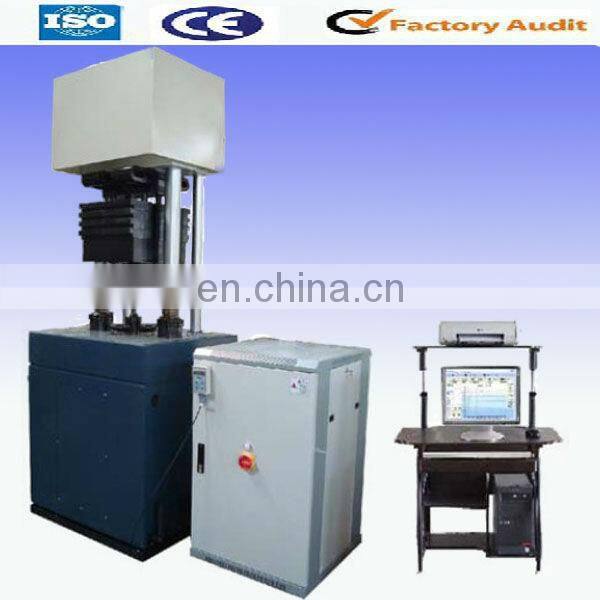

PLG-300C Computer Control Resonant High Frequency Universal Fatigue Testing Machine

Application:

 PLG-300C electromagnetic resonance High-frequency fatigue testing machine has simple structure, convenient operation, high efficiency, low energy consumption and other characteristics, therefore it widely is used in the field of military scientific research, colleges and universities and industrial production.

High-frequency fatigue testing machine is widely used for testing properties of anti-fatigue crack, testing KIC value, S-N curve and so on;

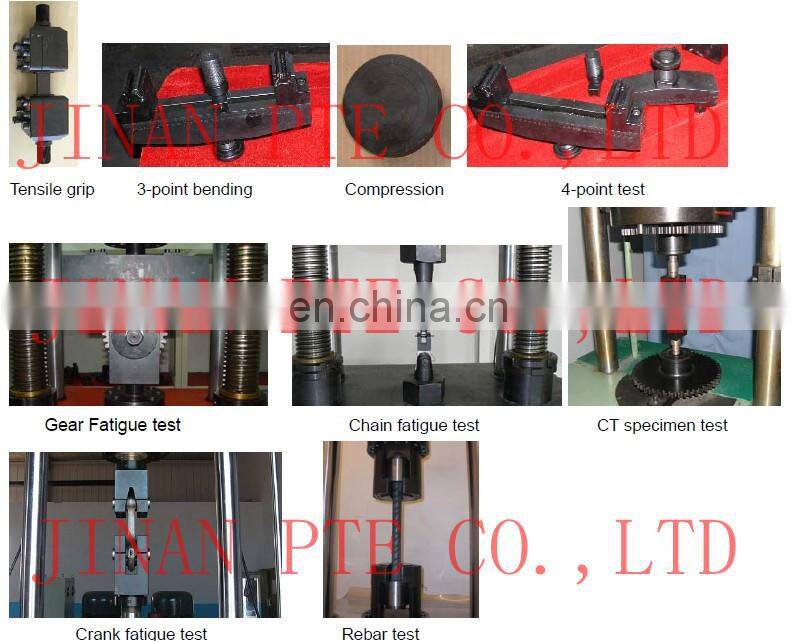

It is used for testing fatigue lifetime of all kinds of parts (e.g. plate gear, crank, bolt, chain, connecting rod, compact tension and so on) with various fixtures.

It may complete the symmetrical fatigue test, the asymmetrical fatigue test, the unidirectional pulsation fatigue test, the block spectrum fatigue test, the modulation fatigue test, the fatigue test at high and low temperature, three point bending, four point bending, torsion fatigue tests and so on.

At present colleges and universities, research department and industrial and mining enterprises use the high frequency testing machine to carry on fracture toughness test and testing metallic material crack growth rate and limited value of martial.

With the development of microelectronic technology and computer technology, as well as perfect test method, its use function is increasing expansion.

This machine undergoes optimization design and the structure is rational. The automatically controlled system adopts the advanced pulse wide control system and new-type power amplifier to improve the reliability of the electric system

Specifications:

1. Mean load Max: ±300kN

2. Force amplitude Max: ±150KN

3. Oscillation range of specimen max: 4mm

4. Degree of load fluctuation: Average load is ±0.3%F·S Alternating load is ±0.3% F·S.

5. Load precision: ±1% indicating value (more than 20% full range); ±0.2%F·S indicating value (less than 20% full range).

6. Operating frequency range is 60~300Hz.

7. Max test space: 800mm

8. Max. Distance between two columns: 620mm

9. Round specimen grip

10. Flat specimen grip

11. 3-point bending fixture

12.Power supply: 380V, 50Hz, 3PHs

Main configuration

Load frame: 1 set

Control cabinet: 1 set

Control box: 1 set

Computer: 1 set

Printer: 1 set

English version software: 1 set

Load cell for high frequency testing machine: 1 set

Round specimen grip (M20): 1 pair

Attachment for flat specimen (Optional): 1 set

Attachment for 3-point bending(Optional): 1 set

Attachment for compression test(Optional): 1 set

Packed in 2 plywood cases
