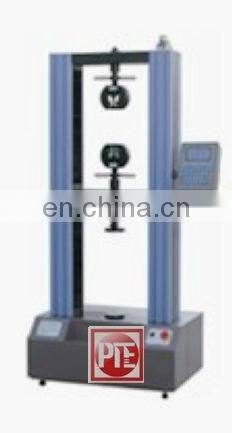

LDW-20 horizontal universal testing machine

Applications:

Model LDW-20 Digital Display Electromechanical Universal Testing Machine is designed and manufactured according to ASTM, ISO, DIN etc standards. It is suitable for wide range of material for tension, compression, Bending and shearing test, etc. It has high stability as well as high precision, equip with LCD display control with easy operation. It is widely used in many fields such as industry factories, mineral enterprise and high schools.

Features:

1.High accuracy servo motor to control test speed.
2.Ball screw no backlash to guarantee the low noise and high driving efficiency
3.High accuracy load cell to measure the test load
4.High accuracy photoelectric encoder to measure the displacement.
5. LCD controller has strong function, it can show test load, displacement, test speed, test status, and also has the function of peak load holding, peak displacement holding and self return original position.
6.Thousands of test fixture can be used according to different test request;
7.Compact structure with easy operation.
8.Limit switch and setting in the software to guarantee the safety

Specification: we can do the testing machine as customer's requirment.

Max. Load (kN):20
Load accuracy:≤±1%
Displacement resolution: 0.01mm
Speed: 0.1mm/min ~ 500mm/min
Tensile space: 600mm
Compression space: 700mm
Grips: Wedge type
Voltage: 220V, 1ph, 50Hz

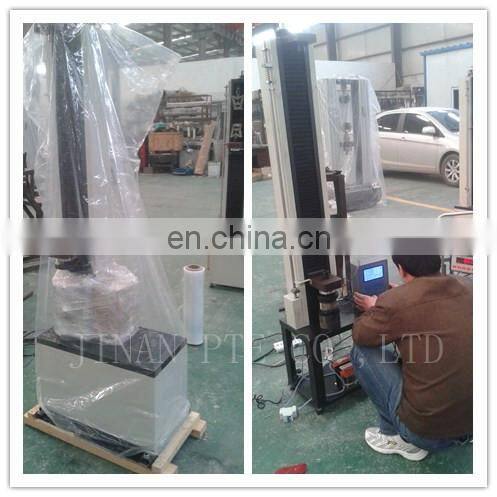

Packaging Detail:

1. Inner package: dust-proof plastic bag
2. Outer package: standard export wooden case with pallet
3. Special packages: according to buyer's requirements
4. The packages suitable for international transport by sea, by air or any other delivery methods
