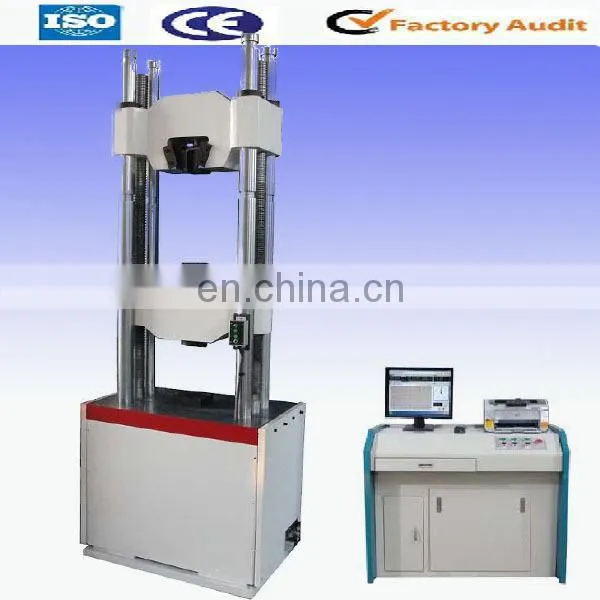

Help CenterHydraulic Universal Testing Machine WAW-1000E
Related Products
-
WAW-C Computerized Servo Hydraulic Universal Tester / Universal Testing Machine ManufactureUS$ 5,000 - 10,000MOQ: 1 Set -
Computer Control Three Closed-loop Hydraulic Servo Universal Tensile Mechanical EquipmentUS$ 8,500 - 10,500MOQ: 1 Set
-
WAW-1000Y Low Carbon Steel Usage Computer Control Hydraulic Servo Universal Tensile TesterUS$ 8,500 - 10,500MOQ: 1 Set
-
WAW-EI Series Universal Testing Machine SpecificationUS$ 3,000 - 22,000MOQ: 1 Set
-
WAW-C Series Computerized Electro-hydraulic Servo Universal Testing Machine 500kNUS$ 5,000 - 10,000MOQ: 1 Set
WAW-E Computerized Servo Tensile Hydraulic Universal testing machines
Applications
--CE ISO ISO679 ISO7438-1985,ISO6892, EN100021-1-2001, ASTM E8M, JIS Z2241-1998,international ,national specifications.

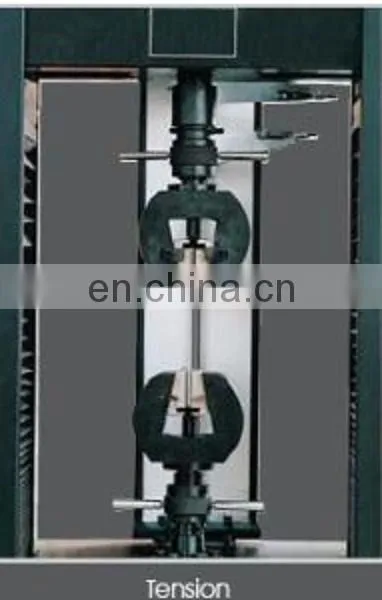

--Suitable for tension compression bending shear and others by adding different test fixture for metal/non-metal materials.

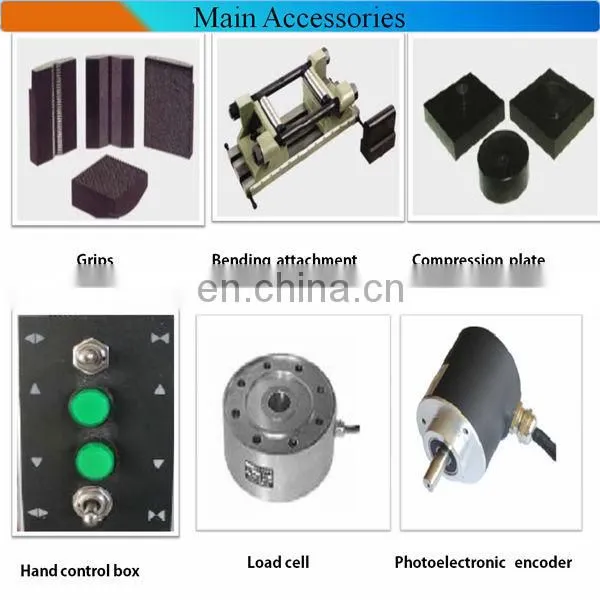

--Adopts hydraulic power pack, using load cell and photoelectric encoder.
--The software based on Windows system can make automatic calculating of test results. i. e tensile strength.
--Field are iron factory, lab machinery ect.
Features
1. Load:adopting load cell to ensure high accuracy, reliability and consistency;
2. Displacement:adopts optical encoder with high accuracy and stability;
3.Strain:Adopt high accuracy electronic extensometer

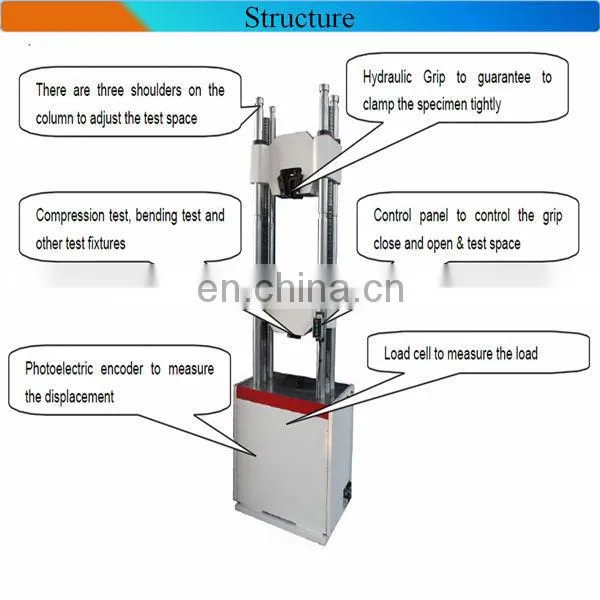

4.Compact structure: The machine has four column and two screw with strong stiffness;
5.Clamp automatically: uses hydraulic grips with reliable holding;
6.Multi-protection: protection of over-load by software and hardware; position-limited protection of piston and lower crosshead;
7.Test data: uses Access, Excel and other such kind software
Specifications
Model Specifications |
WAW-300E |
WAW-600E |
WAW-1000E |
WAW-2000E |
Max. Testing Load (kN) |
300 |
600 |
1000 |
2000 |
Load resolution |
1/200000 |
|||
Load Accuracy |
≤±1% from 2% to 100% of full scale |
|||
Displacement Accuracy |
≤±0.5% |
|||
Displacement resolution |
0.001mm |
|||
Strain accuracy |
≤±0.5% |
|||
Strain resolution |
0.0001mm |
|||
Control Mode |
Servo Control |
|||
Load frame Type |
4-column and 2-screw structure |
|||
Stress rate range |
1—60(N/mm2)S-1 |
|||
Strain rate range |
0.00025/S—0.0025/S |
|||
Max. tensile space (Including piston Travel) mm |
690 |
750 |
750 |
1000 |
Max. Compression space (mm) |
570 |
620 |
600 |
850 |
Round specimen grip (mm) |
Dia 9-32 |
Dia13-40 |
Dia20-60 |
Dia20--80 |
Flat Sample Clipping Thickness (mm) |
0-15 |
0-15 |
0-30 |
10-40 |
Ram stroke (mm) |
250 |
250 |
250 |
250 |
Max. Distance Between Two Fulcrums of Bending Test (mm) |
480 |
600 |
400 |
720 |
Universal testing machine software:
1. Easy to control and friendly interface
2. Full digital display and computer control
3.Manual or Program control of test process
4. Multilevel Authorization Access
5. Perfection of diagramming functions
6. Test report creation as Excel, Word and Template
1.Packing with high quality standard to ensure safety when transportation.
2.Low Delivery Freight,because we are close to Qingdao Seaport.
3.Prompt shipment and keep you informed for delivery.
--OEM,ODM avaliable.
--CE ISO Certification
--Near Qingdao sea port,high quality,good service
- 200 workers,1000m2 non-dust workshop,20 years experience
--We have our own brand PTE and it has high reputation at home and abroad.We have so many agents in the world

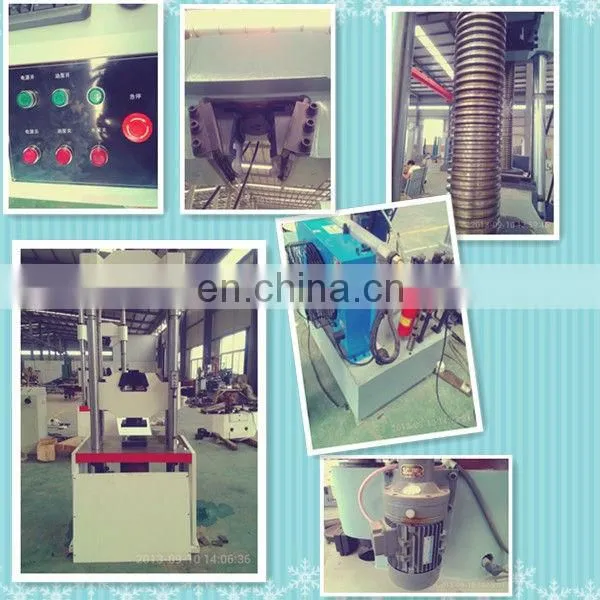

More detail photos:
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
1. How many years do your company in testing machine field?
More than 20 years.
2.Could you pls tell me the warranty?
1 year warranty time
3.What will you do if the machine cannot work during the warranty time?
Our egineer will be your place to fix it.
4.Do you have CE or any other certificate?
CE and ISO Certificate.
5.What is your payment way?
T/T or L/C ,as your like.
