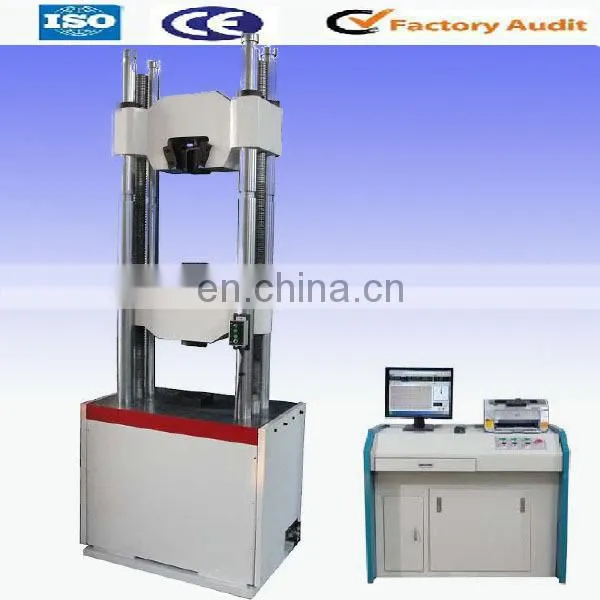

Analogue UTM 1000KN Hydraulic Universal Testing Machine
Applications:
WAW-2000E Computer Control Servo Hydraulic Universal Tensile Testing Machines are guaranteed to meet ISO15579-2000, ISO679, ISO7438-1985, ISO6892, EN100021-1-2001, ASTM E8M, JIS Z2241-1998, ISO75000-1, ISO4012, ISO10065 and other international and national specifications, which are suitable for tension, compression, bending, shear and other tests by adding different test fixture for metal and non-metal materials. It adopts hydraulic power pack to drive the piston in the oil cylinder to provide testing load. By using load cell and photoelectric encoder, the computer is timely showing the testing parameters like testing load, piston stroke, deformation of specimen and various kinds of testing curves etc. This machine is servo control mode and the computer with strong function software does data processing and issues the test reports. The software based on Windows system is able to make automatic calculating of test results, i.e. tensile strength; upper / lower yield strength, Non proportional stress point etc. Report creation function makes it is very simple to make testing report in needed format. It is necessary inspect device in the filed of steel and iron factory, the laboratories of scientific research institutes, infrastructure construction organs, machinery plants and education for research and teaching , etc.
Testing Range:
Tension, compression, bending, shear and other tests by adding different test fixture for metal and non-metal materials.
Main specifications:
Model Specifications |
WAW-300E |
WAW-600E |
WAW-1000E |
WAW-2000E |
|
Max. Testing Load (kN) |
300 |
600 |
1000 |
2000 |
|
Load resolution |
1/200000 |
||||
Load Accuracy |
≤±1% from 2% to 100% of full scale |
||||
Displacement Accuracy |
≤±0.5% |
||||
Displacement resolution |
0.001mm |
||||
Strain accuracy |
≤±0.5% |
||||
Strain resolution |
0.0001mm |
||||
Control Mode |
Servo Control |
||||
Load frame Type |
4-column and 2-screw structure |
||||
Stress rate range |
1—60(N/mm2)S-1 |
||||
Strain rate range |
0.00025/S—0.0025/S |
||||
Max. tensile space (Including piston Travel) mm |
690 |
750 |
750 |
1000 |
|
Max. Compression space (mm) |
570 |
620 |
600 |
850 |
|
Round specimen grip (mm) |
DIA9-32 |
DIA13-40 |
DIA20-60 |
DIA20--80 |
|
Flat Sample Clipping Thickness (mm) |
0-15 |
0-15 |
0-30 |
10-40 |
|
Ram stroke (mm) |
250 |
250 |
250 |
250 |
|
Max. Distance Between Two Fulcrums of Bending Test (mm) |
480 |
600 |
400 |
720 |
|
Lifting Speed of Mobile Beams (mm/min) |
>200 |
||||
Distance Between Two Column (mm) |
435 |
500 |
565 |
580 |
|
