WAW-C Series Computerized Electro-hydraulic Servo Universal Testing Machine 500kN
Applications:
Computer Controlled Electro-Hydraulic Servo Universal Testing Machine Model WAW-500C is suitable to test various metallic & non-metallic materials for tension, compression, flexure, bending and shearing strength. It can be capable of testing the characters of materials on physical & technology properties. It is simple, easy to operate and widely used in works, laboratories and high schools for material properties research and quality control. Equipped with computer as well as printer, it can display, record, process and print the test results and can draw test curves automatically.
Main specifications:
Max. test load: 500 KN
Load range: 10-500KN
Load accuracy: ≤±1 %
Load resolution: 1/100000
Displacement accuracy: ≤±0.5 %
Deformation accuracy: ≤±0.5 %
Max. Ram stroke: 150mm
Max. Tensile Space (Including ram stroke): 690mm
Max. Compression space: 620mm
Tensile grips for round specimen: Φ13~Φ40mm
Distance between two columns: 570
Tensile grips for flat specimen: 0~30mm(thickness)
Upper and lower platen size: 170x170mm
Platen hardness: 50-55HRC
The space between support rollers for bending test: 100-500mm
Clamping mode: Hydraulically.
Transducer: oil pressure Transducer.
Dimensions of Load frame ---950 x 630 x 2265 mm
(Including Max. ram stroke)
Dimension of dynamometer: 1050x770x1780

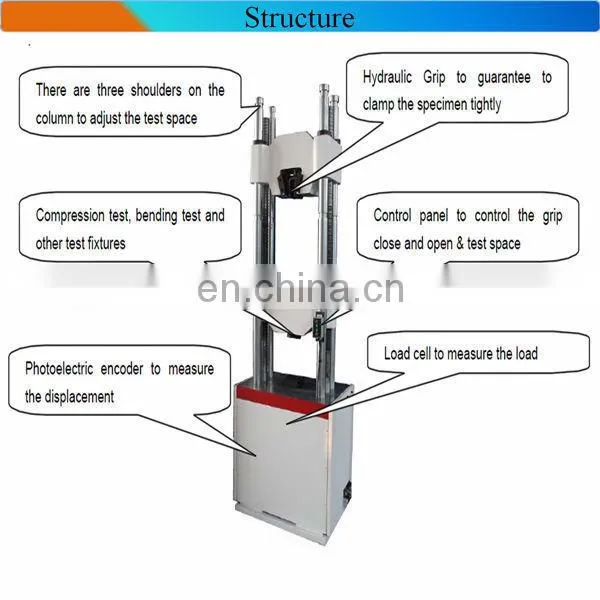

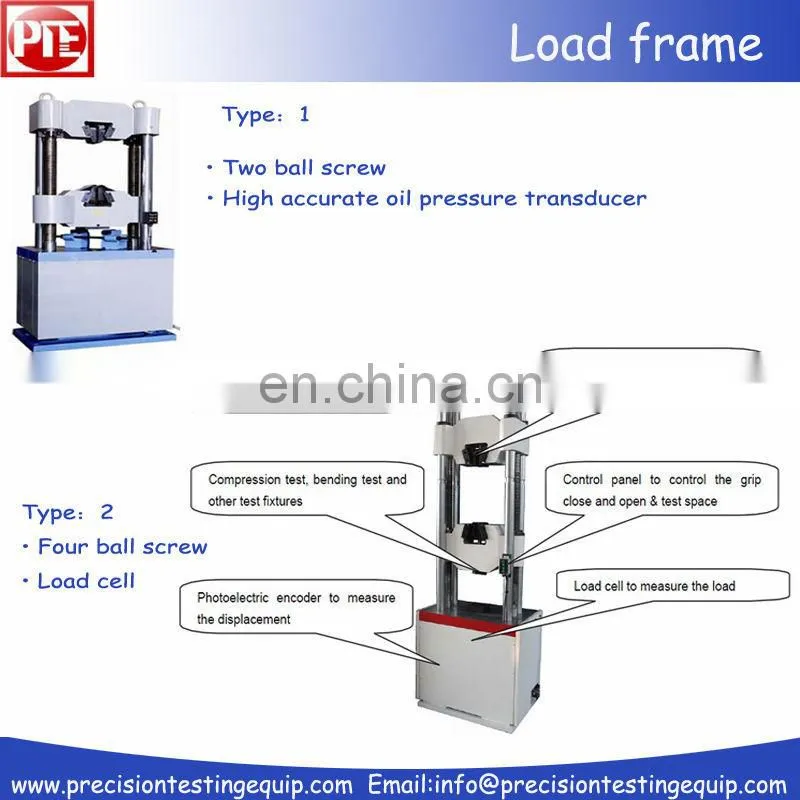

Load frame:
• Rigid four column construction & compact design
• Dual workspace design: lower for compression and bending
tests, Upper for tensile test
• Movable lower crosshead providing exceptional ease of
operation
• Accurate force measurement through precision electronic
pressure cell

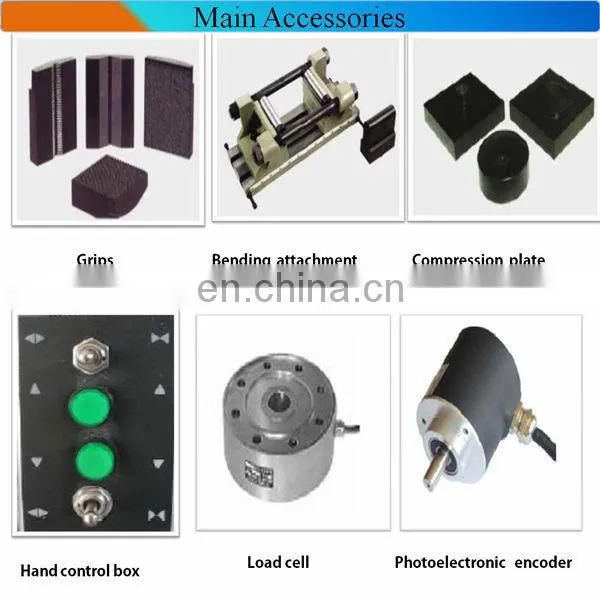

• With open hydraulic wedge grips for easy change of inserts
and specimen loading
• Integrated displacement photoelectric encoder
• Cylinder mounted at the bottom of the machine
Safeguard
• Overload protection: When the testing load is over 2%-5% of Max. Load, the system will unload.
• Stroke protection: When the piston arrives at the upper limited position, the motor of oil pump will
stop.
• When control deviation exceeds +/-10% of the full scale value, the test will stop automatically.
• Emergency stop switch
Features:
Full Digital Control
The control system adopts special PC control card for testing machine so as to realize digital
adjustment for test load, deformation, displacement zero & gain. It is easy to operate & in high
reliability.
Realize database management of test parameters & test results, which can be stored according to
standard format facilitating other software to be analyzed and transferred.
Completed control mode & intelligent expert system. With auto- processing control function, it can
complete smooth switch of various modes in order to satisfy test requirements for various kinds of test materials & test standards at home & abroad.
Control software has the auto-adjusting function of test hardness, which assures system optimization for every kind of specimen rigidity.

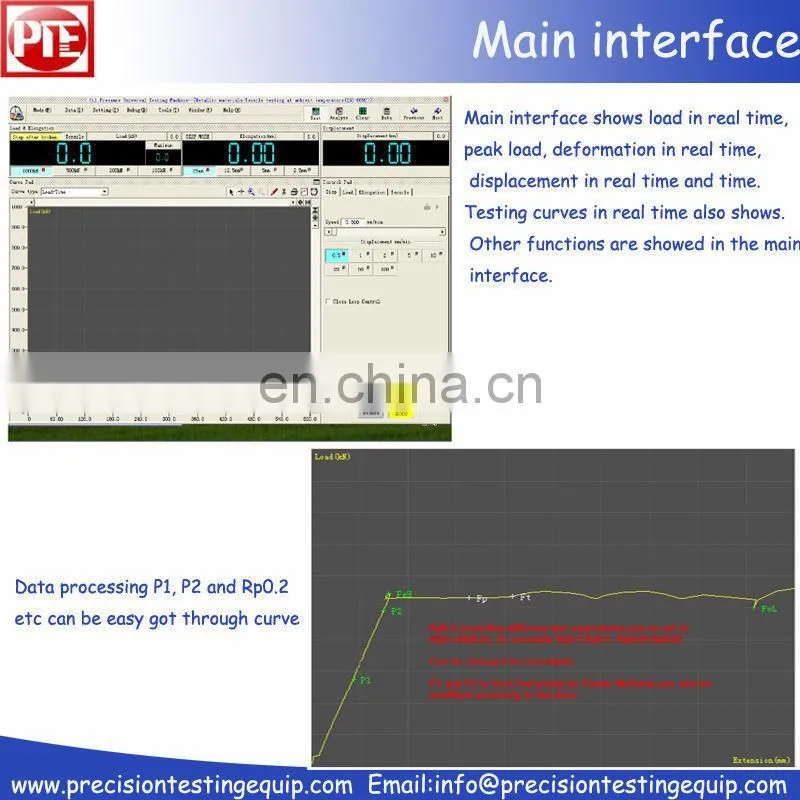

Perfect graphic function, which can realize the arbitrarily magnifying, decreasing, equaling, adding,
indicative display and print of all kinds of test curves, the test point searching as well as the
simultaneous display and print of several kinds of test curves. Data processing supposes
self-disposing and input disposing of graphic human computer interaction, which facilitates the check and contrast of the test result.
The client can self-define the output of the test report, which makes the report format have very high flexibility.
Modularization design facilitates the software upgrading, function spreading as well as the second
development.
Product:
Why you choose us?
1. Reliable Testing Machine manufacturer in China.
2. A professional Manufacturer of Testing Machine over 8 years.
3. Completely Production Line. From Raw Material to Delivery, all links are under our control. The quality can be assured..
4. OEM/ODM Service. Just tell us your idea! Our R&D Team is standing by.
5. All our products got CE approval..
6. We accept 100% inspection
Three Star Service
* First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
* Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
1.can extend test space as request
2.can add large deformation extensometer
3.can add high and low chamber
4.can do different test fixture
5.can paint color what you like
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. * Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
--OEM,ODM avaliable.
--CE ISO Certification
--Near Qingdao sea port,high quality,good service

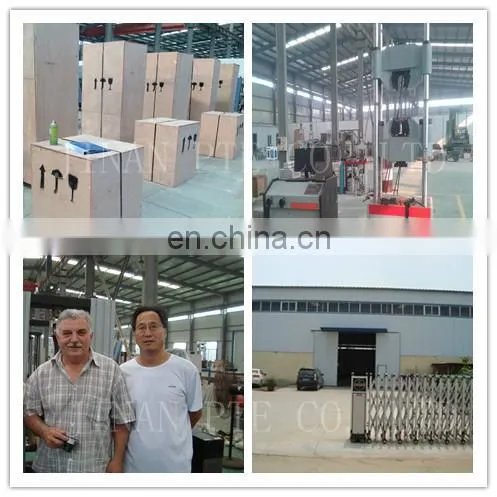

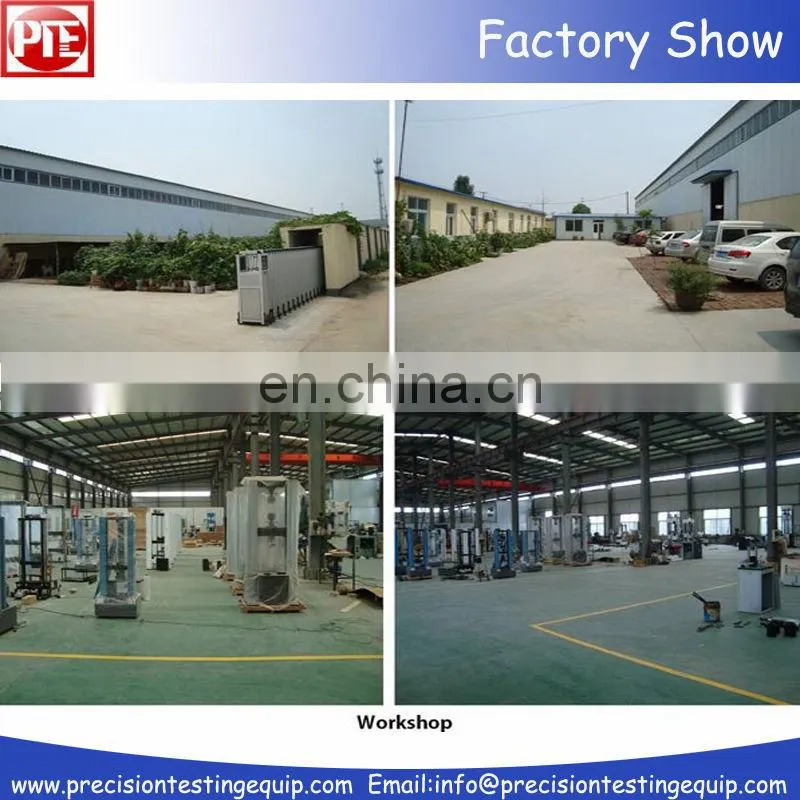

-- 200 workers,1000m2 non-dust workshop,about 20 years experience
--We have our own brand PTE and it has high reputation at home and abroad.We have so many agents in the world
For more product:
WAW-C Hydraulic unviersal testing machine
| Model | WE-100C |
| Max. Testing Load (kN) | 100 |
Load range(kN) and Min |
0-20/0.05 |
Max. tensile space |
560 |
Max. Compression space |
530 |
Max. Distance Between Two |
400 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
Compressive strength testing machine for concrete
| Model | YES-1000 |
| Load display accuracy | ±1% |
Distance between upper |
320mm |
| Diameter of lower platen | 300 mm |
| Piston stroke | 30mm |
| Pump nominated pressure | 40MPa |
-------------------------------------------------------------------------------------------------------------------------------------------------------
Fiber strength testing machine (single column):
| Model | WDW-E1,E2, E3, E5, E10, E20, E30, E50, E100 |
| Max. Load | 1kN,2kN,3kN,5kN,10kN,20kN |
| Deformation accuracy | ≤±0.5% |
| Load speed | 0.005-500mm/min |
| Total crosshead travel (mm) | 1075 |
| Spacing of grip to grip(mm) | 750 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLG 300C PC Control High Frequency Fatigue Testing Machine
| Model | PLG-10C PLG-20C PLG-50C PLG-100C PLG-200C PLG-300C |
| Mean load max(kN) | ±10 .... |
| Load step | 1,2,5 |
| Accuracy of static load | ≤±1% |
| Range of frequency(Hz) | 60~300HZ |
| Power | 380V, 3phs, |
-------------------------------------------------------------------------------------------------------------------------
WAW Computer Control Servo Hydraulic Universal Testing Machine
| Model | WAW-300E WAW-600E WAW-1000E WAW-2000E |
| Max. Testing Load (kN) | 300 .... |
| Load Accuracy | ≤±1% from 2% to 100% of full scale |
| Strain accuracy | ≤±0.5% |
| Load frame Type | 4-column and 2-screw structure |
| Max. tensile space (Including piston |
690 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
TORSION TESTING MACHINE
| Item | NJS-30 |
| Max torque(Nm) | 30 |
| Torque resolution (Nm) | 0.01 |
| Accurate measuring range of torsion (Nm) | 0.6-30 |
| Full-scale reading of torsion angle (º) | 9999.9 |
| Torsion angle resolution (º) | 0.01 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLS Dyanmic testing machine
| Model | PLS-50 |
| Static | ±50 |
| Dynamic | 50 |
| Function generator Range of frequency(Hz) |
0.01~20HZ |
| Stroke of piston(mm) | ±75 |
| Distance between columns |
500 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
RTH CREEP TESTING MACHINE
| Working Temp. range | 400°C~1200°C |
| Length of effective soaking zone | 150mm |
| Furnace pipe: | φ90mm |
| Furnace: | φ300mm |
| Furnace life: | ≥3000hours |
| Timing error | ±0.2% |
Trust Us,Trust PTE! Let us do the best service for you !
