ball screw Electromechanical Digital Display/tensile/ compression /Universal Testing Machine LDW-100
- Qingdao
- T/T Credit Card
You May Like
-
Computer Control Strength/compression/tensile Universal Testing Machine WDW-E30 30KN
-
TDW-300 300KN computer control spring tensile and compression testing machine
-
WDW-100 100KN Door Type Computerized Electronic Universal Tensile Testing Machine
-
WDW-10 Electromechanical Computerized 10kn Compressive and Tensile Testing Machine for ROCKWOOL
-
High Quality Electronic Instron Tensile Testing Machine
-
WDW-200D 200KN Electronic Steel Ultimate Tensile Strength Testing Machine
Product Details
| Brand Name | PTE | Place of Origin | Shandong, China | |
| Model Number | LDW-100 | Power | Electronic | |
| Usage | Universal Testing Machine |
Product Description

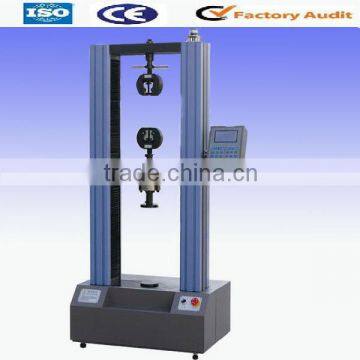

LDW-100 Electromechanical Digital Display Compression Testing Machine/Tensile Testing Machine/Universal Testing Machine
Applications:
Model LDW-100 Digital Display Electromechanical Universal Testing Machine is designed and manufactured according to ASTM, ISO, DIN etc standards. It is suitable for wide range of material for tension, compression, Bending and shearing test, etc. It has high stability as well as high precision, equip with LCD display control with easy operation. It is widely used in many fields such as industry factories, mineral enterprise and high schools.
Features:
1.High accuracy servo motor to control test speed.
2.Ball screw no backlash to guarantee the low noise and high driving efficiency
3.High accuracy load cell to measure the test load
4.High accuracy photoelectric encoder to measure the displacement.
5. LCD controller has strong function, it can show test load, displacement, test speed, test status, and also has the function of peak load holding, peak displacement holding and self return original position.
6.Thousands of test fixture can be used according to different test request;
7.Compact structure with easy operation.
8.Limit switch and setting in the software to guarantee the safety
Specification: we can do the testing machine as customer's requirment.
Max. Load (kN):100
Load accuracy:≤±1%
Displacement resolution: 0.01mm
Speed: 0.1mm/min ~ 500mm/min
Tensile space: 600mm
Compression space: 700mm
Grips: Wedge type
Voltage: 220V, 1ph, 50Hz
Model | LDW-300 | LDW-200 | LDW-100 | LDW-50 | LDW-20 | LDW-10 |
Max. Load | 300KN | 200KN | 100KN | 50KN | 20KN | 10KN |
Load accuracy | ≤±1% | |||||
Load range | 2%-100% of full scale | |||||
Test speed | 0.1-250mm/min | 0.1-500mm/min | 0.1-500mm/min | |||
Speed accuracy | ≤±1% | |||||
Disp. resolution | 0.01mm | |||||
Effective test width | 570mm | 400mm | 400mm | |||
Effective tensile space | 600mm | 600mm | ||||
Effective comp. space | 700mm | 700mm | ||||
Dimension | 1130×650×2650mm | 830×550×2000mm | 760×500×1750mm | |||
Power supply | 380V, 3ph, 4/3KW | 220V, 1ph, 1.5KW | 220V, 1ph, 1KW | |||
Weight | 1800KG | 720KG | 460KG | |||
Grips | Wedge type, plate type and other grips as consumer’s demand | |||||
Load frame type | Gate type | |||||
Packaging Detail:
1. Inner package: dust-proof plastic bag
2. Outer package: standard export wooden case with pallet
3. Special packages: according to buyer's requirements
4. The packages suitable for international transport by sea, by air or any other delivery methods
Our company is one of the top-ranking manufacturers and suppliers of test machines worldwide. With many years of experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials test.
Our product range:
1. Electromechanical Universal Testing Machine
2. Hydraulic universal testing machine
3. Spring testing machine
4. Fatigue testing machine
5. Creep and rupture testing machine
6. Horizontal tensile testing machine
7. Torsion testing machine
8. Cold bending testing machine
9. Cupping testing machine
10. Impact testing machine (Nist)
11. DWTT drop weight testing machine.
12. Compression testing machine
13. Friction and wear testing machine
For more product:
WAW-C Hydraulic unviersal testing machine
| Model | WE-100C |
| Max. Testing Load (kN) | 100 |
Load range(kN) and Min | 0-20/0.05 |
Max. tensile space | 560 |
Max. Compression space | 530 |
Max. Distance Between Two | 400 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
Fiber strength testing machine (single column):
| Model | WDW-E1,E2, E3, E5, E10, E20, E30, E50, E100 |
| Max. Load | 1kN,2kN,3kN,5kN,10kN,20kN |
| Deformation accuracy | ≤±0.5% |
| Load speed | 0.005-500mm/min |
| Total crosshead travel (mm) | 1075 |
| Spacing of grip to grip(mm) | 750 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLG 300C PC Control High Frequency Fatigue Testing Machine
| Model | PLG-10C PLG-20C PLG-50C PLG-100C PLG-200C PLG-300C |
| Mean load max(kN) | ±10 .... |
| Load step | 1,2,5 |
| Accuracy of static load | ≤±1% |
| Range of frequency(Hz) | 60~300HZ |
| Power | 380V, 3phs, |
-------------------------------------------------------------------------------------------------------------------------
WAW Computer Control Servo Hydraulic Universal Testing Machine
| Model | WAW-300E WAW-600E WAW-1000E WAW-2000E |
| Max. Testing Load (kN) | 300 .... |
| Load Accuracy | ≤±1% from 2% to 100% of full scale |
| Strain accuracy | ≤±0.5% |
| Load frame Type | 4-column and 2-screw structure |
| Max. tensile space (Including piston | 690 |
