Geotechnical Material Geotextile Tensile Testing Machine
- Qingdao
- T/T Credit Card
You May Like
-
50KNl Geotextile Tensile Strength Testing Machine Price
-
600kn Universal Tensile Testing Machine Price
-
WDW-100 Computerized Door Type Automatic Universal Testing Machine
-
LDW-20 Horizontal Universal Testing Machine
-
WDW-100 UTM Universal Testing Machine
-
600KN Max Test Force Hydraulic Tensile Universal Testing Machine
Product Details
| Brand Name | PTE | Place of Origin | Shandong, China | |
| Model Number | geotextile testing machine | Power | Electronic |
Product Description

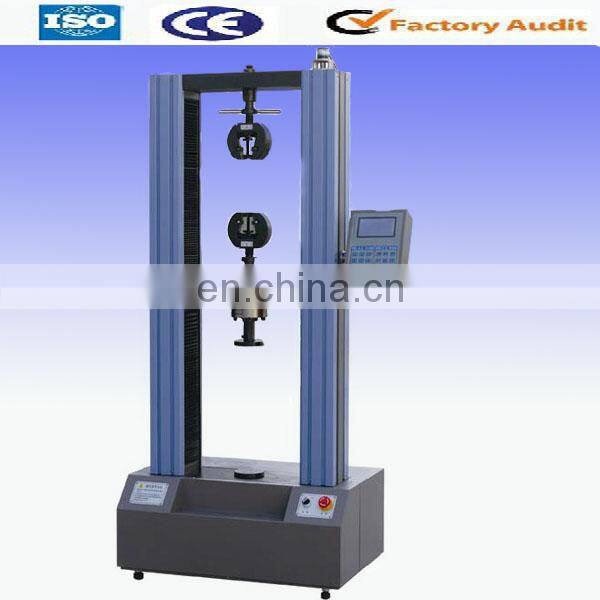

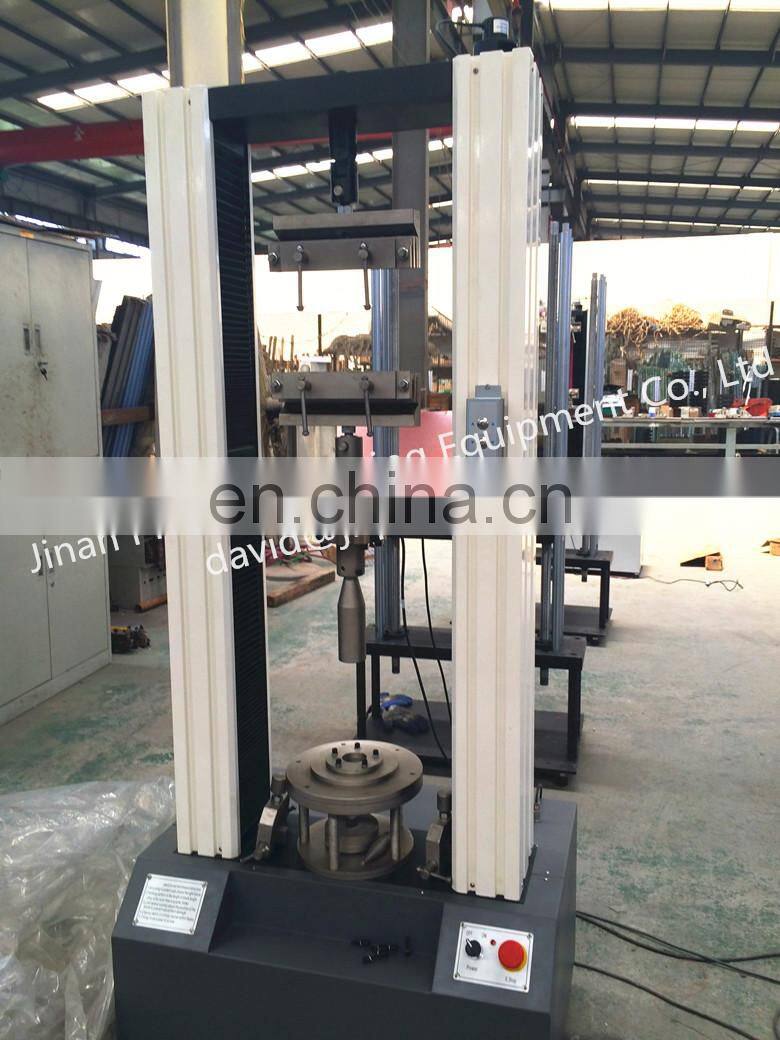

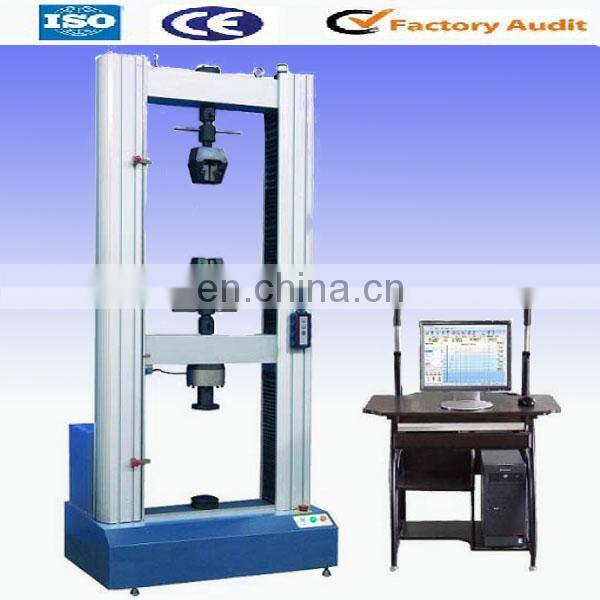

Geotechnical Material Geotextile Tensile Testing Machine
Geotextiles Tensile Testing machine
ASTM D4595 Tensile Properties of Geotextiles by Wide-Width Strip Method
WDW series computer control electronic universal testing machine are used for wide width strength and elongation, grab strength and elongation, CBR puncture test and trapezoidal tear test of geotextiles. They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.
Model Specification | WDW-5 | WDW-10 | WDW-20 | WDW-50 |
Force Range (kN) | 0.1- 5 | 0.1- 10 | 0.2- 20 | 0.5- 50 |
Force Accuracy | ±1% of applied force | |||
Position Resolution (mm) | 0.001 | |||
Test Speed Range (mm/min) | 0.01-500, servo control | |||
Crosshead Travel (mm) | 800 | |||
Width of testing space (mm) | 370 | |||
Wide width tensile specimen (mm) | Width 200 | |||
Grab tensile specimen (mm) | Width 100 | |||
CBR puncture rod (mm) | φ50×100 | |||
Power Requirement | 1 phase, 220V±10%, 50Hz | |||
Environmental Requirements | Room temperature- 40℃, relative humidity <80% | |||
Frame Dimension (mm) | 600×420×1700 | |||
Frame Weight (kg) | 450 | |||
This machine adopts the most advanced and reliable load frame structure of ball screw electric mechanical universal testing machine, which equips alternating servomotor for driving crosshead, photoelectric encoder for displacement measure and high precision load cell to assure the high resolution of test.

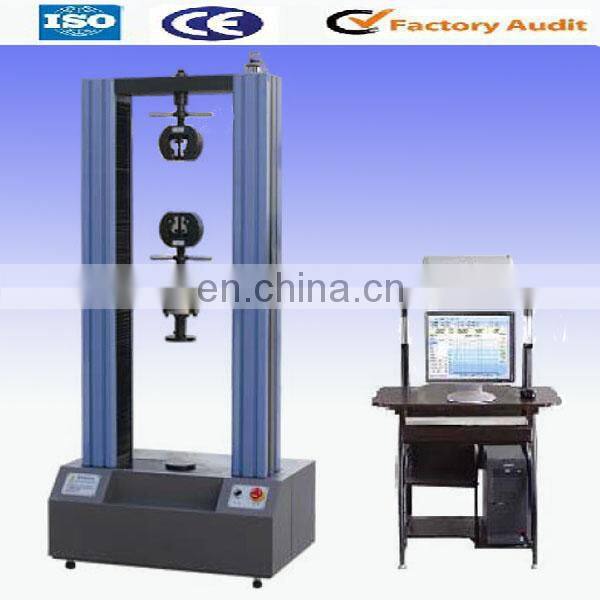

Equipped with the computer &Software & printer, it can display, record, process and print the test results, and control test procedures as the set program and can draw test curves automatically in real time. Control software can automatically finger out routine data, such as tensile modulus of elasticity, extend rate after rupture, non-proportional extend strength Rp0.2, etc.
They can conform to the requirements of testing standards ASTM D4595, ASTM D4632, ASTM D6241, etc
PTE- A Material Testing Machine Manufacturer
JINAN PRECISION TESTING EQUIPMENT CO., LTD is one of the top-ranking manufacturers and suppliers of testing technologies worldwide. With many years experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials testing.
The main products from JINAN PRECISION TESTING EQUIPMENT include hardness testers, universal testing machines, Sample preparation equipment, non-metal materials testing equipment, spectrophotometer, Temperature Chamber, which can used for testing metals, plastics, rubber, textiles, paper, paint, cement, concrete and packaging materials, etc. Their usage is very wide.
Welcome to enquiry and prompt reply will be done by our professional technical and sales person.
Sales representative network:
We have exported more than 60 countries all over the world and enjoy a good reputation.
Welcome to visit our factory,we are the leading manufactured testing machine for over 20 years.we have our own brand PTE and high reputation among local and broad.We packed our machine in the two wooden cases,one packed the control system and other packed the load frame.
Our Services
Pre-service---Trade manager 24 Hours online service
Middle Service ---Recommend the suitable model and give competitive price
After serivce---2 years guarantee,Free installation CD/DVD, Remote control technical consult , oversea trainning,Provide newest software vision when update
