Digital Table Top Model Lab Textile Testing Machine / Tensile Testing Machine for Textiles
Applications:
Tensile Testing Machines for Textiles are designed and manufactured according to ASTM, ISO, DIN, GB etc standards. It is suitable for wide range of material for tension, compression, bending, shearing and low cycle test. With special grips, it can also do very special test as customer’s request. It is for metal, rubber, plastic, spring, textile, and components testing. This machine is servo control mode and the computer with strong function software does data processing and issues the test reports. The software based on Windows system is able to make automatic calculating of test results, i.e. tensile strength; upper / lower yield strength, Non proportional stress point etc. Report creation function makes it is very simple to make testing report in needed format. It is necessary inspect device in the filed of steel and iron factory, the laboratories of scientific research institutes, infrastructure construction organs, machinery plants and education for research and teaching , etc.
Texile universal tensile testing machineare for tensile test of paper sheet, plastic materials, rubber, electrical wire and cable, sponge, composite, profiled bar, safety belt,, membrane, plastic materials,steel plate,waterproof roll materials.This series machines can also be used for compression ,bending ,cutting ,sheering.
Specifications:
Model |
LDW-300 |
LDW-200 |
LDW-100 |
LDW-50 |
LDW-20 |
LDW-10 |
Max. Load |
300KN |
200KN |
100KN |
50KN |
20KN |
10KN |
Load accuracy |
≤±1% |
|||||
Load range |
2%-100% of full scale |
|||||
Test speed |
0.1-250mm/min |
0.1-500mm/min |
0.1-500mm/min |
|||
Speed accuracy |
≤±1% |
|||||
Disp. resolution |
0.01mm |
|||||
Effective test width |
570mm |
400mm |
400mm |
|||
Effective tensile space |
600mm |
600mm |
||||
Effective comp. space |
700mm |
700mm |
||||
Dimension |
1130×650×2650mm |
830×550×2000mm |
760×500×1750mm |
|||
Power supply |
380V, 3ph, 4/3KW |
220V, 1ph, 1.5KW |
220V, 1ph, 1KW |
|||
Weight |
1800KG |
720KG |
460KG |
|||
Grips |
Wedge type, plate type and other grips as consumer’s demand |
|||||
Load frame type |
Gate type |
|||||
Features:

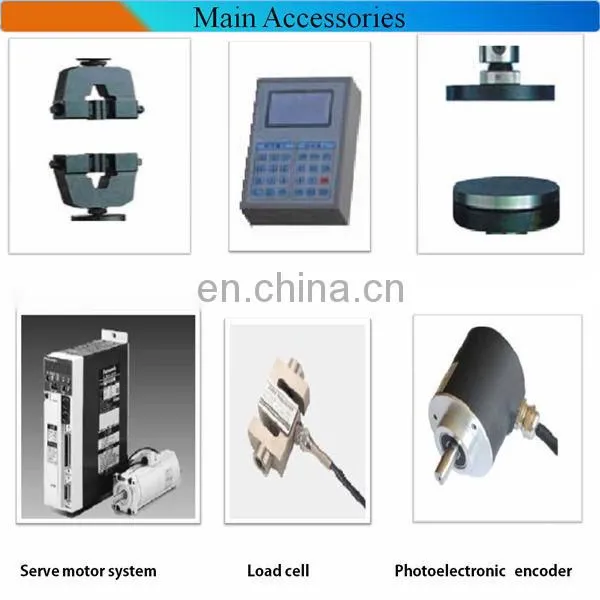

1.High accuracy servo motor to control test speed
2.Ball screw no backlash to guarantee the low noise and high driving efficiency
3.High accuracy load cell to measure the test load
4.High accuracy photoelectric encoder to measure the displacement.
5.Maxtest software has strong function, it can show test load, displacement, test speed, test status, and also has the function of peak load holding, peak displacement holding and self return original position.
6.Thousands of test fixture can be used according to different test request;
7.Compact structure with easy operation.
8.Limit switch and setting in the software to guarantee the safety
Type of universal testing machine:
1.Electronic universal testing machine

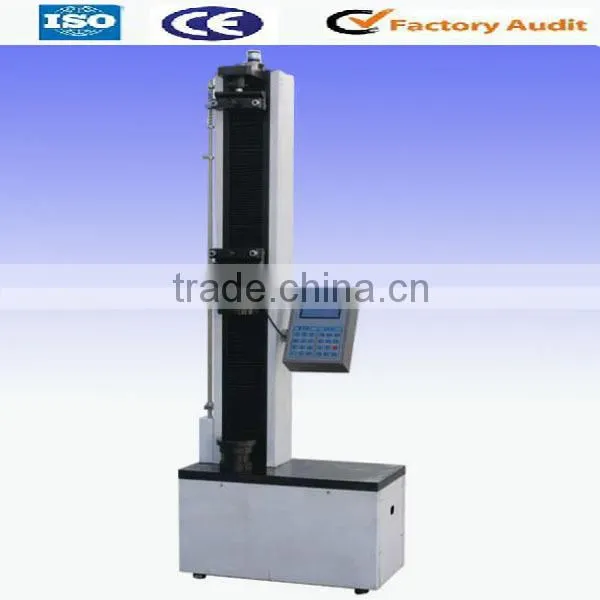

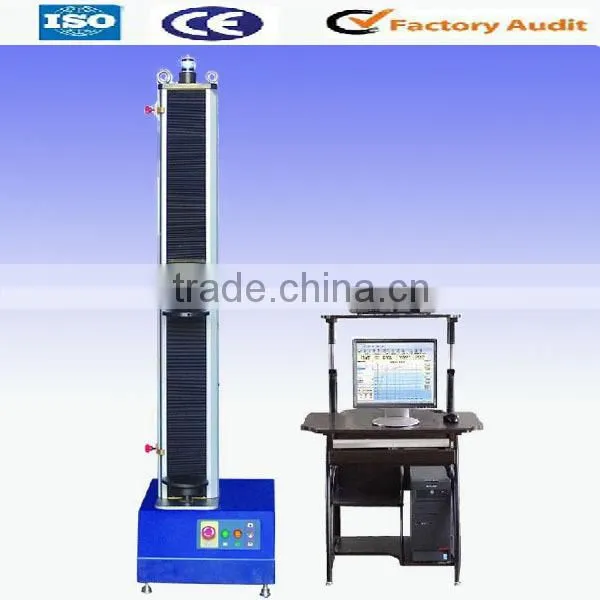

LDS Single Column digital display electronic universal testing machine

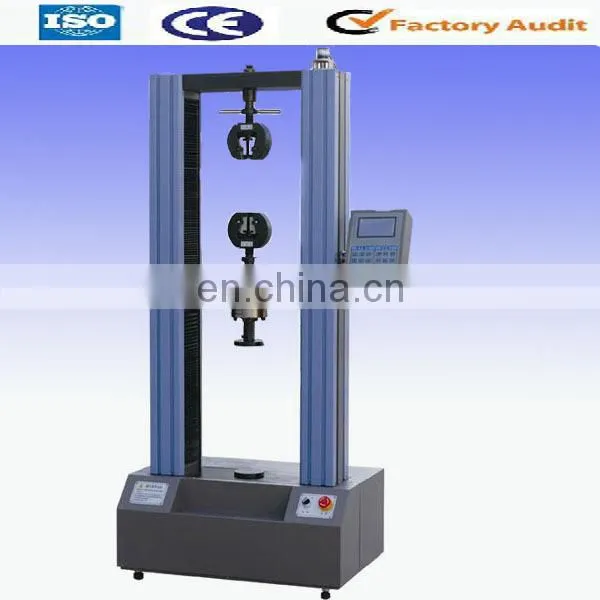

LDW Double Column electronic universal testing machine

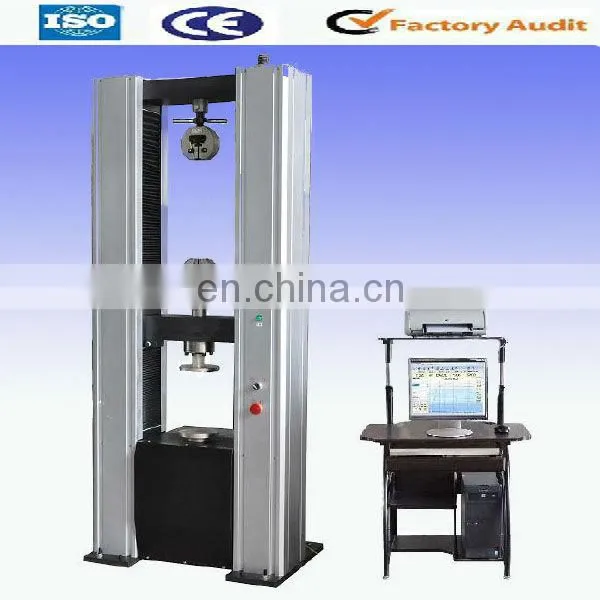

WDW WDW-E Floor Type and Door type computer control universal testing machine
2.Hydraulic Universal testing machine
WE-C Analog dispaly universal testing machine
WAW-E Servo control hydraulic computer universal testing machine
WEW-D Digital Hydraulic universal testing machine
How to make a choice of Electromechanical Universal Testing Machine?
1.End user who do tensile, compression, bending and shearing test and other test
2.Materials tested are widely in material and non-metal.
3.When customer only needs load & speed, LCD type will be best choice. The operation is easy and simple.
4.When requiring load, speed(displacemnt),deformation(strain) control, servo control is a must.
Accessories:
1.Can provide different accessories and do as customer's request for test fixtures & Grips.
2.Multi sensor supported.Many load cell and 4 extensometer can be define.
Software:
1. Multi languages supported,easy to control
2. Full digital display and computer control
3. Manual or Program control of test process
4. Multilevel Authorization Access
5. Perfection of diagramming functions
6. Test report creation as Excel, Word and Template
About us:

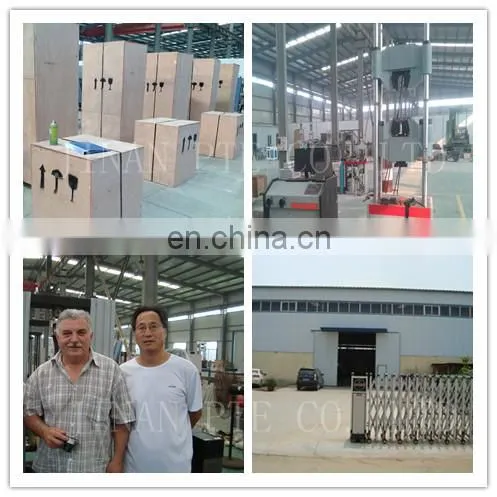

JINAN PRECISION TESTING EQUIPMENT CO., LTD is one of the top-ranking manufacturers and suppliers of testing technologies worldwide. With many years experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials testing.
The main products from JINAN PRECISION TESTING EQUIPMENT include hardness testers, universal testing machines, Sample preparation equipment, non-metal materials testing equipment, spectrophotometer, Temperature Chamber, which can used for testing metals, plastics, rubber, textiles, paper, paint, cement, concrete and packaging materials, etc. Their usage is very wide
