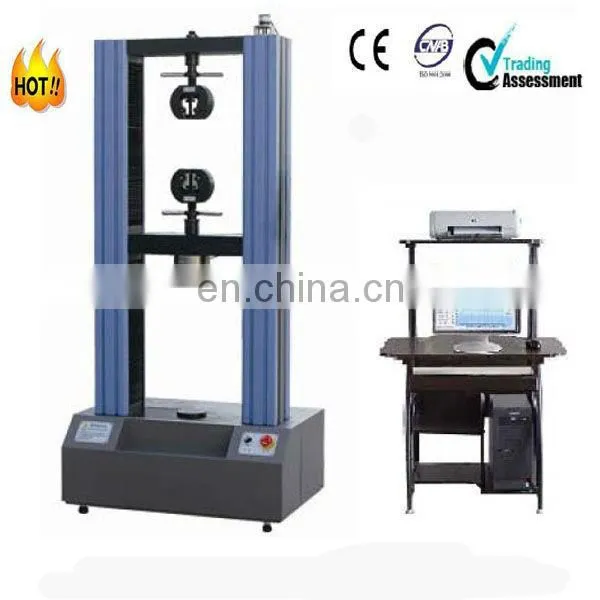

WDW-100 UTM Universal Testing Machine
Electromechanical Testing Machines are designed and manufactured according to ASTM, ISO, DIN, GB etc standards. It is suitable for wide range of material for tension, compression, bending, shearing and low cycle test. With special grips, it can also do very special test as customer’s request. It is for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Type of universal testing machine:
1.Electronic universal testing machine

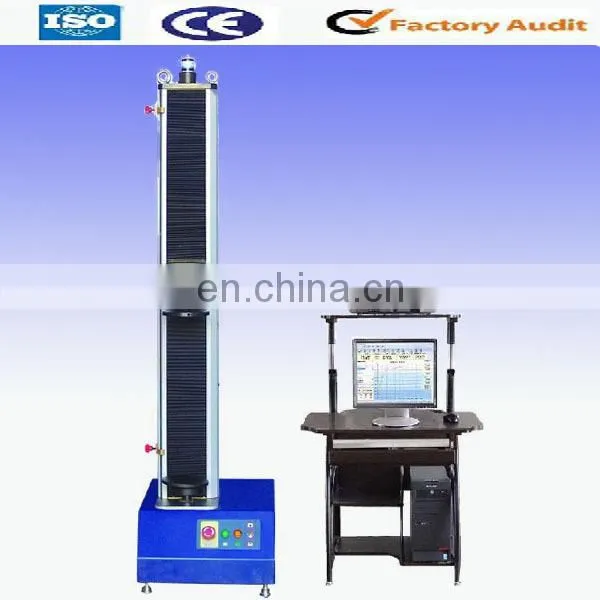

LDS Single Column digital display electronic universal testing machine
LDW Double Column electronic universal testing machine
WDW WDW-E Floor Type and Door type computer control universal testing machine
2.Hydraulic Universal testing machine
WE-C Analog dispaly universal testing machine
WAW-E Servo control hydraulic computer universal testing machine
WEW-D Digital Hydraulic universal testing machine

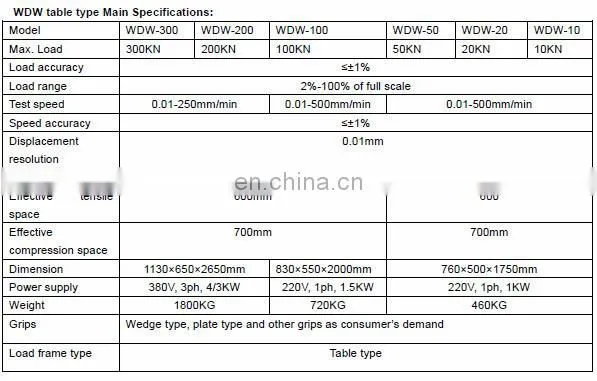

Specifications
Model |
WDW-300 |
WDW-200 |
WDW-100 |
WDW-50 |
WDW-20 |
WDW-10 |
Max. Load |
300KN |
200KN |
100KN |
50KN |
20KN |
10KN |
Load accuracy |
≤±1% |
|||||
Load range |
2%-100% of full scale |
|||||
Test speed |
0.01-250mm/min |
0.01-500mm/min |
0.01-500mm/min |
|||
Speed accuracy |
≤±1% |
|||||
Displacement resolution |
0.01mm |
|||||
Effective test width |
570mm |
400mm |
400mm |
|||
Effective tensile space |
600mm |
600 |
||||
Effective compression space |
700mm |
700mm |
||||
Dimension |
1130×650×2650mm |
830×550×2000mm |
760×500×1750mm |
|||
Power supply |
380V, 3ph, 4/3KW |
220V, 1ph, 1.5KW |
220V, 1ph, 1KW |
|||
Weight |
1800KG |
720KG |
460KG |
|||
Grips |
Wedge type, plate type and other grips as consumer’s demand |
|||||
Load frame type |
Table type |
|||||
How to make a choice of Electromechanical Universal Testing Machine?
1.End user who do tensile, compression, bending and shearing test and other test
2.Materials tested are widely in material and non-metal.
3.When customer only needs load & speed, LCD type will be best choice. The operation is easy and simple.
4.When requiring load, speed(displacemnt),deformation(strain) control, servo control is a must.
Feature:
1. Complete computer controlled: The whole measuring and controlling system adopts specific PC control card Used for testing machines, realizing the data zero and plus adjustment, which has very high reliability.
2. Supporting multi-transducers Realizing the database management of the test data which are stored according to the standard format; Facilitating other software to analyze and transfer.
3. Perfect programming by auto program control, every control mode can smoothly shift to another one. Fulfilling the test requirement of all kinds of materials with every test standard home and abroad.
4. Control software has the auto-adjusting function of test hardness, which assures that the system works with Every kind of specimen hardness.
5. Perfect graphic function realizing the arbitrarily magnifying, decreasing, equaling, adding, indicative display and Print of all kinds of test curves, the test point searching as well as the simultaneous display and print of several Kinds of test curves. Data processing supposes self-disposing and input disposing of graphic human computer Interaction, which facilitates the check and contrast of the test result.
6. The user can self -define the output of the test report, which makes the report format have very high flexibility.
7. Modularization design facilitates the software upgrading, function spreading as well as the second development.
Quik detail
1. High Reliability,easy operate
2. Test system use high speed,low vibration motor drive unit .
3. Ball screw no backlash,low noise,high driving efficiency
4. High accuracy photoelectric encoder
5. Special testing machine software
6. Thousands of test fixture
7. High stiffness column
8. Limit switch to guarantee the safety
Accessories:
1.Can provide different accessories and do as customer's request for test fixtures & Grips.
2.Multi sensor supported.Many load cell and 4 extensometer can be define.
Software:
1. Multi languages supported,easy to control
2. Full digital display and computer control
3. Manual or Program control of test process
4. Multilevel Authorization Access
5. Perfection of diagramming functions
6. Test report creation as Excel, Word and Template
1.Packing with high quality standard to ensure safety when transportation.
2.Low delivery freight,because we are close to Qingdao Seaport.
3.Prompt shipment and keep you informed for delivery.
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
JINAN PRECISION TESTING EQUIPMENT CO., LTD is one of the top-ranking manufacturers and suppliers of testing technologies worldwide. With many years experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials testing.
The main products from JINAN PRECISION TESTING EQUIPMENT include hardness testers, universal testing machines, Sample preparation equipment, non-metal materials testing equipment, spectrophotometer, Temperature Chamber, which can used for testing metals, plastics, rubber, textiles, paper, paint, cement, concrete and packaging materials, etc. Their usage is very wide
1. How many years do your company in testing machine field?
More than 20 years.
2.Could you pls tell me the warranty?
1 year warranty time
3.What will you do if the machine cannot work during the warranty time?
Our egineer will be your place to fix it.
4.Do you have CE or any other certificate?
CE and ISO Certificate.
5.What is your payment way?
T/T or L/C ,as your like.
Our advantage:
--OEM,ODM avaliable.
--CE ISO Certification
--Near Qingdao sea port,high quality,good service
-- 200 workers,1000m2 non-dust workshop,about 20 years experience
--We have our own brand PTE and it has high reputation at home and abroad.We have so many agents in the world
What else can we supply?
1. Electromechanical Universal Testing Machine, LDW sereis, WDW sereis, WDW-D series etc
2. Hydraulic Universal Tesitng Machine WAW series, WAW-E sereies, WAW-C sereis.
3. Impact Test Machine JB series, JBW series, JBDW-Series etc (NIST Certificate)
4. Hardness Tester
5. Polisher and Grinding Machine
6. Polisher and Grinding Machine
7. Torsion Test Machine
Please feel free to contact us at any time and we can give you the fitable project !
