used universal testing machine WDW-300 300 kn
- 35 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
ball screw Electromechanical Digital Display/tensile/ compression /Universal Testing Machine LDW-100
-
Computer Control Strength/compression/tensile Universal Testing Machine WDW-E30 30KN
-
TDW-300 300KN computer control spring tensile and compression testing machine
-
WDW-100 100KN Door Type Computerized Electronic Universal Tensile Testing Machine
-
WDW-10 Electromechanical Computerized 10kn Compressive and Tensile Testing Machine for ROCKWOOL
-
High Quality Electronic Instron Tensile Testing Machine
Product Details
| Brand Name | PTE | Place of Origin | Shandong, China | |
| Model Number | WDW-300 | Power | Electronic | |
| Usage | Tensile Testing Machine |
Product Description

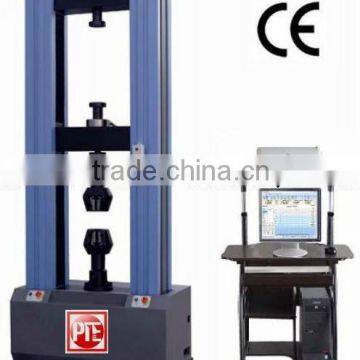

WDW-300 Computer Control Electromechanical Manual Universal Testing Machine 300KN
Applications:
WDW-300 Electromechanical Manual Universal Bend and Tensile Testing Machines are designed and manufactured according to ASTM, ISO, DIN, GB etc standards.
It is suitable for wide range of material for tension, compression, bending, shearing and low cycle test. With special grips, it can also do very special test as customer’s request.
It is for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Specifications:
Model | WDW-300 | WDW-200 | WDW-100 | WDW-50 | WDW-20 | WDW-10 |
Max. Load | 300KN | 200KN | 100KN | 50KN | 20KN | 10KN |
Load accuracy | ≤±1% | |||||
Load range | 2%-100% of full scale | |||||
Test speed | 0.01-250mm/min | 0.01-500mm/min | 0.01-500mm/min | |||
Speed accuracy | ≤±1% | |||||
Displacement resolution | 0.01mm | |||||
Effective test width | 570mm | 400mm | 400mm | |||
Effective tensile space | 600mm | 600 | ||||
Effective compression space | 700mm | 700mm | ||||
Dimension | 1130×650×2650mm | 830×550×2000mm | 760×500×1750mm | |||
Power supply | 380V, 3ph, 4/3KW | 220V, 1ph, 1.5KW | 220V, 1ph, 1KW | |||
Weight | 1800KG | 720KG | 460KG | |||
Grips | Wedge type, plate type and other grips as consumer’s demand | |||||
Load frame type | Gate type | |||||
Features:
- High accuracy servo motor to control test speed.
- Ball screw no backlash to guarantee the low noise and high driving efficiency
- High accuracy load cell to measure the test load
- High accuracy photoelectric encoder to measure the displacement.
- Maxtest software has strong function, it can show test load, displacement, test speed, test status, and also has the function of peak load holding, peak displacement holding and self return original position.
- Thousands of test fixture can be used according to d
ifferent test request;--can do different kinds testes - Compact structure with easy operation.
- Limit switch and setting in the software to guarantee the safety --double safety
Packaging Detail:
1. Inner package: dust-proof plastic bag
2. Outer package: standard export wooden case with pallet
3. Special packages: according to buyer's requirements
4. The packages suitable for international transport by sea, by air or any other delivery methods
--------------------------------------------------------------------------------------------------------------------------------------------------------
1. Pre-service
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
Our company is one of the top-ranking manufacturers and suppliers of test machines worldwide. With many years of experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials test.
For more product:
Compressive strength testing machine for concrete
| Model | YES-1000 |
| Load display accuracy | ±1% |
Distance between upper | 320mm |
| Diameter of lower platen | 300 mm |
| Piston stroke | 30mm |
| Pump nominated pressure | 40MPa |
-------------------------------------------------------------------------------------------------------------------------------------------------------
Strength testing machine (single column):
| Model | WDW-E1,E2, E3, E5, E10, E20, E30, E50, E100 |
| Max. Load | 1kN,2kN,3kN,5kN,10kN,20kN |
| Deformation accuracy | ≤±0.5% |
| Load speed | 0.005-500mm/min |
| Total crosshead travel (mm) | 1075 |
| Spacing of grip to grip(mm) | 750 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLG 300C PC Control High Frequency Fatigue Testing Machine
| Model | PLG-10C PLG-20C PLG-50C PLG-100C PLG-200C PLG-300C |
| Mean load max(kN) | ±10 .... |
| Load step | 1,2,5 |
| Accuracy of static load | ≤±1% |
| Range of frequency(Hz) | 60~300HZ |
| Power | 380V, 3phs, |
-------------------------------------------------------------------------------------------------------------------------
WAW Computer Control Servo Hydraulic Universal Testing Machine
| Model | WAW-300E WAW-600E WAW-1000E WAW-2000E |
| Max. Testing Load (kN) | 300 .... |
| Load Accuracy | ≤±1% from 2% to 100% of full scale |
| Strain accuracy | ≤±0.5% |
| Load frame Type | 4-column and 2-screw structure |
| Max. tensile space (Including piston | 690 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
Our product range:
1. Electromechanical Universal Testing Machine
2. Hydraulic universal testing machine
3. Spring testing machine
4. Fatigue testing machine
5. Creep and rupture testing machine
6. Horizontal tensile testing machine
7. Torsion testing machine
8. Cold bending testing machine
9. Cupping testing machine
10. Impact testing machine (Nist)
11. DWTT drop weight testing machine.
12. Compression testing machine
13. Friction and wear testing machine
Concact LISA for more information
