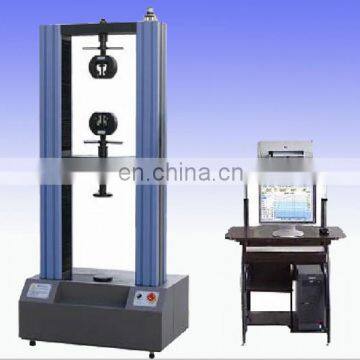

Double Coloum Electronic Tensile Testing Machine for Seat Belt

Jinan Precision Testing Equipment Co., Ltd.
Double Coloum Electronic Tensile Testing Machine for Seat Belt thumbnail-1
Double Coloum Electronic Tensile Testing Machine for Seat Belt thumbnail-2
Double Coloum Electronic Tensile Testing Machine for Seat Belt thumbnail-3
Double Coloum Electronic Tensile Testing Machine for Seat Belt thumbnail-4
Double Coloum Electronic Tensile Testing Machine for Seat Belt thumbnail-5
Double Coloum Electronic Tensile Testing Machine for Seat Belt photo-1
Double Coloum Electronic Tensile Testing Machine for Seat Belt photo-2

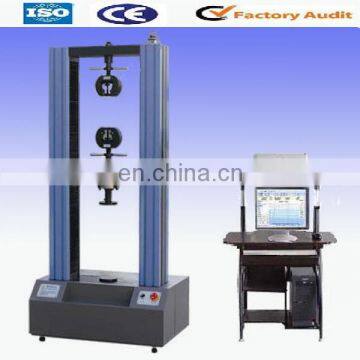

Double Coloum Electronic Tensile Testing Machine for Seat Belt photo-3
Double Coloum Electronic Tensile Testing Machine for Seat Belt photo-4

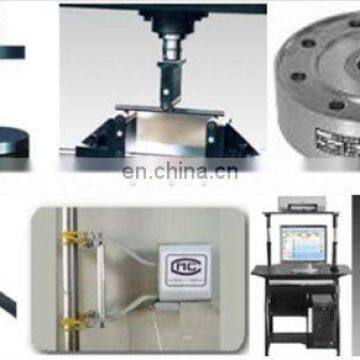

Double Coloum Electronic Tensile Testing Machine for Seat Belt photo-5
US$ 200 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
PTE
Place of Origin:
Shandong, China
Model Number:
WDW
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name PTE
Place of Origin Shandong, China
Model Number WDW
Power Electronic
Usage Tensile Testing Machine

100KN  Double coloum  Electronic Tensile Testing Machine for Seat Belt

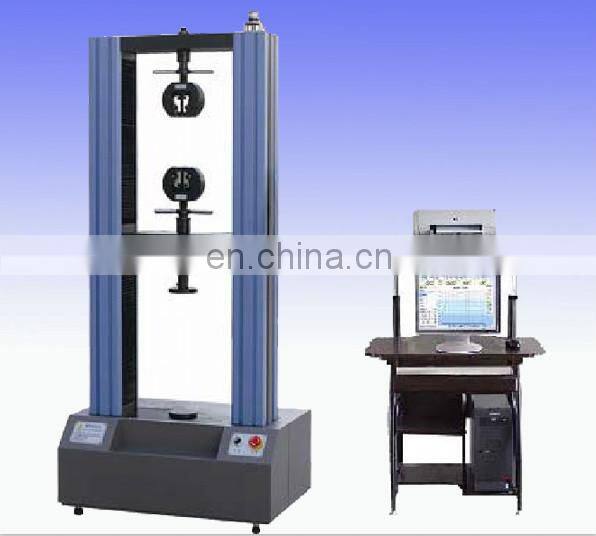

Double coloum Electronic Tensile Testing Machine for Seat Belt





Product Description



Electromechanical Testing Machines are designed and manufactured according to ASTM, ISO, DIN, GB etc standards. It is suitable for wide range of material for tension, compression, bending, shearing and low cycle test. With special grips, it can also do very special test as customer’s request. It is for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.



Specifications

Model

WDW-300

WDW-200

WDW-100

WDW-50

WDW-20

WDW-10

Max. Load

300KN

200KN

100KN

50KN

20KN

10KN

Load accuracy

≤±1%

Load range

2%-100% of full scale

Test speed

0.01-250mm/min

0.01-500mm/min

0.01-500mm/min

Speed accuracy

≤±1%

Displacement resolution

0.01mm

Effective test width

570mm

400mm

400mm

Effective tensile space

600mm

600

Effective compression space

700mm

700mm

Dimension

1130×650×2650mm

830×550×2000mm

760×500×1750mm

Power supply

380V, 3ph, 4/3KW

220V, 1ph, 1.5KW

220V, 1ph, 1KW

Weight

1800KG

720KG

460KG

Grips

Wedge type, plate type and other grips as consumer’s demand

Load frame type

Table type





Feature:

1. High Reliability,easy operate

2. Test system use high speed,low vibration motor drive unit .
3. Ball screw no backlash,low noise,high driving efficiency

4. High accuracy photoelectric encoder

5. Special testing machine software

6. Thousands of test fixture
7. High stiffness column

8. Limit switch to guarantee the safety



Accessories:

1.Can provide different accessories and do as customer's request for test fixtures & Grips.

2. Multi sensor supported.Many load cell and 4 extensometer can be define.

Software:

1. Multi languages supported,easy to control

2. Full digital display and computer control

3. Manual or Program control of test process

4. Multilevel Authorization Access

5. Perfection of diagramming functions

6. Test report creation as Excel, Word and Template











--------------------------------------------------------------------------------------------------------------------------------------------------------




Our Services





1. Pre-service
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan



Company Information




Our company is one of the top-ranking manufacturers and suppliers of test machines worldwide. With many years of experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials test.



Certificate:





For more product:





Compressive strength testing machine for concrete



ModelYES-1000
Load display accuracy±1%

Distance between upper
and lower platen

320mm
Diameter of lower platen300 mm
Piston stroke30mm
Pump nominated pressure40MPa



-------------------------------------------------------------------------------------------------------------------------------------------------------



Strength testing machine (single column):



ModelWDW-E1,E2, E3, E5, E10, E20, E30, E50, E100
Max. Load1kN,2kN,3kN,5kN,10kN,20kN
Deformation accuracy≤±0.5%
Load speed0.005-500mm/min
Total crosshead travel (mm)1075
Spacing of grip to grip(mm)750



-------------------------------------------------------------------------------------------------------------------------------------------------------



PLG 300C PC Control High Frequency Fatigue Testing Machine



ModelPLG-10C  PLG-20C PLG-50C PLG-100C PLG-200C  PLG-300C
Mean load max(kN)±10 ....
 Load step1,2,5
Accuracy of static load ≤±1%
Range of frequency(Hz) 60~300HZ
  Power 380V, 3phs,



-------------------------------------------------------------------------------------------------------------------------



WAW Computer Control Servo Hydraulic Universal Testing Machine



  Model  WAW-300E  WAW-600E  WAW-1000E  WAW-2000E
  Max. Testing Load (kN)  300 ....
  Load Accuracy  ≤±1% from 2% to 100% of full scale
  Strain accuracy  ≤±0.5%
  Load frame Type  4-column and 2-screw structure


Max. tensile space (Including piston
Travel) mm

  690



-------------------------------------------------------------------------------------------------------------------------------------------------------







Our product range:



1. Electromechanical Universal Testing Machine

2. Hydraulic universal testing machine

3. Spring testing machine

4. Fatigue testing machine

5. Creep and rupture testing machine

6. Horizontal tensile testing machine

7. Torsion testing machine

8. Cold bending testing machine

9. Cupping testing machine

10. Impact testing machine (Nist)

11. DWTT drop weight testing machine.

12. Compression testing machine

13. Friction and wear testing machine



Concact LISA for more information
