1KN 2KN Benchtop Lab Testing Equipment Universal Tensile/compression Strength Tester

1KN 2KN Benchtop Lab Testing Equipment Universal Tensile/compression Strength Tester photo-1
1KN 2KN Benchtop Lab Testing Equipment Universal Tensile/compression Strength Tester photo-2

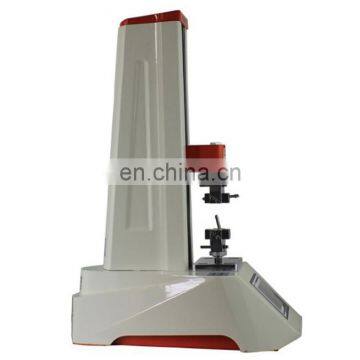

1KN 2KN Benchtop Lab Testing Equipment Universal Tensile/compression Strength Tester photo-3

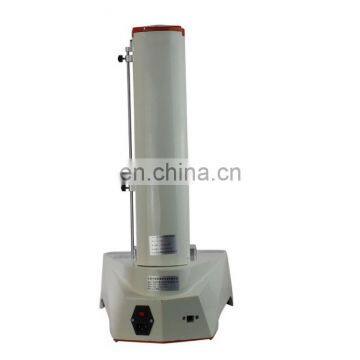

1KN 2KN Benchtop Lab Testing Equipment Universal Tensile/compression Strength Tester photo-4
1KN 2KN Benchtop Lab Testing Equipment Universal Tensile/compression Strength Tester photo-5
US$ 1,300 - 1,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ChuanBai
Place of Origin:
Shandong, China
Model Number:
ZLDS-2kn
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name ChuanBai
Place of Origin Shandong, China
Model Number ZLDS-2kn
Product Image
Product overview
Chuanbai ZLDSseries digital display electronic tensile strength tester primarily testing tensile, compression, bending, peeling, tearing and other mechanical properties test. Used for testing various materials such as textiles, rubber, plastics, metal materials, and non-woven fabrics.
Maximum test force:
2KN
Test machine level:
Level 1
Test force indication allowable error limit:
Within ±1% of the indicated value
Load measurement range:
2% to 100% FS of full scale
Displacement indication limit error:
Within ±1% of the indicated value
Displacement resolution:
0.01mm
Displacement speed adjustment range:
5-500mm/min
Displacement rate control accuracy:
When the speed is ≥1mm/min, within ±0.5% of the set value
Effective stretching space distance:
0-350mm
Equipment mainframe dimensions (length * width * height)
300*420*650(mm)
Power supply
220V, 50Hz
power
0.4KW
Machine weight
28KG
Language
English   (Computer control has more languages available)
Product selling point

Pin type clamp mounting head

Convenient to change fixture

Compressed payment

90mm in diameter

Standard tension clamp

Opening 8mm, clamping width 50mm

Line switch

Mechanical protection
Seven, product certification information
FAQ

1. Are you a manufacturer?

Yes, we are the largest manufacturer of universal tensile testing machines and have a history of more than 11 years.

2. Do you have after-sales service?

In general, every machine shipped from our factory provides 12 months of free maintenance. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions.

3. What is the delivery deadline?

Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.

4. What kind of packaging and transportation do you use?

Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.

5. Can the device be customized?

We can not only provide standard machines, but we can also provide customized machines according to your needs.At the same time, we can also place your trademark on the machine.

6. What kind of packaging do you use?

Plastic sealed and sturdy wooden box.

7. What payment methods do you support?

Paypal, T/T, Western Union and Escow.
