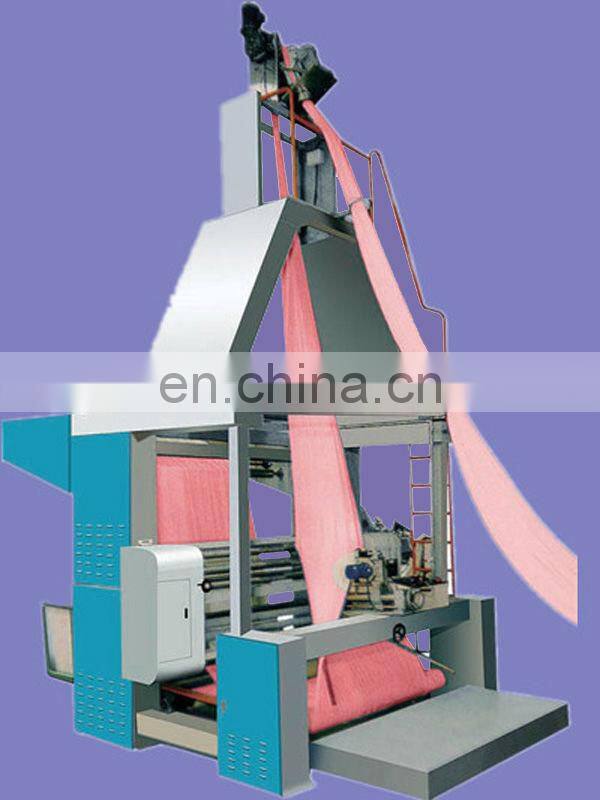

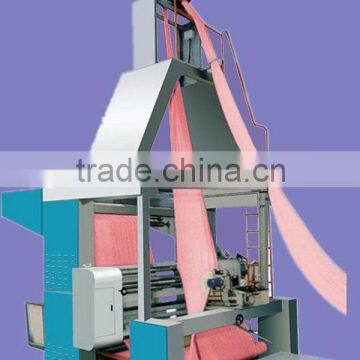

RH Rope Opener for Tubular fabric with slitting function /rope opening machine/fabric opening machine/slit opening machine
Usage
This type of Rope Opener for Tubular fabric with slitting function is suitable for detwisting ang slitting knitting,woven, tricot and weft knitted fabrics after dyeing and dehydration
Characteristics
1. New type detwister can be applicable to various fabrics , including ultrathin and silky fabrics too
2. Equipped with photoelectric auto.centering device to preserve fabrics' position.
3. Speed of main motor is adjustable via inverter,forward and reverse running.
4. Full set assembly including turn table,rope squeezer.slitting head, centering device, open width padder and plaiter is avaible
Technical parameters
|
1 |
Working Width |
2000mm-3000mm |
|
2 |
Speed |
10-80m/min |
|
3 |
Method of Operation |
Rope fed in while plaited in full width |
|
4 |
Type of Detwisting |
Automatically detwited via reducing motor 0.55KW*1set |
|
5 |
Centering Device |
Photoelectrically and pneumatically ,reducing motor 0.25KW*2sets |
|
6 |
Motor of Spreading |
0.55KW*2sets |
|
7 |
Motor of Main Transmission |
Main reducing motor 2.2KW*1set,motor for plaiting 1.5KW*1set |
|
8 |
Roller of Main Transmission |
160mm×3 |
|
9 |
Dimensions |
2680mm(L)*2800mm(W)*6800mm(H) |
