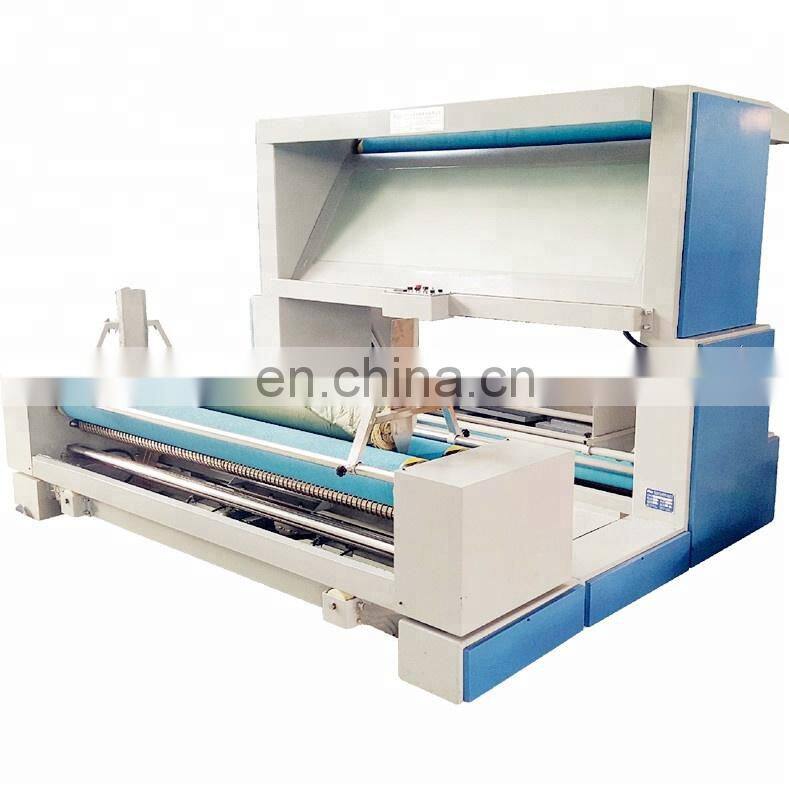

automatic cloth fabric rewinder inspection winding rolling measuring machine
Detailed Product Description
1.Automatic edge-alignment sytem is adopted
2.This fabric winding machine is easy to operate
TC-B Fabric Winding Machine of Giant Batch,fabric winding machine,winding machinery,rolling machine
Usage:Fabric winding machine is suitable for measuring and winding fabric in both big rolls and small rolls in the middle process, such as before recombination and coating.
Characteristics:
1. Photoelectric hydraulic edge-aligning system is adopted.
2. This fabric winding machine is equipped with expanding roller and bend roller.
3. Provided with device to crimple cloth roll neither too tight nor too loose.
4. Lamp-chimney and fabric inspecting can be installed.
5. Stepless speed change.
6.Two ways are special designed for fabric feeding and output to meet more dand fferent demands.
Technical parameters:
| 1 | Linear Velocity | 0~100m/min. |
| 2 | Main Motor | 3KW |
| 3 | Edge-alignment Accuracy | ±5mm |
| 4 | Dimensions | 3200mm(L)*2310mm(W)*2260mm(H) (double pillar) |
| 2280mm(L)*2000mm(W)*2470mm(H) (double pillar) |
