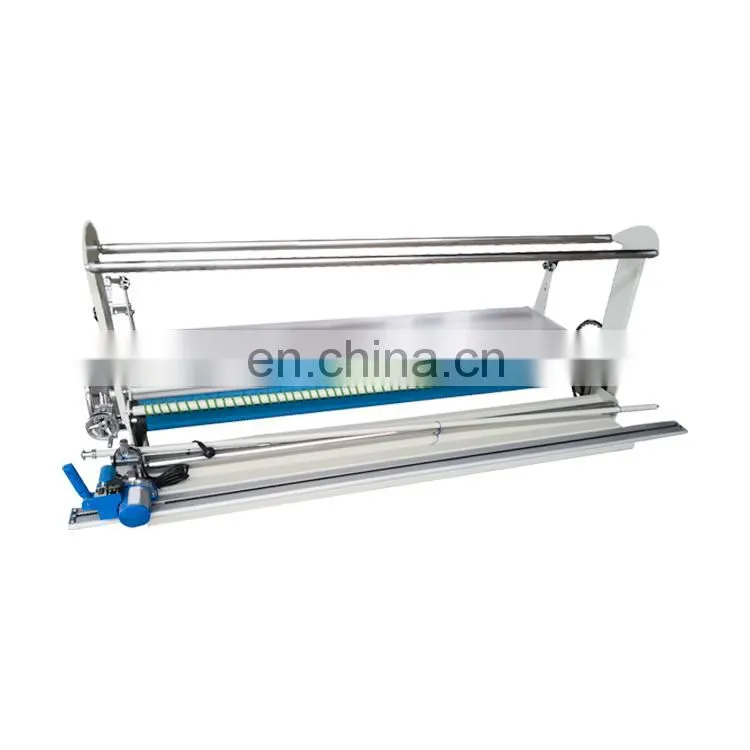

RH-500 Manual Fabric Spreader
US$ 1,300 - 1,300
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
REHOW
Place of Origin:
Jiangsu, China
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RH-500 Automatic Fabric SpreaderUS$ 1,300 - 1,800MOQ: 1 Set -
RH-500 Automatic Fabric Spreader MachineUS$ 500 - 1,000MOQ: 1 Set
-
Hot Sale RH-500 Automatic Fabric SpreaderUS$ 1,300 - 1,800MOQ: 1 Set
-
RH-500 Manual Fabric SpreaderUS$ 650 - 650MOQ: 1 Set
-
High Quality Automatic Fabric Spreader Machine Woven Cloth Pulling MachineUS$ 20,000 - 25,000MOQ: 1 Set
Brand Name
REHOW
Place of Origin
Jiangsu, China
Certification
CE
Warranty
12 months
Weight
500kg
Dimension(L*W*H)
3800*2400*1360mm
Condition
New
Voltage
380v
Automatic Grade
Automatic
RH-500 Manual Fabric Spreader
-
OPTION:Working width: 160-180-200-220-240 CM (63.0-70.8-78.8-86.6-94.5 inches)Fabric width
1500mm-3500mm
Table width
1880mm-3900mm
Spreader speed
0-60 m/min
Weight
1250 KG
Power
380V(50Hz/60Hz) 3KW
Dimension
3800mm*2400mm*1360mm
- Max roll diameter 50cm, weight 70kg, fabric thickness 5mm (each ply)
- Spread all type of fabric from Lycra to Denim, from Jersey to technical fabric.
- Max Spreading speed: 85 m/min with digital regulation
- Possible to work with or without catcher, one way face up spreading, face to face, zig-zac, tubular and reverse (with special devices)
- Cutting group with bi-directional cutter, moveable catcher at the beginning of the lay
- 4 driving wheels, Operator platform, Safety Devices on both sides.
- Automatic fabric edge (selvage) alignment.
- Automatic cutting group lift (max lay height 18 cm / zig-zac 14 cm)
- PLC controlled, electronic control of fabric tension to spread any kind of fabric from lycra to denim, from jersey to technical fabric
- Touch screen monitor schedule lay device up to 5 steps for standard version, up to 5 steps display for total plies, plies spread and to spread.
- Display: Total number of plies - plies to spread and plies already spread
- PLUS: Special belt cradle programable up to 10 steps and 5 colors, max spreading speed 100 mt/min & Brushless motors
- Chasis MAX 28: for lays up to 28cm or 24cm with zig-zac
- Reinforced cradle for roll max diameter 60cm and weight 150kg
- Calendar for tubular fabric and top-slide to guide fabric (working width always 140cm)
- Platform for fold fabric including opening bar
- Reverse roll kit
- Adjustable tubular divider from 180-230-300-430-640
- Device to rotate tubular fabric of 90 degree lateral platform
- Motorized loader from table to machine 412 Max 50Kg
- Motorized loader from floor max.150Kg
- Manual turning table with cradle for face to face spreading.
- Normal spreading table
- Air-blowing spreading table
- Conveyor spreading table
- Motorized Transfer Section directed.
