flexible drinking straw bending machine
The detail decription of the flexible straw bending machine
Performance parameters |
JH02-L4 |
JH02-L5/6 |
Speed (pcs/min) |
220 |
250 |
Inner dai (mm) |
3.8 |
4.3-8.0 can be choosed |
Length (mm) |
125-215 |
190-280 |
Thickness (mm) |
0.15-0.20 |
0.10-0.18 |
Past length (mm) |
35-48 |
35-48 |
Ring no |
10(10-12) |
11(10-13) |
Appearance size (mm) |
1700*1350*1600 |
|
Weight (Kg) |
1000 |
|
Total power(Kw) |
1.5(380V) |
|

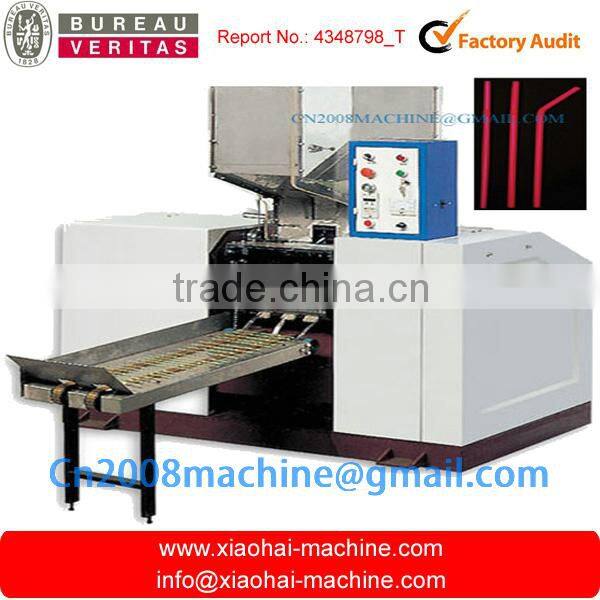

straw bending machine is an equipment used to bending straight drinking straws into flexible ones by second process. The entire operation, from product in-feed, forming to product out-feed, is automatically performed requiring the operator to add the material into the hopper loader only. The straight straws supplied in the hopper at the top of machine, are fed one by one into the main drum of the machine and clamped by two mechanical catches. This machine is composed of main body, main rotary device, forming system, electronic system and hopper etc.
the main drum has 12 or 18 mechanical hands and they work in continuous loop, thus high production can be achieved.
CHARACTERISTICS
1. can be customized for different pipe diameters.
2. With automatic counting function. Once the pre-set number is reached, the machine will alarm you, it is convenient for staff to calculate numbers.
3. Automatic stops when trouble occurs.

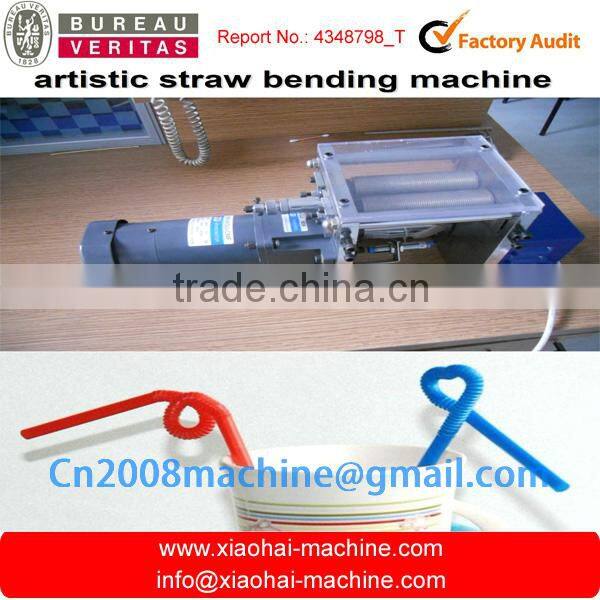

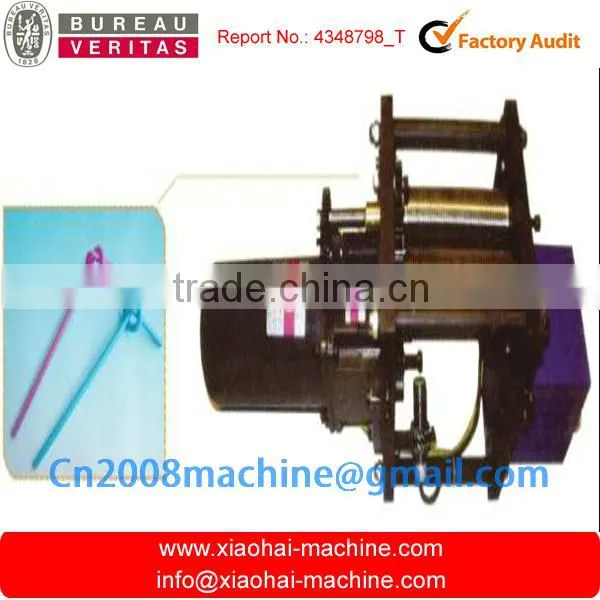

we also have manual type
