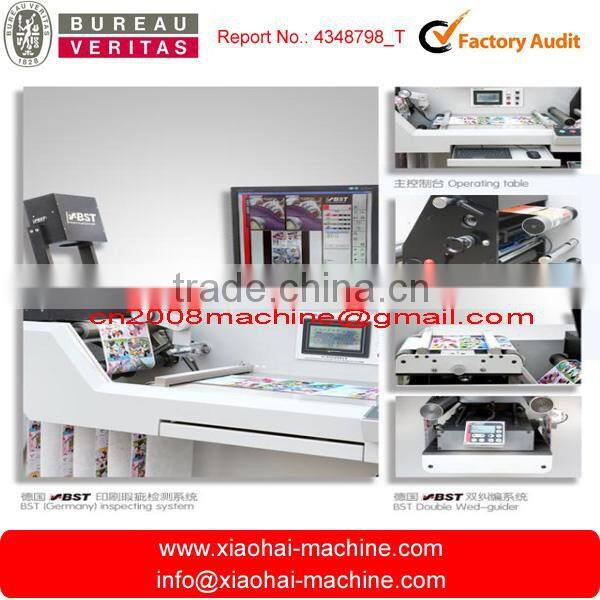

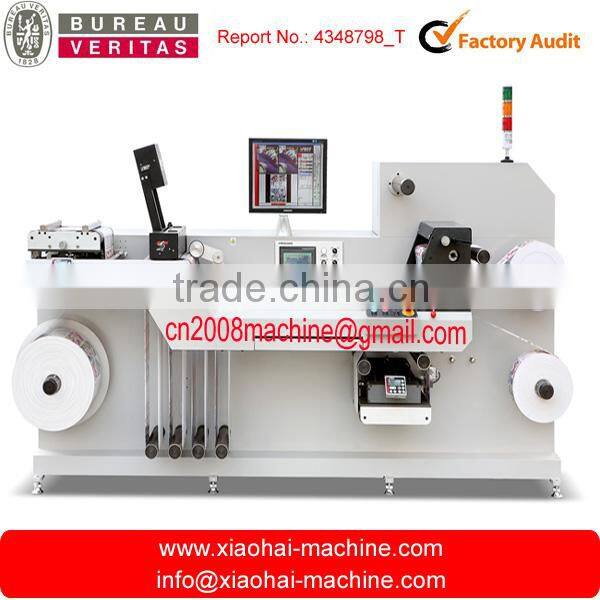

ZB-320 Automatic Label inspecting machine

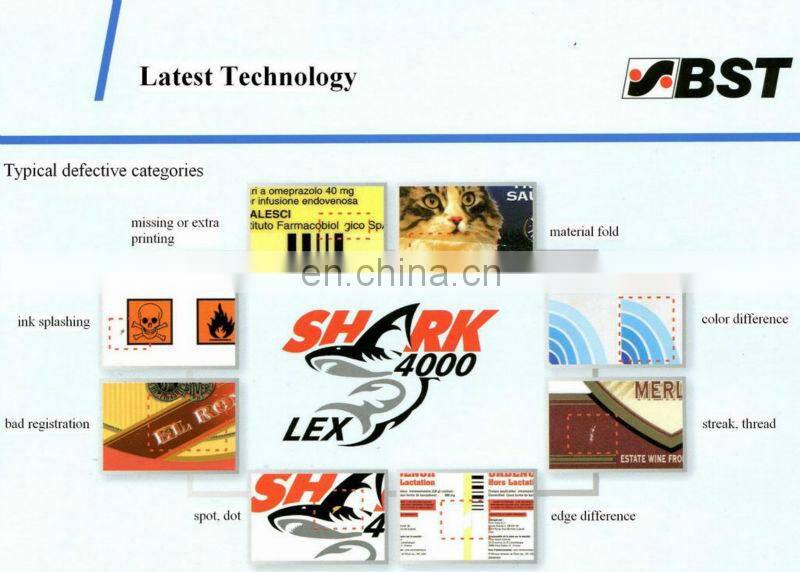

ZB-320 Auto Label inspecting machine adopts latest BST (Germany) inspecting system. It can detect defective labels such as missing label, color differnces, bad registration and scratched labels.
This machine equips with inline slitting unit, has the characteristic of fast speed, high accurate and easy operation, highly increased the final label quality and output.
Main technical parameters
|
Max inspecting speed |
160m/min |
|
Max Web width |
320mm |
|
Max Unwinder and rewinder dia. |
650mm |
|
Slitting width |
20mm-300mm |
|
Total power |
5kw |
|
Power supply |
380V/ 3P, 50Hz |
|
Machine weight |
1450kg |
|
Dimension |
2.85x1.0x1.5m |
Main specifications:
Camera:LCCD gray camera or color camera
Max web width:320mm
light:scattering light and direct light,back light is optional
max axial resolution: 0.07mm,depends on different application
Circumferential resolution:speed under 100m/min, 0.07mm
speed under 300m/min, 0.3mm
Min defecting size: 0.05 mm2
Material:transparent or reflective material are workable
Data communication:modem or DSL connecting
power:90V-132V,50/60Hz,400VA;198V-264V,50/60Hz,400VA
working temperature: 0-40°C
humidity: 20%-80%,no coagulate;
stock temperature:-10-55°C
