spare parts for bag making machine
we sell all kinds of spare parts
Description of Machine:

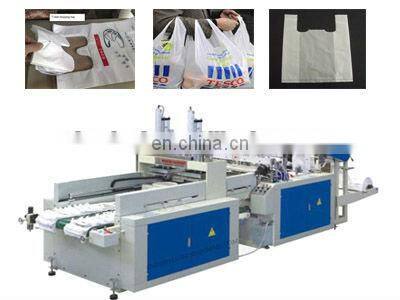

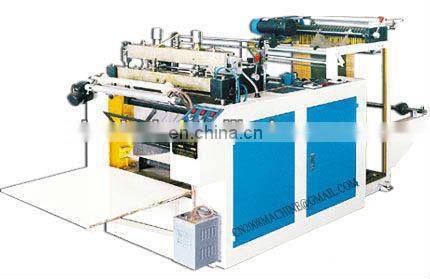

DZC series Full automatic with puncher Plastic Bag Making Machine
Usage:
1.This machine is special for making unprinted or printed T-shirt bag.The machine finish the feeding, sealing, cutting, punching and transporting only in one process.
2.This machine is equipped with computer to set the bag length and batch etc.to make the bag automaticlly,also the machine is with photocell, automatic material feeding device,automatic constant temperature control device, electrostatic removing device,automatic counting and alarm device etc.It's easy operation, stable performance and with high producing speed. This machine is the best machine to make T-shirt bag if you want to save labor.
| Specification: | |||
| Model No. | DZC-500 | DZC-600 | DZC-700 |
|
Max.Width of Sealing & Cutting |
450mm | 550mm | 650mm |
| Length of Sealing & Cutting | 950mm | 950mm | 950mm |
| Speed of Bag-making | 40-120pcs/min | 40-120pcs | 40-120pcs/min |
| Power of Main Motor | 1.1kw | 1.1kw | 1.5kw |
| Weight of Machine | 800kg | 850kg | 900kg |
| Dimension(mm) |
4200x1200x1550 |
4200x1350x1550 |
4200x1450x1550 |

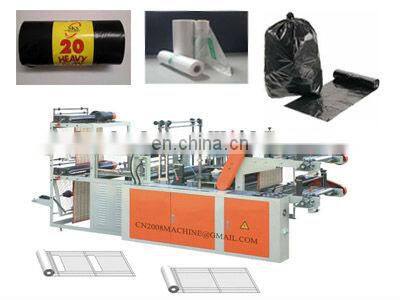

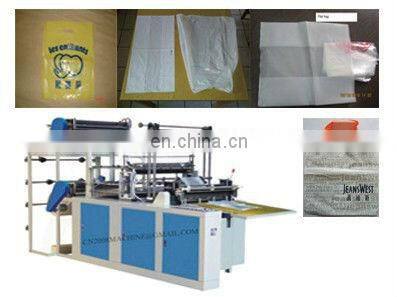

DZB series Computer Control Double Layer T-Shirt And Flat Bag On Roll Bag Making Machine
Usage:
1.This machine is special for making unprinted or printed T-shirt bag or flat-open bag or garbage on roll.
2.This machine is equipped with computer to set the bag length and batch etc.to make the bag automaticlly,also the machine is with photocell, automatic material feeding device,automatic constant temperature control device, electrostatic removing device,automatic counting and alarm device etc.It's easy operation, stable performance and with high producing speed. This machine is the best machine to make T-shirt bag.
| Specification: | |||
| Model No. | DZB-400 | DZB-500 | DZB-600 |
|
Max.Width of Sealing & Cutting |
350mm | 450mm | 550mm |
| Length of Sealing & Cutting | 100-1000mm | 100-1000mm | 100-1000mm |
| Speed of Bag-making | 40-120pcs/min | 40-120pcs | 40-120pcs/min |
| Power of Main Motor | 1.1kw | 1.1kw | 1.5kw |
| Weight of Machine | 800kg | 850kg | 900kg |
| Dimension(mm) |
3300×1100×1500 |
3300×1200×1500 |
3300×1300×1500 |

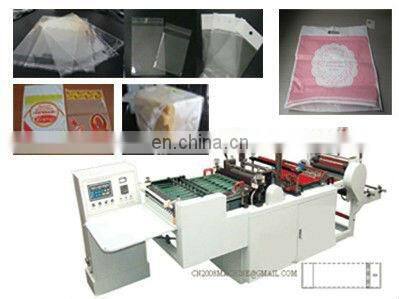

RFQ series Computer Control Side Heat Sealing And Heating Cutting Bag Making Machine
Usage:
1.This machine is suitable for side heat sealing and cutting,It is a kind of ideal machine to make BOPP ,OPP,PP,PE material's socks bag,towel bag,bread bag,ornament bag etc pakcing bag.
2.This machine is equipped with computer to set the bag length and batch etc.to make the bag automaticlly,also the machine is with adhesive tape device,lace heat sealing knife,hole puncher,photocell, automatic material feeding device,automatic constant temperature control device, electrostatic removing device,automatic counting and alarm device etc.It's easy operation, stable performance and with high producing speed.
| Specification: | |||
| Model No. | RFQ-400 | RFQ-500 | RFQ-600 |
|
Max.Width of Sealing & Cutting |
30-400mm | 30-500mm | 30-600mm |
| Length of Sealing & Cutting | 25-500mm | 45-600mm | 50-700mm |
| Speed of Bag-making | 30-240pcs/min | 30-240pcs | 30-240pcs/min |
| Power of Main Motor | 3.5kw | 3.5kw | 3.5kw |
| Weight of Machine | 800kg | 850kg | 900kg |
| Dimension(mm) |
3500×900×1300 |
3500×1000×1300 |
3500×1100×1300 |
SHXJ-B series Computer Control Double Layer Heat Sealing And Cold Cutting Bag Making Machine
Usage:
1.This machine is suitable for sealing and cutting HDPE, LDPE and PP plastic film.It is one of the best equipment for producing plastic unprinted and printed T-shirt bag and flat bag.
2.This machine is equipped with computer to set the bag length and batch etc.to make the bag automaticlly,also the machine is with photocell, automatic material feeding device,automatic constant temperature control device, electrostatic removing device,automatic counting and alarm device etc.It's easy operation, stable performance and with high producing speed. This machine is the most economical and suitable sealing and cutting bag-making machine for large, middle and small size soft packing enterprises.
| Specification: | |||
| Model No. | SHXJ-B600 | SHXJ-B700 | SHXJ-B800 |
|
Max.Width of Sealing & Cutting |
550mm | 650mm | 750mm |
| Length of Sealing & Cutting | 1200mm | 1200mm | 1200mm |
| Speed of Bag-making | 120-200pcs/min | 120-200pcs | 120-200pcs/min |
| Power of Main Motor | 1.1kw | 1.5kw | 1.5kw |
| Weight of Machine | 750kg | 850kg | 950kg |
| Dimension(mm) |
3500×900×1300 |
3500×1000×1300 |
3500×1100×1300 |
DFR Series Computer Control Heating Sealing And Heat Cutting Bag Making Machine
(This machine is used to make t-shirt bag.)
Usage:
1.This machine is special for making unprinted or printed T-shirt bag.The bag is with strong butttom sealing for heavy duty packing.
2.This machine is equipped with computer to set the bag length and batch etc.to make the bag automaticlly,also the machine is with photocell, automatic material feeding device,automatic constant temperature control device, electrostatic removing device,automatic counting and alarm device etc.It's easy operation, stable performance and with high producing speed. This machine is the best machine to make T-shirt bag.
| Specification: | |||
| Model No. | DFR-500 | DFR-600 | DFR-700 |
|
Max.Width of Sealing & Cutting |
450mm | 550mm | 650mm |
| Length of Sealing & Cutting | 1000mm | 1000mm | 1000mm |
| Speed of Bag-making | 40-120pcs/min | 40-120pcs | 40-120pcs/min |
| Power of Main Motor | 0.75kw | 0.75kw | 1.1kw |
| Weight of Machine | 750kg | 850kg | 950kg |
| Dimension(mm) |
2600×1100×1500 |
2600×1200×1500 |
2600×1300×1500 |

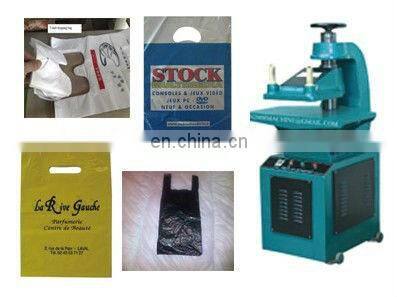

X 625 Hydraulic Type Punching Machine
Usage:
It is used to punching the shape of the T-shirt bag,hole bag,thin leather.You can punch all kinds of design of the bag by changing the punching knife.
| Specification: | |||
| Model No. | X 625 | ||
|
Power of main motor |
1.1kw | ||
| Working pressure | 10T | ||
| Clamp travel | 5-75mm | ||
| Distance between workable and clamp | 150-215mm | ||
| Weight of Machine | 800kg | ||
| Dimension(mm) |
1000×800×1300mm |
||
Remark:
We also have wider width machine,if you want to make special length and width bag,please feel free to contact us.we will provide you details thanks...
