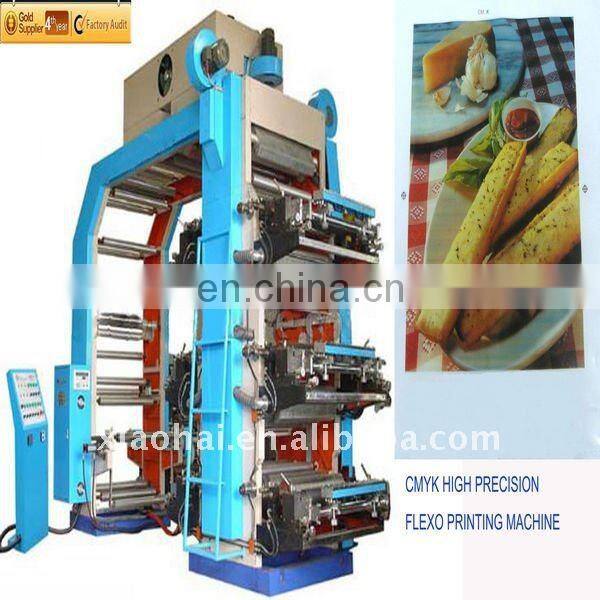

Plastic Bag and Film Six Colors Flexography Printing Machine
- Ningbo China
- T/T Credit Card
You May Like
-
Water Wash Or Chemical Washing Photo Polymer Plate Making Machine For Corrugated Box , Flexo Machine
-
Six Color Plastic Bag Printer
-
HAS VIDEO Rubber Or Resin Polymer Flexo Plate Making Machine (Water Wash or Chemical Wash) for Printing Machine
-
TB Series Flexo Plate Mounting Machine
-
HAS VIDEO TB Series Flexographic Sleeve Flexo Plate Mounter
-
2014 NEW Plastic Inkjet Direct Printing Machine
Product Details
| Brand Name | XIAOHAI | Place of Origin | Zhejiang, China | |
| Model Number | YT-6600 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
film packings
Product Description
Usage:
It is suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and paper in roll, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
It's quite commonly used for small order quantity printing service.
Performance and Features
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Specification:
Model No. | YT-6600 | YT-6800 | YT-61000 |
Max.Web Width | 600mm | 800mm | 1000m |
Max.Effective Printing Width | 560mm | 760mm | 960mm |
Range of Repeat Printing Length | 191~914mm | ||
Max.Diameter of Roll Material | 450mm | ||
Printing Speed | 5-50m/min | ||
Plate Thickness(Both side adhesive tape included) | 2.38mm | ||
Total Power | 15kw | 19.5Kw | 24Kw |
Weight of Machine | 3500kg | 4200kg | 5000kg |
Machine Dimension | 4300×1700×2950mm | 4300×1900×2950mm | 4300×2100×2950mm |
Remark:
We also have wider width machine,if you want to print wider width film,please feel free to contact us,we will provide you details.thanks.
Company Profile
We are a Big Group specializing in making all kinds of printing and plastic machines, such as plastic bag whole line machines (film blowing machines, flexo and gravure printing machines, lamination machines, all kinds of bag making machines), disposable glove making machines, plastic cup and paper cup making whole line machines, drink straw making whole line machines, label whole line making machines, and paper cutting whole line machines.
