Brown Kraft Paper Shopping Bags With Twist Handle Making Machine

Brown Kraft Paper Shopping Bags With Twist Handle Making Machine photo-1
US$ 80,000 - 120,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
XIAOHAI
Place of Origin:
Zhejiang, China
Model Number:
SBR-290
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO Port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name XIAOHAI
Place of Origin Zhejiang, China
Model Number SBR-290

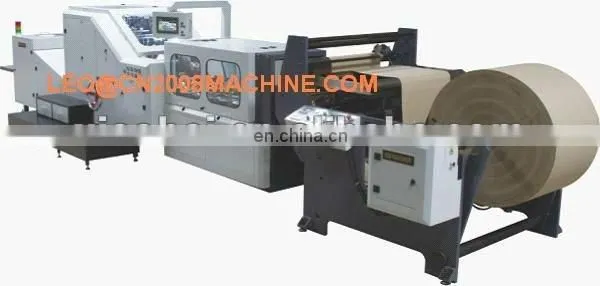

High Speed Roll Feeding Square Bottom Paper Bag Making Machine



Features:

This machine is designed to manufacture square bottom paper bags from paper roll in blank or printed. Side gluing, tube forming, cutting, bottom creasing, bottom gluing, bottom forming and final product out feed can be completed within one time by this machine. It is ideal equipment for making paper bag for foodstuff bag, shopping bag and so on. Controlled by PLC system, equipped with in-touch screen and servo motor for bag length control, this machine can produce different size paper bag



Technical Paremter:



MODEL

SBR-290

Width of Paper roll

320-930 mm  ( 12.60"-36.61" )

Length of Bag

155-505 mm  ( 6.10"-19.88" )

Width of Bag

80-290 mm   ( 3.15"-11.42" )

Width of Bag Bottom

60-160 mm   ( 2.36"-6.30" )

Paper weight

60-180 g/m2

Max. Diameter of Paper Roll

1500 mm   (  59"  )

Internal Diameter of Roll Core

76 mm    ( 2.99" )

Max.Speed

200 pcs/min

Total Power

15Kw

Weight of Machine

Approx 9000 kg

Overall Dimension(L*W*H)

8600 mm × 2500 mm × 1800 mm



SAMPLES:



 Brown Kraft Paper Shopping Bags with Twist Handle Making Machine



 Brown Kraft Paper Shopping Bags with Twist Handle Making Machine
