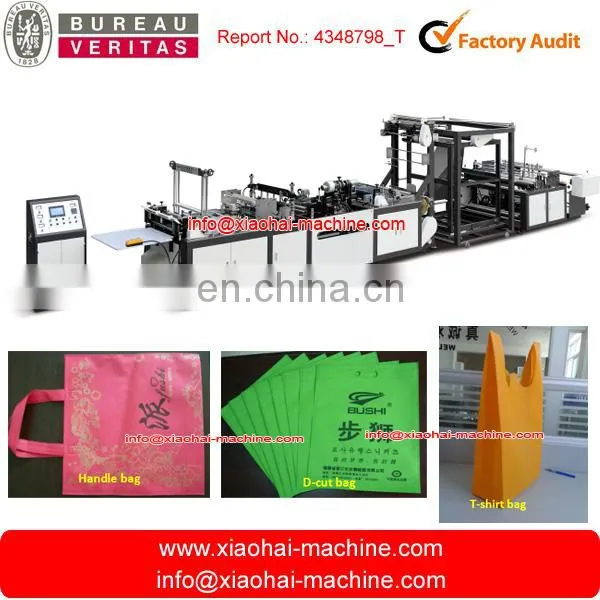

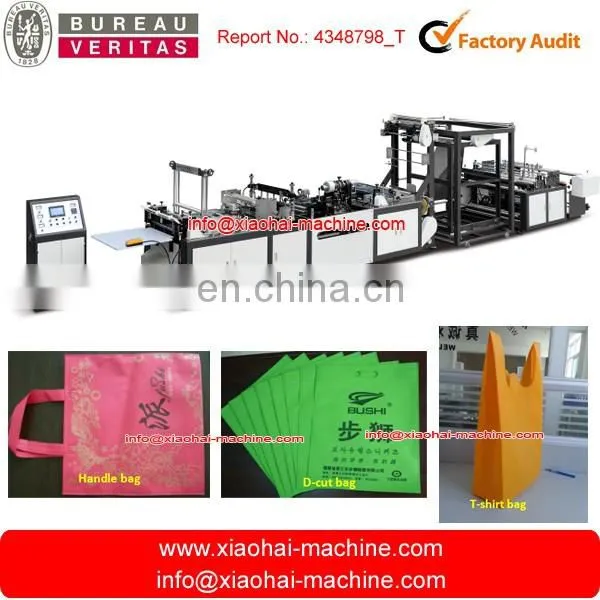

2016 NEW ultrasonic nonwoven bag making machine
Scope of application:
The machine is multifunction, fast, with stable quality, using non-woven fabric as raw material, can be processed to many of different specifications, different shapes of non-woven bags, such as gift bag, stereo bag, handbag, flat pocket, vest bag, etc., is favored by clients, reach European CE safety standards.
Characteristic:
1. The machine adopts Taiwan touch screen computer monitor, PLC programmable computer program.
2. Automatic counting, can set any number to stop.
3. Arbitrary fixed-length, printing color code tracking location, without material automatic stop.
4. High voltage electrostatic processors, automatic constant temperature heating control list.
5. The machine is controlled automatic triangulation pedicure, stereo pressure welding, automatic pneumatic hand in surprise, automatic stereoscopic bag positioning indentation.
6. Emptying magnetic powder manual tension control, automatic correction control.
7. The machine adopts full aspects ultrasonic welding, pocket ruffled welding, bottom welding, bag side welding, automatic non-woven bag making machine a complete, bag making machine speed operation convenient welding strong, beautiful and easy.
8. This machine for the present domestic latest automatic non-woven bag making machine, has the full automatic wrist band welding; To reduce the labor costs, improve the production efficiency.
Main Technical:
|
700Model |
|||
|
Bag Type |
Flat bag |
Stereo bag |
Vest bag |
|
Length (mm) |
100-700 |
300-600 |
300-600 |
|
Width (mm) |
300-650 |
350-550 |
150-420 |
|
Speed (pcs/min) |
10-23/20-110 |
10-23/20-50 |
20-70 |
|
Material Thickness (g) |
35-100 |
45-85 |
35-60 |
|
Gusset Size (mm) |
30-90 |
30-80 |
30-120 |
|
Handle Band Thickness (g) |
40-100 |
||
|
Handle Band Length(mm) |
370-600 |
||
|
Handle Band Width(mm) |
25-35 |
||
|
Power Supply |
380v 3Phase 4lines |
||
|
Air Pressure |
0.36 |
||
|
Main Power(kw) |
20 |
||
|
Machine Weight(kg) |
4200 |
||
|
Packing Weight(kg) |
4500 |
||
|
Dimension (L*W*H) (mm) |
9000x1300x1800 |
||
|
Vest Bag Puncher(pcs) |
5-10 |
||
|
Puncher Dimension(mm) |
2800x1200x1900 |
||
