Home > Products > Measuring instrument > Factory Direct Supply Best Survey Instrument Total Station
Factory Direct Supply Best Survey Instrument Total Station
US$ 1,000 - 1,299
/ Set
1 Set(Min. Order)
- T/T Credit Card
You May Like
-
Trending Hot Products Excellent Accuracy Best Used Total Station
-
High Quality Factory Price China Second Hand Total Station Parts
-
Custom Made Good Performance Survey Instrument Total Station China
-
Best Quality Excellent Accuracy Digital Types of Used Theodolite
-
Professional Supply Reliable Quality Electronic Types of Theodolite Tripod
-
Best Total Station Price
Product Details
| Brand Name | BT | Place of Origin | Hebei, China | |
| Model Number | DTM626R |
Product Description

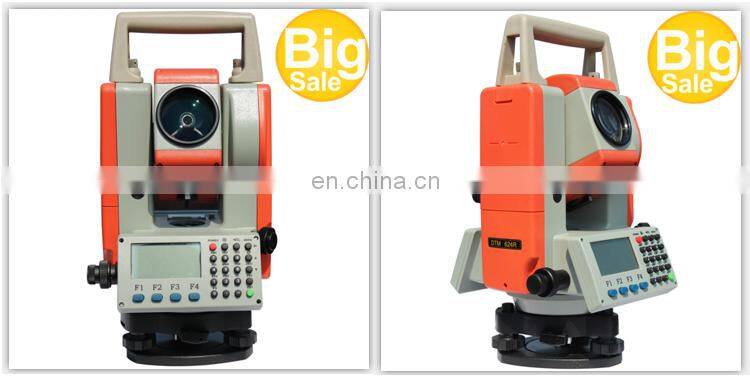

Reflectorless Total Station DTM626R
| Distance measurement | ||
| Max distance (in good weather) | Singles prism | 3.0 Km |
| Three prisms | 5.0Km | |
| No-prism | 0.3~600m | |
| Digital display | Max: 99999999.9999 m Min.: 0.1 mm | |
| Precision | No-prism 5+3ppm, have-prism 2+2ppm | |
| Unit | m/ft for selection | |
| Time for measuring | Single fine measurement 2 sec. tracking 0.8 sec | |
| Number of measurements | 1~ 99 | |
| Meteorologic correction | Automatic correction of input parameter | |
| Atmospheric refraction and earth curvature correction | Automatic correction of input parameter, K=0.14 | |
| Prism constant correction | Automatic correction of input parameter | |
| Angle measurement | ||
| Angle measurement method | Absolute code | |
| Grating disc dia. (horizontal, vertical) | 79mm | |
| Min. reading displayed | 1″ | |
| Detection method | Horizontal circle: 2 sides | |
| Vertical circle: 2 sides | ||
| Precision | 2″ | |
| Telescope | ||
| Imaging | Right reading | |
| Barrel length | 170mm | |
| Objective lens effective aperture | 48mm | |
| Magnification | 30× | |
| Viewing angle | 1°30′ | |
| Resolution | 3.5″ | |
| Min. focus distance | 1.5m | |
| Automatic vertical compensator | ||
| System | Single axis, double axis liquid electronic sensor compensation | |
| Work range | ±3′ | |
| Precision | ±3 ″ | |
| Level | ||
| Plate level | 20″/2mm, 30″/2mm | |
| Circular level | 8′/2mm | |
| Optical plummet | ||
| Imaging | Right reading | |
| Magnification | 3× | |
| Focusing range | 0.5m~∝ | |
| Viewing angle | 5° | |
| Display | ||
| Type | Two sides, graphically | |
| Data transmission | ||
| Interface | RS-232C | |
| Battery | ||
| Power supply | Rechargeable Ni-MH battery, rechargeable lithium battery | |
| Volt. | Lithium battery: DC7.6V; Ni-MH battery: DC7.2V | |
| Continuous operation time | 8 hours | |
| Size and weight | ||
| Size | 174×207×383mm | |
| Weight | 6.8kg | |
