Home > Products > Asphalt testing equipment > Asphalt testing equipment LD-5 Electric Marshall stability tester
Asphalt testing equipment LD-5 Electric Marshall stability tester
US$ 1,000 - 3,000
/ Set
1 Set(Min. Order)
- Tianjin
- T/T Credit Card
You May Like
-
ring and ball testing apparatus,automatic digital ring and ball apparatus
-
Capillary Viscometer Method Bitumen Kinematic Viscosity Apparatus
-
Steel marshall compaction mould for automatic compactor
-
Digital automatic asphalt bitumen penetrometer to do needle penetration test
-
Digital displayed asphalt dynamic viscometer for determining viscosity of the flow state
-
Asphalt Automatic extraction apparatus for separation and extraction
Product Details
| Brand Name | C-tech | Place of Origin | Hebei, China | |
| Model Number | LD-5 | |||
Product Description
Product Description

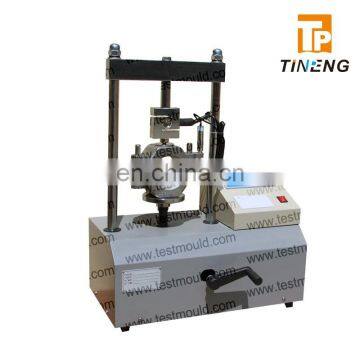

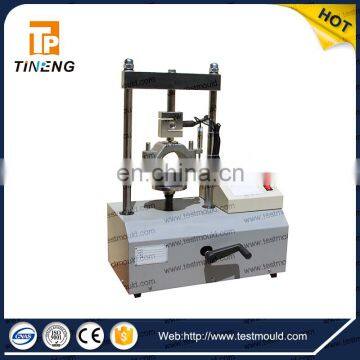

Asphalt testing equipment LD-5 Electric Marshall stability tester
STANDARD: ASTM D1559, AASHTO T245, NF P98-251-2, CNR No. 30, ASTM D5581 (6” dia. specimens)
Model no.: LD-5
Max Capacity: 50kN
Test Rate: 50.8mm/min
Cross Head Travel: 70mm
Displacement Probe Travel: 15mm
Verticial Clearance: 300mm
Horizontal Clearance: 270mm
Dimension(mm): 590(L)X310(W)X750(H)
Approx. Weight: 90kgs
Power: 220V, 50/60Hz, 1 ph, 0.5Hp,2.3A
Comprises:
LD-5/01 50 kN 'S'Type Load Cell
LD-5/02 Dispacement Transducer Probe
LD-5/03 4 inch Diameter Stability Mould
LD-5/04 Handle(Manual Adjustment)
Accessories and spare parts: (need to be ordered seperately)
LD-5/05 6 inch Marshall Stability Mould
LD-5/06 Mini Printer
LD-5/07 Printer Paper Roll(3pcs/pack)
LD-5/08 Tensile Splitting Device (100, 150 & 160 mm Dia.
LD-5/09 LEUTNER Head (100 mm Dia.)
Packaging & Shipping
Packaging:Standard exporting carton meet the long transportation requirement.
Shipping:Shipping by air,sea,express are all available,we'll help you with transportation selection according to goods quantity.
Our Services
·We supply a wide range of product to meet your various needs.
·Experienced sales team help you with equipment selection.
·Special equipment specification can be customized according to your requirements.
·Enthusiastic after sale service.
