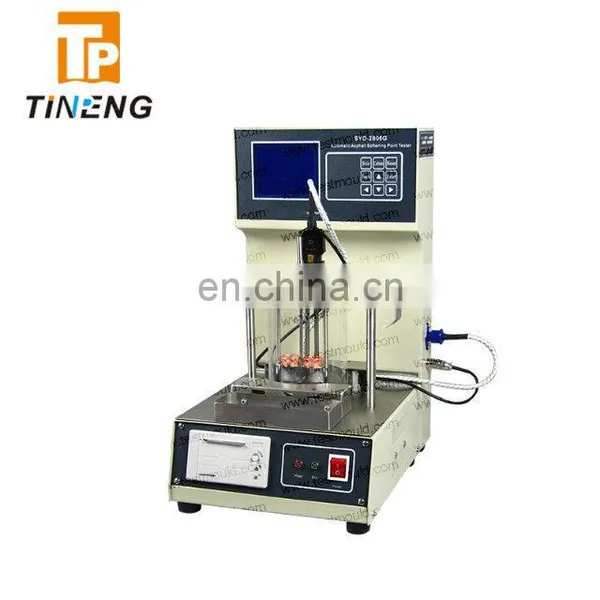

SYD-2806G Automatic ring and ball softening point test apparatus
STANDARD: EN 1427, ASTM D36
This advanced microprocessor controlled automatic tester is used to determine the softening point of bitumen using, as heating fluid, water or glycerol. The softening point is taken by two light barriers suitably positioned and the temperature measured by a PT100 sensor placed in a middle position. During operation a magnetic stirrer with adjustable speed assures temperature uniformity in the vessel.
The temperature gradient is strictly maintained throughout the test by the electronic system conforming to the standards. It is used to test the temperature of asphaltum when asphaltum softens and drops 25mm under the heating conditions. Computer-controlled temperature rising speed, data checking, data saving and data processing.
Model SYD-2806G
Measure range: 5~80 32~160
Calefactive speed: 5±0.5/min
Diameter of steel Ball: 9.53 mm
Weight of steel Ball: 3.5±0.05 g
Volume of heating container: 1000 ml
Packing size: 480x360x600 mm
Gross weight: 19 Kg
Net weight: 14 Kg
Computer-controlled temperature rising speed, automatically data checking, data saving and data processing or RS232.
