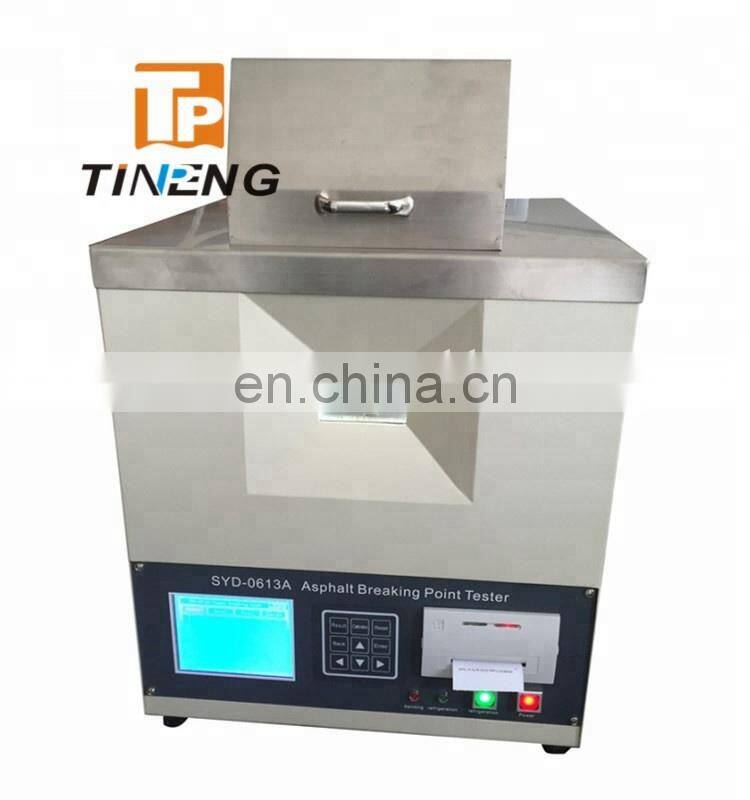

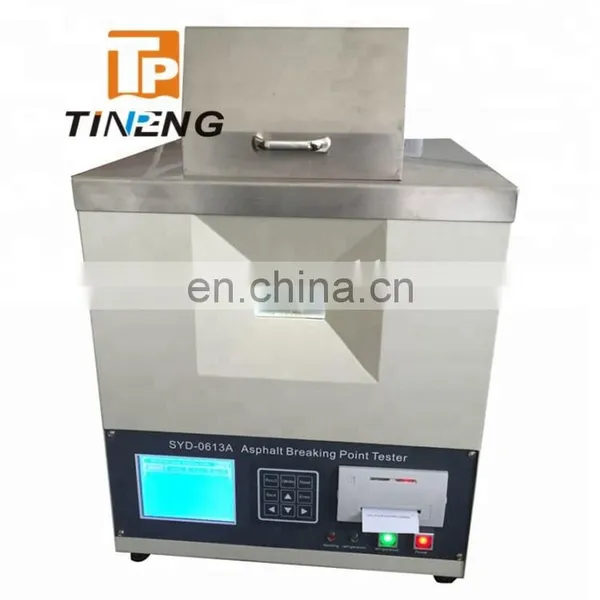

Automatic asphalt breaking point apparatus (FRAASS method)
STANDARD: EN 12593
It is suitable to determine Fraass Breaking Point of bituminous materials.

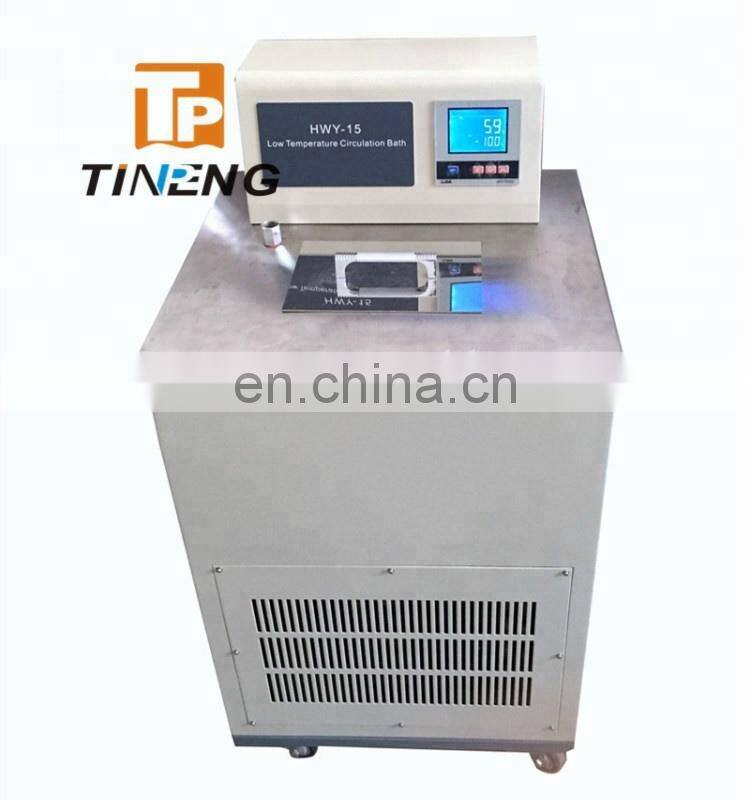

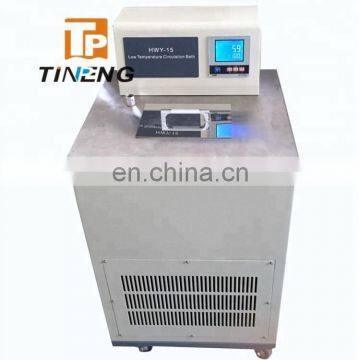

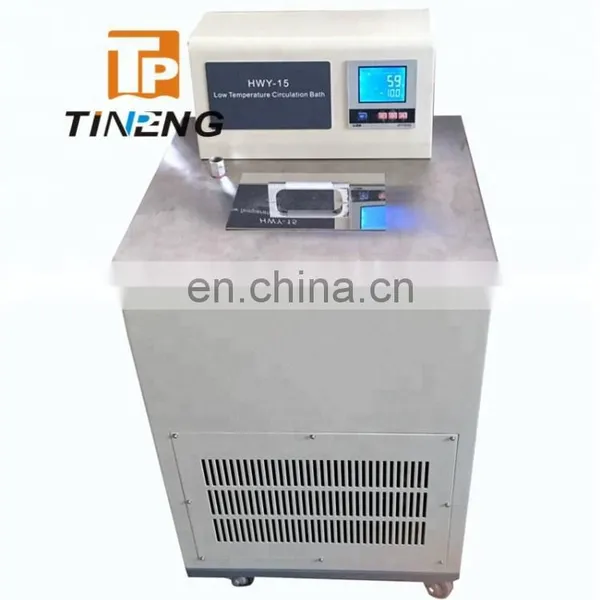

The tester includes two part they are model HWY-15 low temperature circulation constant bath and breaking point main unit.
Model SYD-0613A
Power supply: AC 220V±10%, 50 Hz
Cooling mode: by water by water
Cooling rate: 1℃±0.5℃/min
Temperature measurement range: -27℃~25℃
Temperature measurement error: ±0.5℃
Size of steel sheet: 41×20×0.15(mm);
Sample quantity: it can make determination for 3 pieces of samples at the same time;
Ambient temperature: room temperature~+30℃;
Relative humidity: 85%;
Total power consumption: not more than 450 W;
Note: “low temperature circulation constant bath” power consumption: not more than 1600W
Dimension: 500mm×400mm×570mm(main unit)
Package: export standard wooden case
