Master Series Laboratory Water Distillation Machine

Master series water purification system

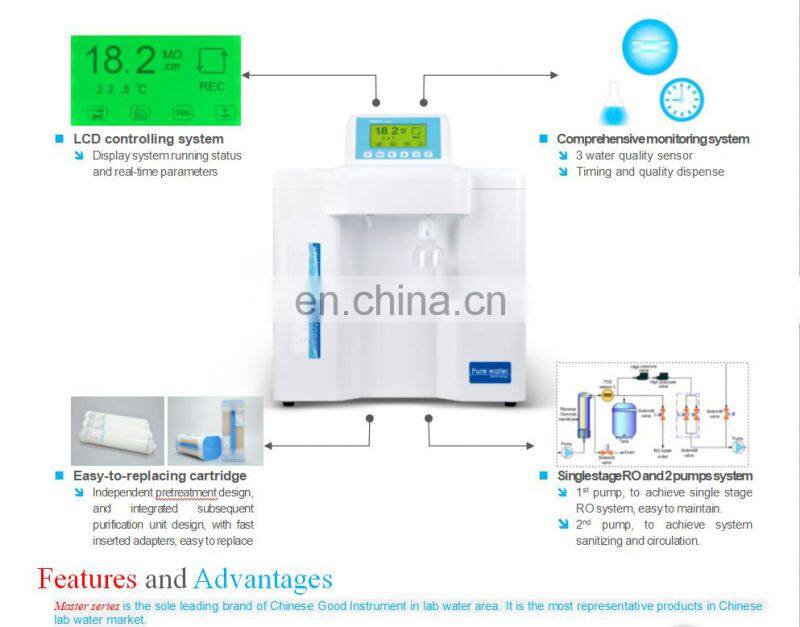

n LCD (resolution: 240×128, dimension: 106×57mm) controlling system, intuitively display the system running state and various parameters.

n 3 way online water quality sensor, detect the quality of feed water, RO water, deionized water, or ultrapure water respectively. And warn once water quality’s standard exceeding.

n Cartridges replacing alarm function, based on time and water quality, show cartridges’ used and residual life.

n Multiple alarm function: no feed water, full water, water quality’s standard exceeding, and cartridge life ending.

n Auto self-flushing of RO membrane function, extend RO membrane’s life.

n Auto running data storing function through RS232/USB communication port to computer for 1 year at least (optional).

n System sanitizing procedure, achieve the disinfection of ultrapure water’s tube and valve.

n System circulation function, achieve ultrapure water’s circulation to keep top quality of ultrapure water.

n Level II password, protect all the parameters setting, and prohibit any unauthorized setting change.

n Water dispensing function- timing and quality (time range: 1-99min, water quality range: 0.1-18.2MΩ.cm).

n External water tanks is optional to meet different need and assure ample water-supply.

n Whole plastic shell with high-strength, avoid rusting and keep clean, to meet GLP standard.

n 3 door and easy-to-replacing cartridge design, convenient to maintain system and replace cartridges.

n Tube and adapter with NSF authorization and top quality, reduce TOC level and assure ultrapure water’s quality.

n Optimized pretreatment (including PP fiber, KDF and active carbon cartridge), effectively protect RO membrane.

n RO module with DOW’s membrane, ensure long life, stable operation and high desalinization rate.

n 4 in 1 ultrapure cartridge (can be divided to 4 independent cartridge) with DOW’s top polishing resin, ensure ultrapure water’s quality up to 18.2 MΩ.cm, with the lowest TOC level.

n Double wavelength (185&254nm) ultraviolet lamp module, restrain bacteria’s increase and reduce TOC.

n MWCO 5000D ultrafiltration module, effectively eliminate endotoxin, and suitable for precise cell cultivating and IVF.

n (0.45+0.1)µm double layer PES terminal disinfection filter, assure that terminal pure water is absolutely axenic.

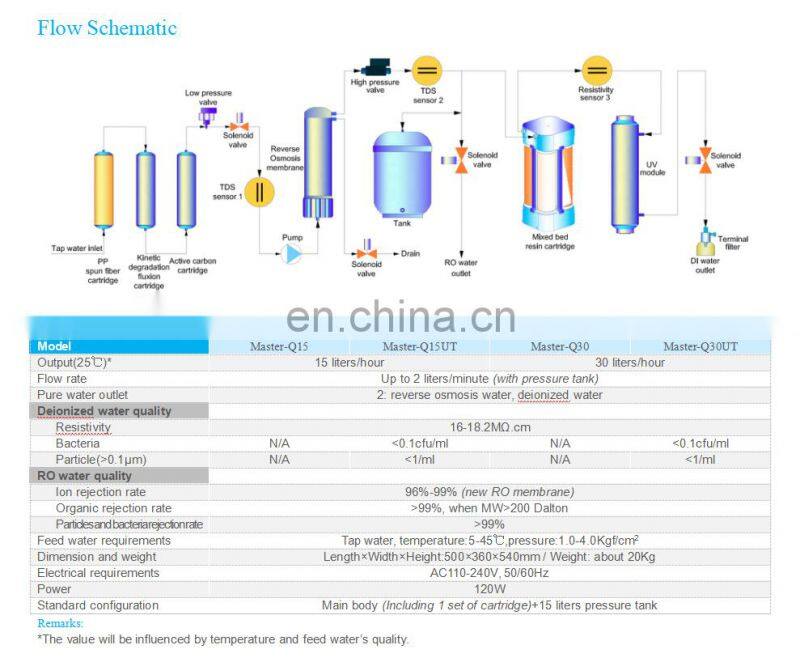

Master-Q series deionized water system (Tap water inlet)

With LCD controlling system, 3 way water quality sensor, timing and quality dispensing, single stage RO system and 1 pump, Master-Q series deionized water system is superior choice of deionized water for general grade experiments.

With tap water inlet, its output ranges from 15 to 30 liters/hour. It can produce single stage RO water and deionized water. The single stage RO water’s ion rejection rate is more than 96%, and the deionized water’s resistivity is more than 16MΩ.cm, near to18.2MΩ.cm. It completely meets the requirements of general chemical or biological experiments for pure water.

Master-S series ultrapure water system (Tap water inlet)

With LCD controlling system, 3 way water quality sensor, timing and quality dispensing, single stage RO system and 2 pumps, Master-S series ultrapure water system is superior choice of ultrapure water for high grade experiments.

With tap water inlet, its output ranges from 15 to 30 liters/hour. It can produce single stage RO water and ultrapure water. The single stage RO water’s ion rejection rate is more than 96%, and the ultrapure water’s resistivity absolutely reaches to 18.2MΩ.cm. It completely meets the highest grade I standard of ASTM, CAP, CLSI, EP and USP.

Master-D series ultrapure water system (Distilled water inlet)

With LCD controlling system, 3 way water quality sensor, timing and quality dispensing and 1 pump, Master-D series ultrapure water system is superior choice of ultrapure water for high grade experiments.

With pure water or distilled water inlet, its output is up to 2 liters/minute. It can produce deionized water and ultrapure water. The deionized water’s resistivity is above 5MΩ.cm, and the ultrapure water’s resistivity absolutely reaches to 18.2MΩ.cm. It completely meets the highest grade I standard of ASTM, CAP, CLSI, EP and USP.
