Automated Hematology Blood Analyzer Manufacturer

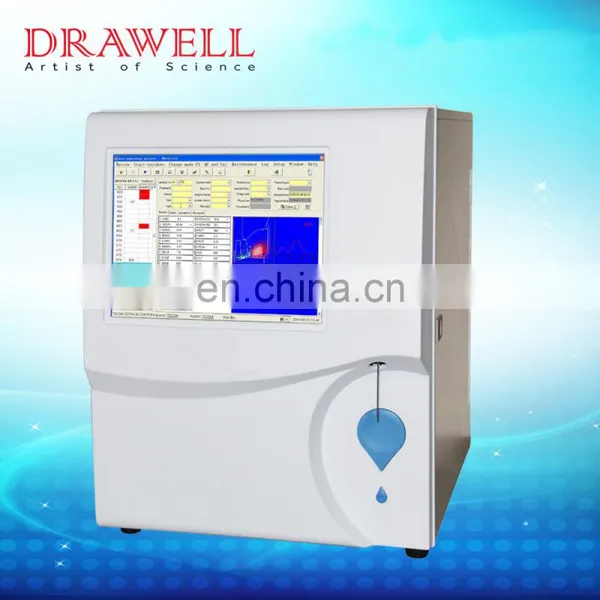

DW-TEK5000 Automatic Hematology Analyzer

l 3-part differentiation of WBC

l Double Chambers for WBC and RBC/PLT

l Throughout: 60 samples per hour

l Intelligent reagent management function:

Reagent information and residual display,

l Strong data management system

l Multilingual for option

l LCD with high resolution

l Bar code scanner ( optional)

l Reagent alarm system ( optional )

Automatic Hematology Analyzer

Technical Specifications

21Parameter + 3Histogram

WBC, LYM#, MID#, GRA#, LY%, MID%, GR%, RBC, HGB,HCT,

MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT,

P-LCR, P-LCC and Histogram for WBC, RBC, PLT

Method:

Coulter Principle (Electrical impedance)

Colorimetry hemoglobin determination

Performance

Throughout

60 samples per hour

Menu

Review, Test, Maintenance, QC, Setup, Shutdown, Prime reagents, System diagnosis, Aperture rinse, Soak and Rinse, Calibration, instrument config

Display

8” color touch screen display

Sample volume

Predilute:     20µL

Whole blood:  10µL

Aperture Diameter

WBC          80µM

RBC/PLT      70µM

Carryover

WBC≤1.5%,RBC,HGB<1.0%, PLT≤2%

Input / Output

1 RS232, 1 keyboard , Mouse

4 USB, LAN

Printout

Built-in thermal printer

Operating Environment

Temperature:     10-35℃

Humidity:         ≤90%

Power Requirement

AC 100-240V 50/60Hz

Dimension

Instrument:440mm(H) x 350mm(W) x 440mm(D)

Package: 570mm(H) x 520mm(W) x 600mm(D)

Net Weight

Net:17kg    Gross:21.8kg
