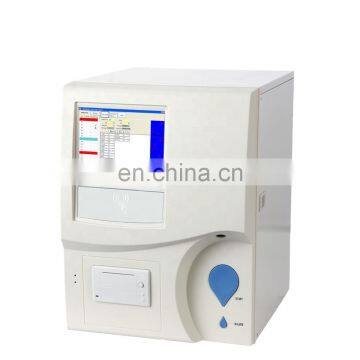

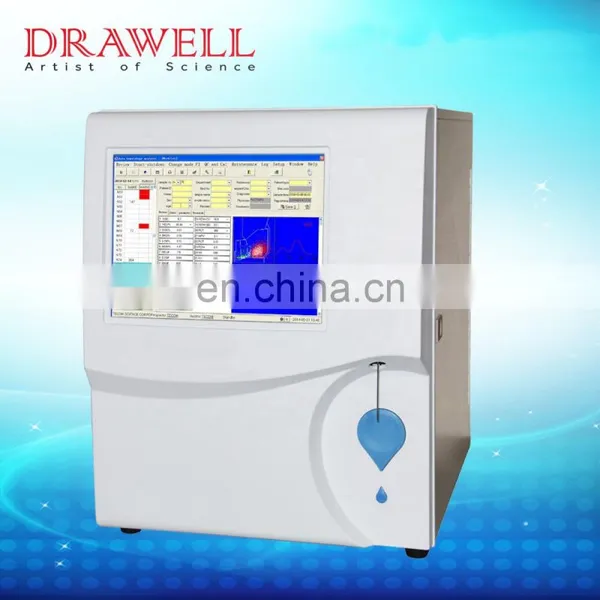

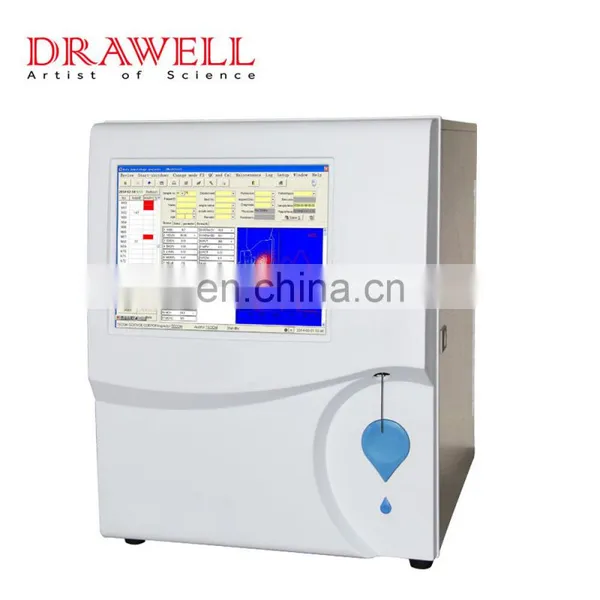

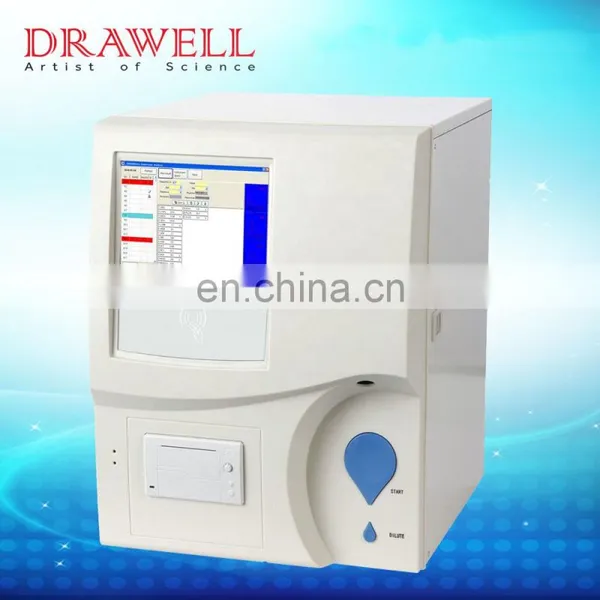

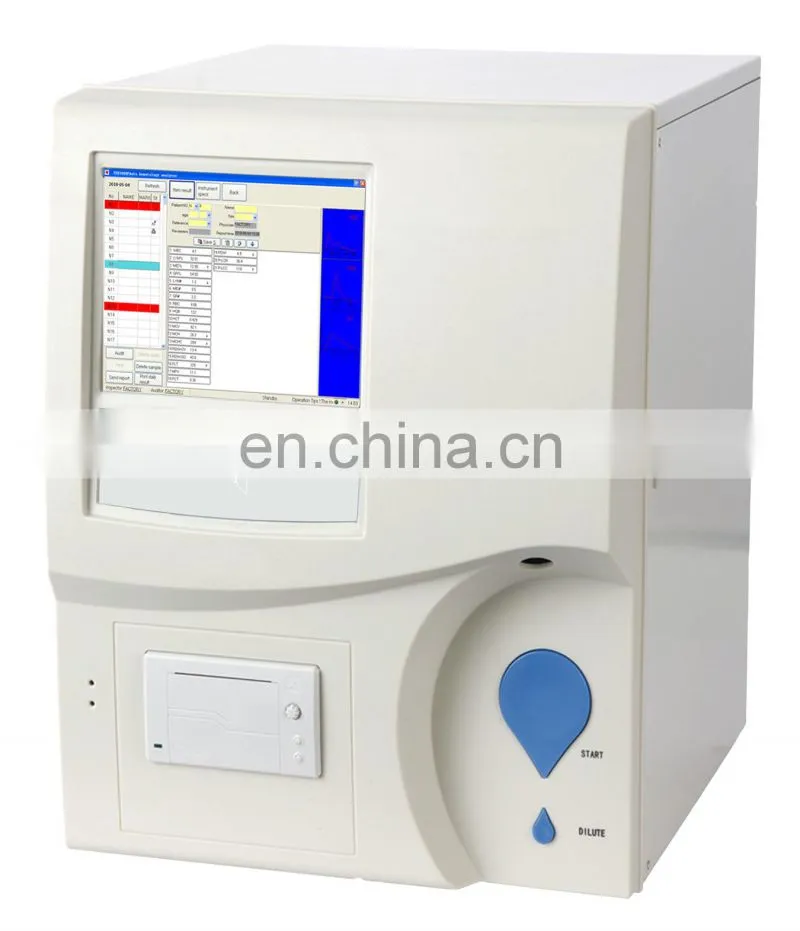

DW-TEK5000 Automatic Hematology Analyzer
l 3-part differentiation of WBC
l Double Chambers for WBC and RBC/PLT
l Throughout: 60 samples per hour
l Intelligent reagent management function: Reagent information and residual display,
l Strong data management system
l Multilingual for option
l LCD with high resolution
l Bar code scanner ( optional)
l Reagent alarm system ( optional )
Automatic Hematology Analyzer
Technical Specifications
21Parameter + 3Histogram
WBC, LYM#, MID#, GRA#, LY%, MID%, GR%, RBC, HGB,HCT,
MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT,
P-LCR, P-LCC and Histogram for WBC, RBC, PLT
Method:
Coulter Principle (Electrical impedance)
Colorimetry hemoglobin determination
Performance
|
Parameter |
Linearity range |
Precision (CV%) |
|
WBC(109/L) |
0.0-100.0 |
2.0(at 7.0) |
|
RBC(1012/L) |
0.00-9.99 |
1.5(at 5.00) |
|
HGB(g/L) |
0-300 |
1.0 (at 140) |
|
PLT(109/L) |
0-1000 |
4.5(at 250) |
|
Parameter |
Linearity range |
Precision (CV%) |
|
WBC(109/L) |
0.0-100.0 |
2.0(4.0-10.0) |
|
RBC(1012/L) |
0.00-9.99 |
1.5(3.50-5.50) |
|
HGB(g/L) |
0-300 |
1.0 (110-160) |
|
PLT(109/L) |
0-1000 |
4.5(100-300) |
Throughout
60 samples per hour
Menu
Review, Test, Maintenance, QC, Setup, Shutdown, Prime reagents, System diagnosis, Aperture rinse, Soak and Rinse, Calibration, instrument config
Display
8” color touch screen display
Sample volume
Predilute: 20µL
Whole blood: 10µL
Aperture Diameter
WBC 80µM
RBC/PLT 70µM
Carryover
WBC≤1.5%,RBC,HGB<1.0%, PLT≤2%
Input / Output
1 RS232, 1 keyboard , Mouse
4 USB, LAN
Printout
Built-in thermal printer
Operating Environment
Temperature: 10-35℃
Humidity: ≤90%
Power Requirement
AC 100-240V 50/60Hz
Dimension
Instrument:440mm(H) x 350mm(W) x 440mm(D)
Package: 570mm(H) x 520mm(W) x 600mm(D)
Net Weight
Net:17kg Gross:21.8kg
