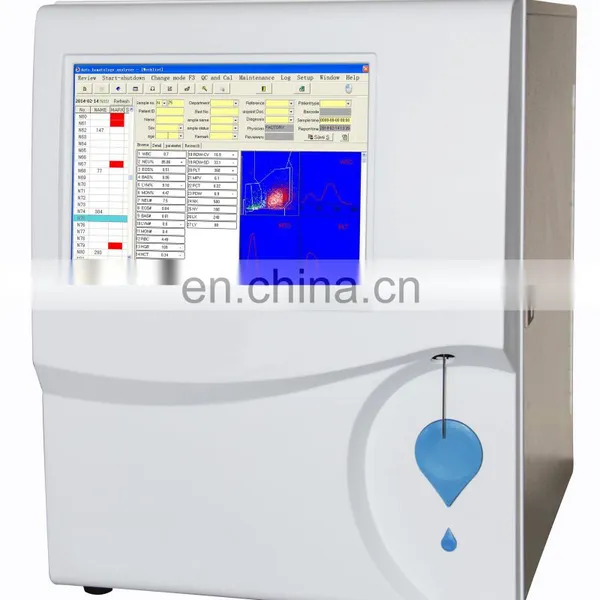

DW-TEK8510 5-Automatic Hematology Analyzer for Clinic
A real automatic 5 diff hematology analyzer but only
l Small space:53cmx40cmx52cm
l Easy to carry: weight 28kg
Opportunity to replace 3-diff hematology analyzer
l 5 diff, 27 parameters
l 1 Scattergrams, 4 Histograms
l Up to 60 samples per hour
l Optical solid state LASER scattering
l High efficient light collector (patented)
l 12.1" TFT Touch Screen
l Original reagent, control and calibration
l Easy to operate: Friendly and Intellective Software
Automatic Hematology Analyzer
Technical Specifications
Principle
Optical solid state LASER scattering Wide angle light scatter,High efficient light collector(patented)
Electrical Impedance,Double hydrodynamic focusing
Parameters
27 parameters:WBC, LYM#, M0NO#, GRA#, LYM%, M0NO%, GRA%, RBC, HGB,
HCT, MCV, MCH, MCHC, RDW, PLT, MPV, PDW, PCT and Histogram for WBC, RBC, PLT
1 Scattergrams:WBC Interpreted Scattergram
4 Histograms:RBC,PLT,WBC,cyto
Throughput
Up to 60 samples per hour
Display
12.1Inch Touch Screen
Sample types
Whole blood,PLT only,HB only,Capillary predilution,Diluent,Control,Calibrator
Performance
Parameter | Linearity range | Precision (CV%) |
WBC | 0.1-450 | 2.5(7.0-15.0) |
RBC | 0.2-8.5 | 2.5(3.50-6.0) |
HGB | 2-250 | 2.0(110-180) |
MCV | 45-135 | 0.5(80.0-110.0) |
PLT | 10-4000 | 5.0(200-500) |
Sample volume
Prediluted: 20µL
Whole blood: 10µL
Carryover
WBC<0.5%, RBC<0.5%, HGB<0.5%, PLT<1.5%
Mult-language
Chinese,English for optional and others can be customized
Data storage capacity
Up to 100,000 results including numeric and graphical information
Printout
External Laser printer/Inkjet printer, various printout formats and user-defined formats
Operating Environment
Temperature: 18-32℃ Humidity: 30%-85%
Power Requirement
AC 100-240V 50/60HZ
Dimension
Instrument:532mmx400mmx520mm
Package: 696mmx576mmx696mm
Weight
Net:28KG Gross:32KG
