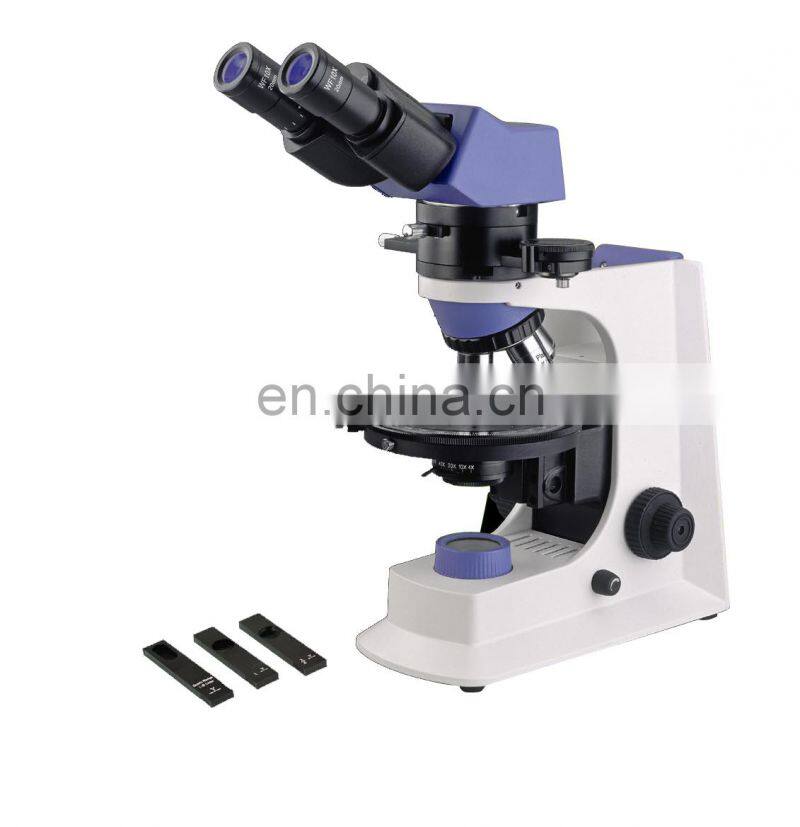

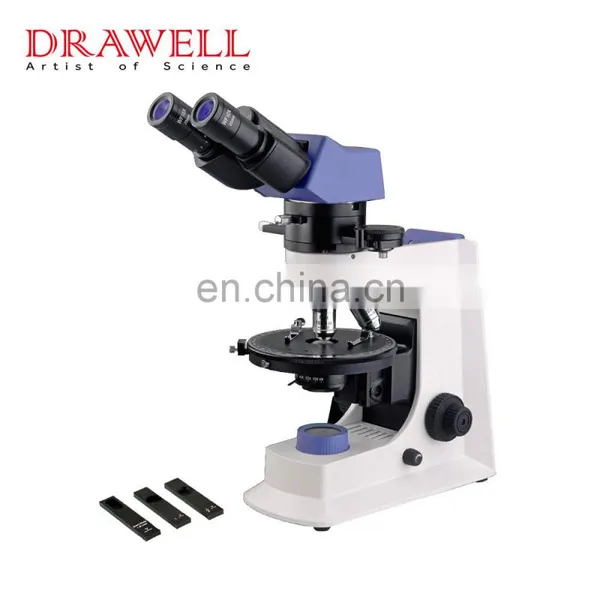

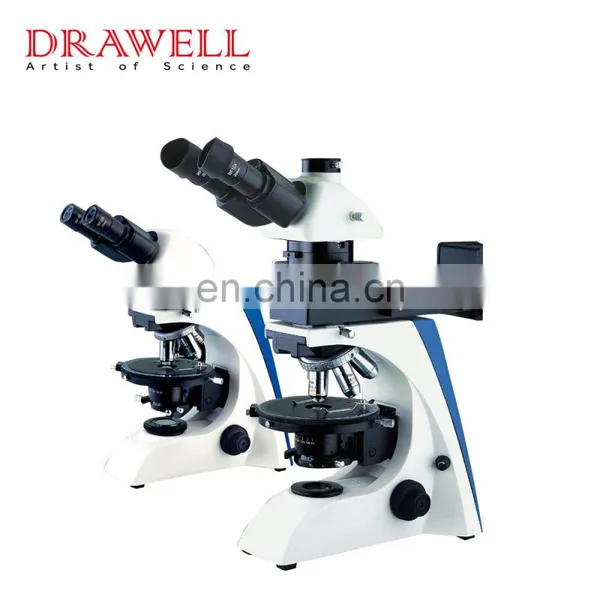

Help CenterDigital Polarizing Microscope Binocular SMART-POL
Related Products
-
BK-POL Digital Polarizing Light MicroscopeUS$ 1,350 - 2,000MOQ: 1 Piece -
BK-FL2 Fluorescence MicroscopeUS$ 1,200 - 1,800MOQ: 1 Piece
-
Trinocular Fluorescent Microscope With Infinity Plan Achromatic ObjectivesUS$ 1,200 - 1,800MOQ: 1 Piece
-
DRAWELL BRAND BK-FL2 Binocular Fluorescence Microscope SlideUS$ 1,000 - 2,000MOQ: 1 Piece
-
DRAWELL BRAND BK-FL2 Fluorescence MicroscopeUS$ 1,500 - 1,500MOQ: 1 Piece
SMART-POL Polarizing Microscope Outfits
Items |
Specification |
SMART-POL |
Eyepiece |
WF 10×-18mm |
* |
WF 10×-18mm (Reticule 0.1mm) |
* |
|
Non-stress |
4× |
* |
10× |
* |
|
20× (S) |
* |
|
40× (S) |
* |
|
60× (S) |
# |
|
Seidentopf Binocular Head |
Inclined 30°, Rotatable 360°, |
* |
Seidentopf Trinocular Head |
Inclined 30°, Rotatable 360°, |
# |
Nosepiece |
Quadplex, Center adjustable |
* |

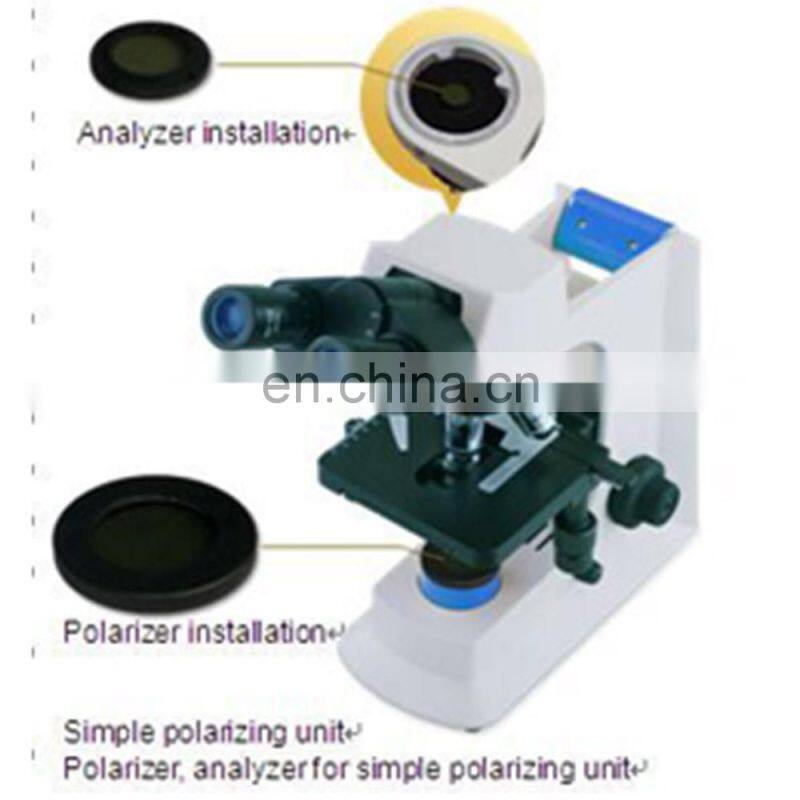

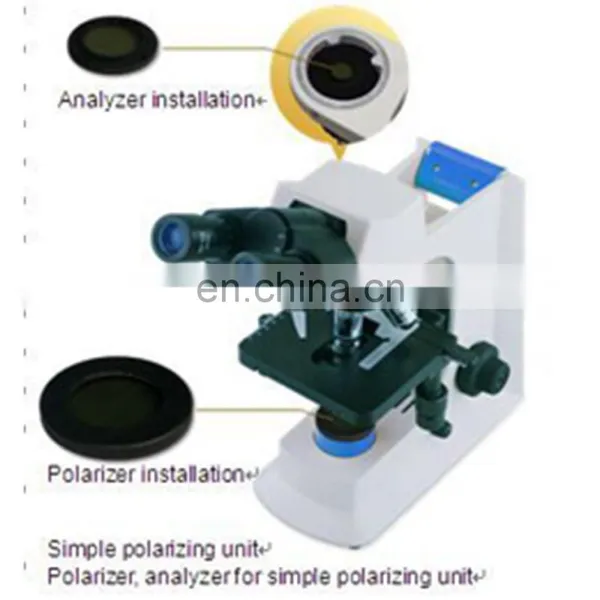

Analyzer Unit with Scale |
Rotatable 360°(Module Type, Can Be Locked) |
* |
Bertrand Lens |
Inbuilt, Center Adjustable |
* |
λ Slip |
First Class Red |
* |
1/4λSlip |
|
* |
Quartz Wedge |
(Ⅰ Class) |
* |
Revolving Round Stage |
Rotatable 360°, Center Adjustable, Division 1°, Vernier division 6’ |
* |
Polarizing Attached Mechanical Stage |
# |
|
Condenser |
Abbe N.A. 1.25 Non-stress |
* |
Polarizing Unit with Scale |
Rotatable 360°,Can Be Locked |
* |
Illumination |
6V/20W Halogen Lamp |
* |
6V/30W Halogen Lamp |
# |
|
Filter |
Blue(Built in) |
* |
Amber |
# |
|
Green |
# |
|
Neutral |
# |
|
C-mount |
1X, 0.47X (Focus adjustable) |
# |
Note: "*"In Table Is Standard outfits, "#" Is Optional Accessories.

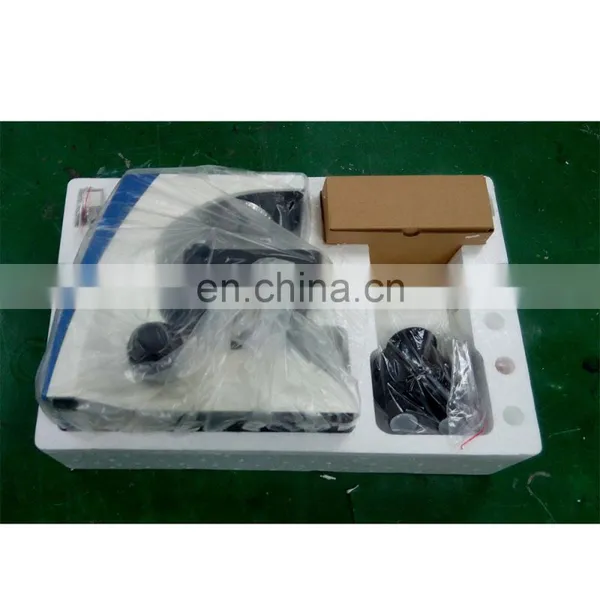

Packing Size: 570mm×275mm×450mm Gross Weight: 8.6 kgs Net Weight: 7.5 kgs
