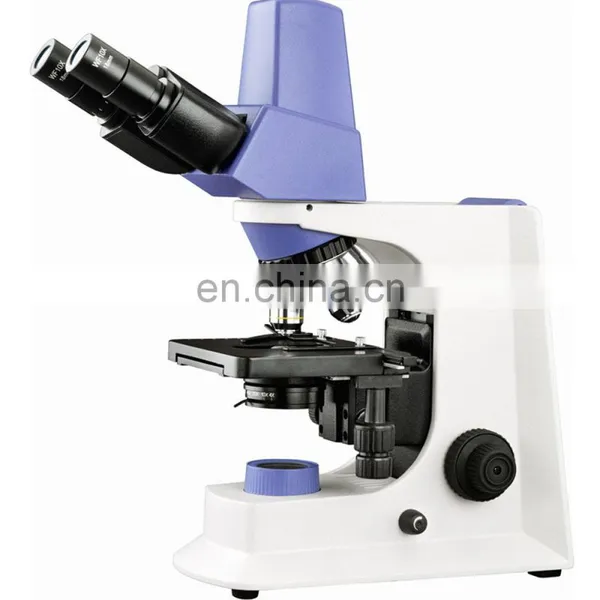

Help CenterDrawell SMART-e320 Microscope Digital With Camera 3.2MP Pixel
Related Products
-
BK5000 Digital Optical Microscope BinoculaireUS$ 60 - 3,500MOQ: 1 Piece -
DRAWELL Biological Digital Electronic Microscope Price With Digital CameraUS$ 400 - 1,000MOQ: 1 Piece
-
SMART Series Binocular Biological MicroscopeUS$ 291 - 299MOQ: 1 Piece
-
USB Digital Biological MicroscopeUS$ 300 - 1,140MOQ: 1 Piece
-
Lab Biological Microscope Outfits PriceUS$ 800 - 4,200MOQ: 1 Piece
SMART-e320/500 Digital Microscope Characteristics
Dustproof, moisture-proof, built-in chip.

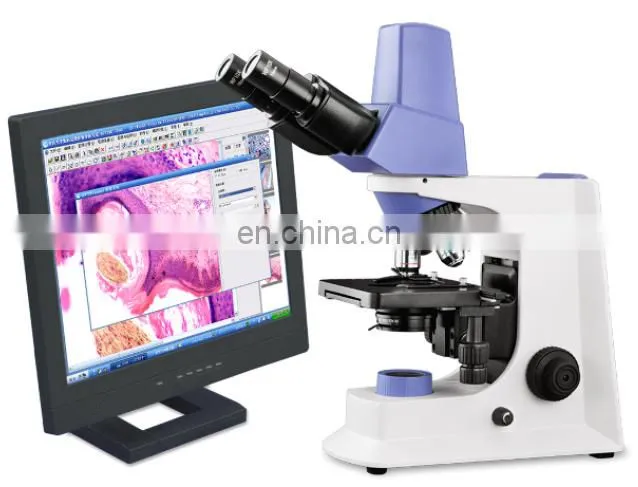

Light distribution 20:80, eyepiece observation synchronized with digital imaging without switching.
Built-in 3MP/5MP digital camera system,1/2’’CMOS color sequential scanning.
USB2.0 connection without external power supply.
vailable for WINDOWS 2000/XP/7/Vista system.
SMART-e Digital Microscope Outfits
Items |
Specification |
SMART-e320 |
SMART-e500 |
Eyepiece |
WF 10X-20mm |
&& |
&& |
Infinity EPlan Objective |
4X |
& |
& |
10X |
& |
& |
|
40X/0.65 (S) |
& |
& |
|
100X/1.25 (Oil) (S) |
& |
& |
|
Seidentopf Binocular Head |
Inclined 30°,Rotatable 360°,Interpupilary Distance: 50-75mm |
& |
& |
Nosepiece |
Quadplex |
& |
& |
Mechanical Stage |
Stage Size: 145X140mm |
& |
& |
Condenser |
Abbe N.A. 1.25(Iris Diaphragm) |
& |
& |
Illumination |
6V/20W Halogen Lamp |
& |
& |
6V/30W Halogen Lamp |
# |
# |
|
LED Illumination Systems(W/O Rechargeable) |
# |
# |
|
Filter |
Blue(Built In) |
& |
& |
Image Systems |
|
3.2MP Pixel |
5 MP Pixel |
Note: "&"In Table Is Standard outfits, "#" Is Optional Accessories.
Packing Size: 570mm×275mm×450mm Gross Weight: 8 kgs Net Weight: 7 kgs
