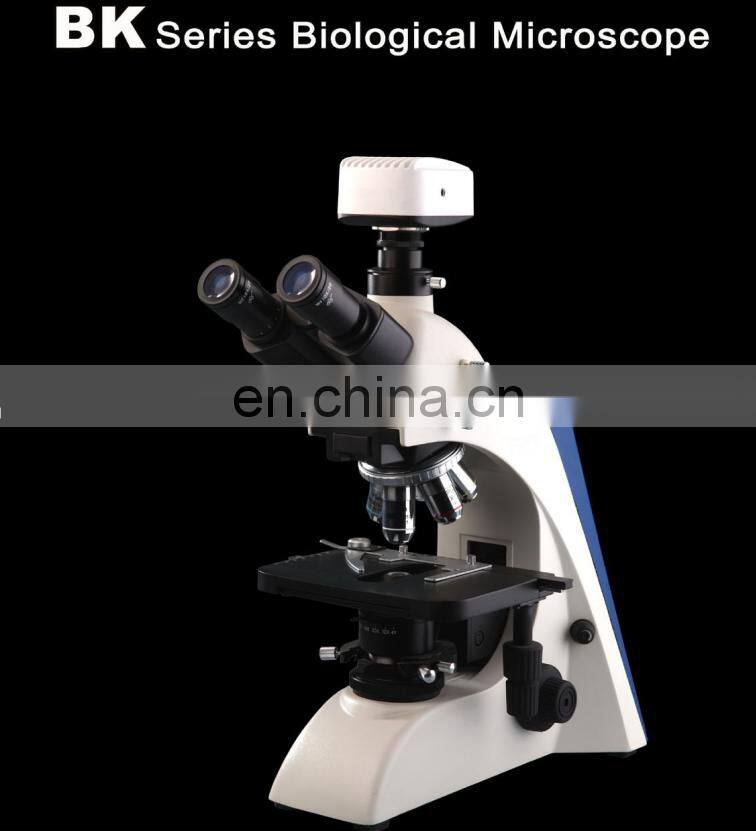

Help CenterBK Series Biological Achromatic Infinity Objective Microscope With Halogen Lamp
Related Products
-
SMART-e320/500 5MP Usb Trinocular Microscope With CameraUS$ 650 - 800MOQ: 1 Piece -
SMART Series Biological Binocular MicroscopeUS$ 300 - 500MOQ: 1 Piece
-
B Series Biological Monocular/Binocularl/Trinocular Laboratory Microscope PriceUS$ 180 - 500MOQ: 1 Piece
-
Digital Fluorescent Microscope With CameraUS$ 350 - 1,500MOQ: 1 Piece
-
Drawell SMART-e320 Microscope Digital With Camera 3.2MP PixelUS$ 896 - 924MOQ: 1 Piece

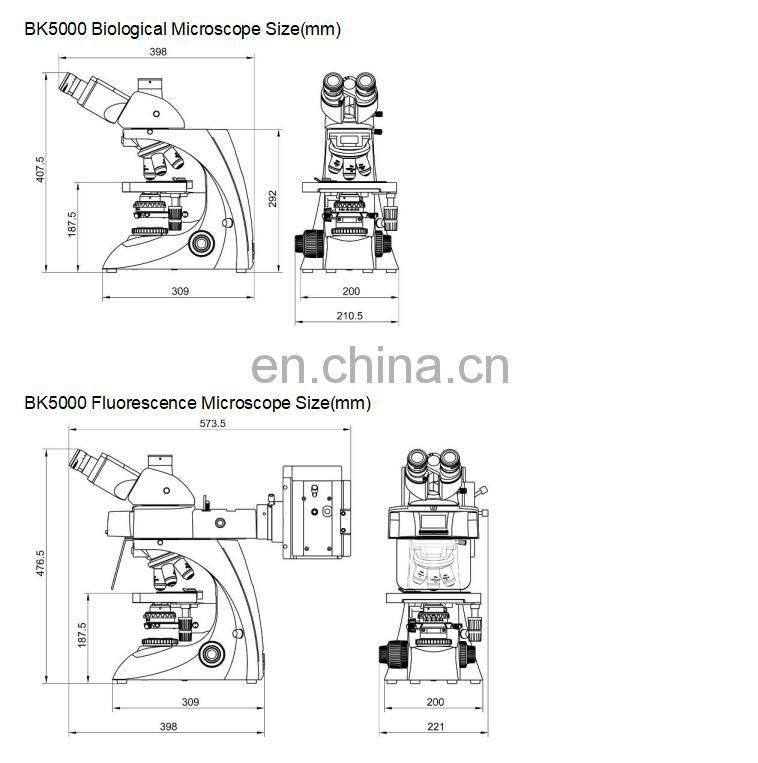

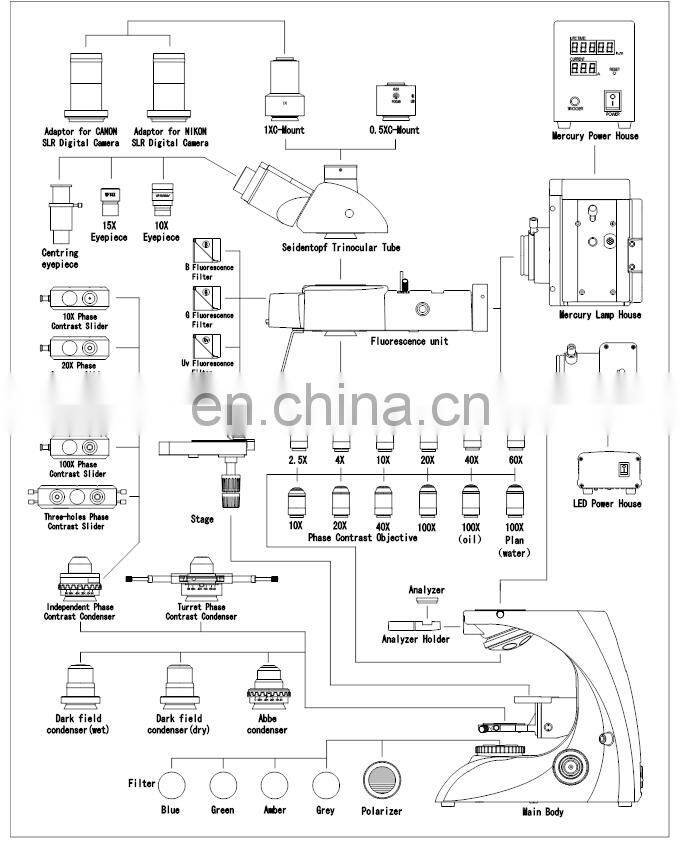

BK5000 Series Biological Microscope General Layout Diagram
BK5000 Series Biological Microscope Outfits
Items | Specification | Outfits | |
Eyepiece | WF10×/20mm (23.2) | YY | |
Infinity Plan Objectives | PLAN 4×/0.10 | W.D.=12.10mm | Y |
PLAN 10×/0.25 | W.D.=4.64mm | Y | |
PLAN 20×/0.40(S) | W.D.=2.41mm | Y | |
PLAN 40×/0.66(S) | W.D.=0.65mm | Y | |
PLAN 100×/1.25(S, Oil) | W.D.=0.12mm | Y | |
PLAN 2.5×/0.07 | W.D.=8.47mm | O | |
PLAN 60×/0.80(S) | W.D.=0.33mm | O | |
PLAN 100×/1.15(S, W) | W.D.=0.19mm | O | |
Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance: 48mm -75mm | Y | |
Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance: 48mm-75mm Light Distribution: 100: 0 / 80:20 | O | |
Nosepiece | Quintuple | Y | |
Mechanical Stage | Stage Size: 175X145mm,Travel: 78mm×55mm | Y | |
Swing Out Condenser | Abbe N.A. 1.25 with iris diaphragm. | Y | |
Koehler Illumination Wide voltage input: 100V~240V Field diaphragm , center adjustable | 6V/20W Halogen Lamp | Y | |
6V/30W Halogen Lamp |
| ||
3W-LED Illumination |
| ||
Filter | Blue | Y | |
Green | O | ||
Amber | O | ||
Grey | O | ||
C-mount | 1×C-mount ( better for digital photograph) | O | |
0.57× C-Mount (focus adjustable, better for digital camera) | O | ||
Adaptor for Digital Photograph | Used for CANON/NIKON/OLYMPUS etc. | O | |

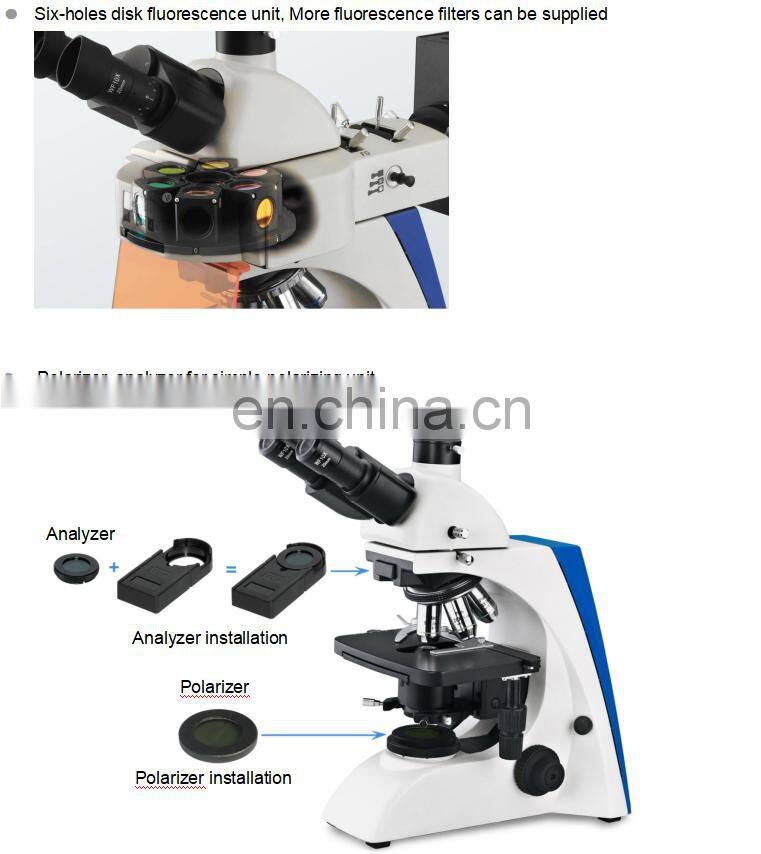

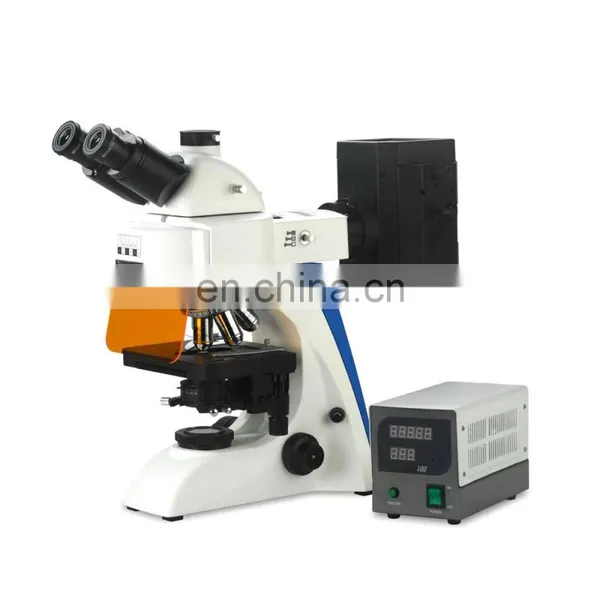

Fluorescence Attachment | Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. | O | |

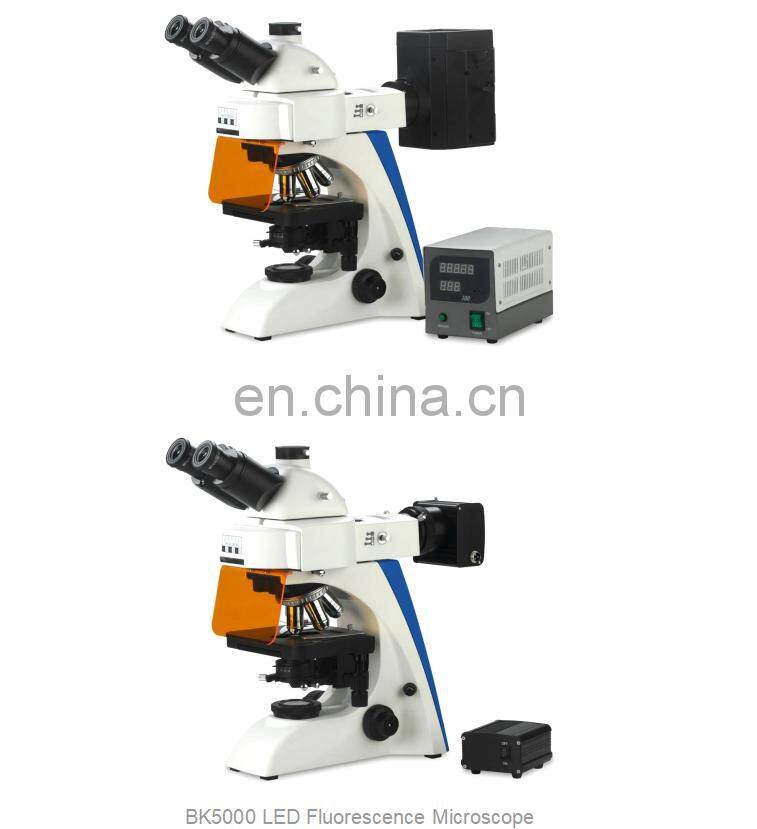

Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), LED fluorescence lamp. | O | ||

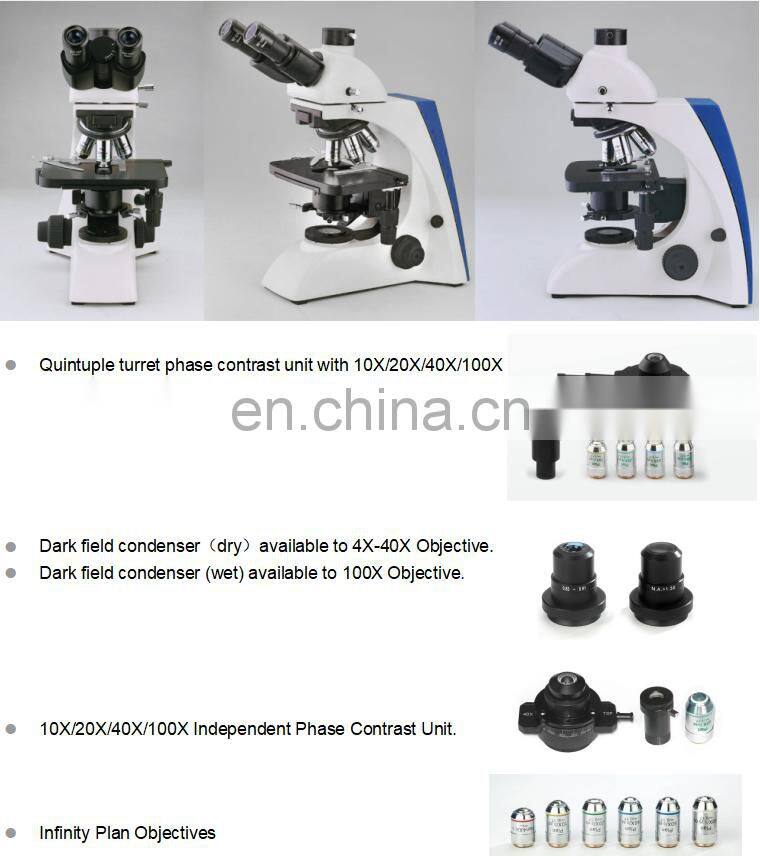

Phase Contrast Unit | Quintuple hole turret 10× /20× /40× /100× phase contrast objective | O | |
Independent slot 10× /20× /40× /100× phase contrast objective | O | ||
Dark Field Unit | Dark field condenser (dry),apply to 4×- 40× objective | O | |
Dark field condenser (wet),apply to 100× objective | O | ||
Polarizing Attachment | Analyzer / Polarizer | O | |
Note: "Y"In Table Is Standard outfits, "O" Is Optional Accessories.
Packing Size: 565mm×310mm×410mm Gross Weight: 12 kgs Net Weight: 10kgs
