DW-CIC-D300 Ion Chromatography Equipment Price

DW-CIC-D300 Ion Chromatography Equipment Price thumbnail-1
DW-CIC-D300 Ion Chromatography Equipment Price photo-1
US$ 17,200 - 35,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DRAWELL
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Shanghai Drawell Scientific Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DRAWELL
Place of Origin Shanghai, China

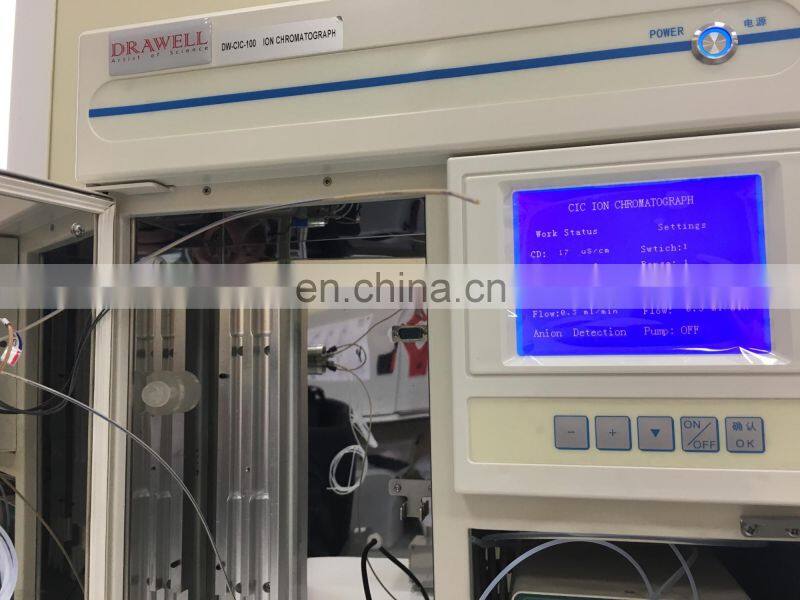

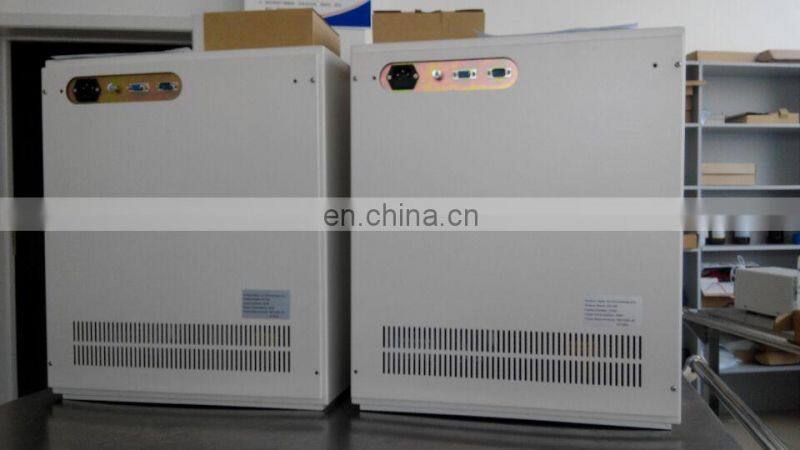

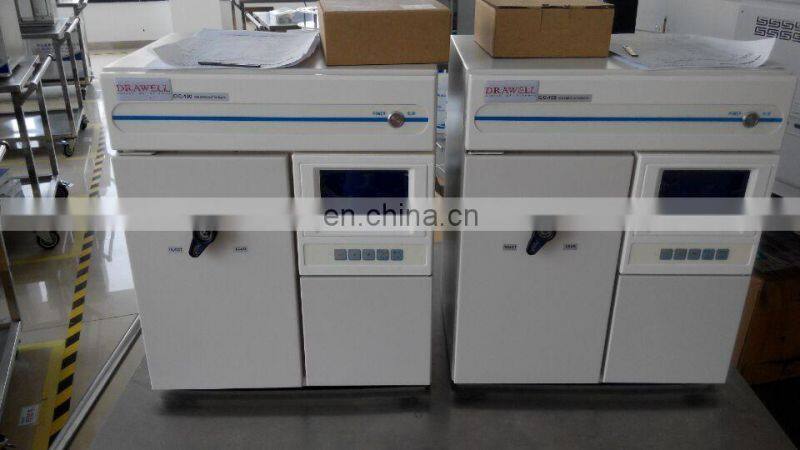

DW-CIC-D300 Ion Chromatography



Major standards

ⅠIon Chromatographic Pump

Type: High - pressure low - pulse double - plunger series pump

Pressure range: 0~42 MPa

Volume of flow range: 0.001~9.999 mL/min

Pressure accuracy: ≤0.1 Mpa

Volume of flow accuracy (setting error): RSD≤0.1%



ⅡDigital Temperature-control detection system

1.      Conductivity Detector

Structure: Temperature - controlled bipolar conductivity detectorDetection Mode: Double conductivity detection

Conductance cell size: ≤0.8μl

Output voltage: -5000~5000 mV (to regulate)

Measure range: 0~30000 μS/cm (10 level to choose)

Resolution : ≤0.025 ns

Conductance cell temperature: 5~50℃(to regulate)

Constant temperature accuracy: ±0.01℃

Baseline noise: ≤0.6%FS

Baseline drift: ≤2.0%FS

Qualitative repeatability: ≤1%

Quantitative repeatability: ≤1%



ⅢFlow System

The whole plastic pipeline: made of PEEK materials

Six-way valve: Rheodyne electromagnetic six-way valve made in America, compression resistance of 7000 psi. Collect signals automatically.

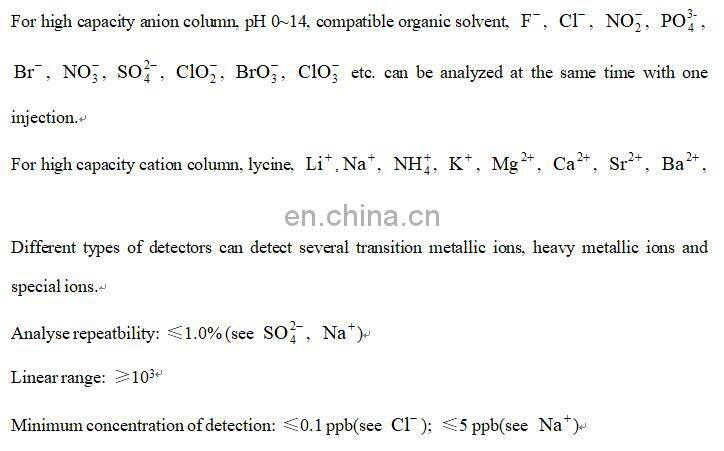

IV Analytic Capability
