Home > Instruments & Meters > Analysis Instrument > Gas Analyzer > ic Ion Chromatograph Chromatography System

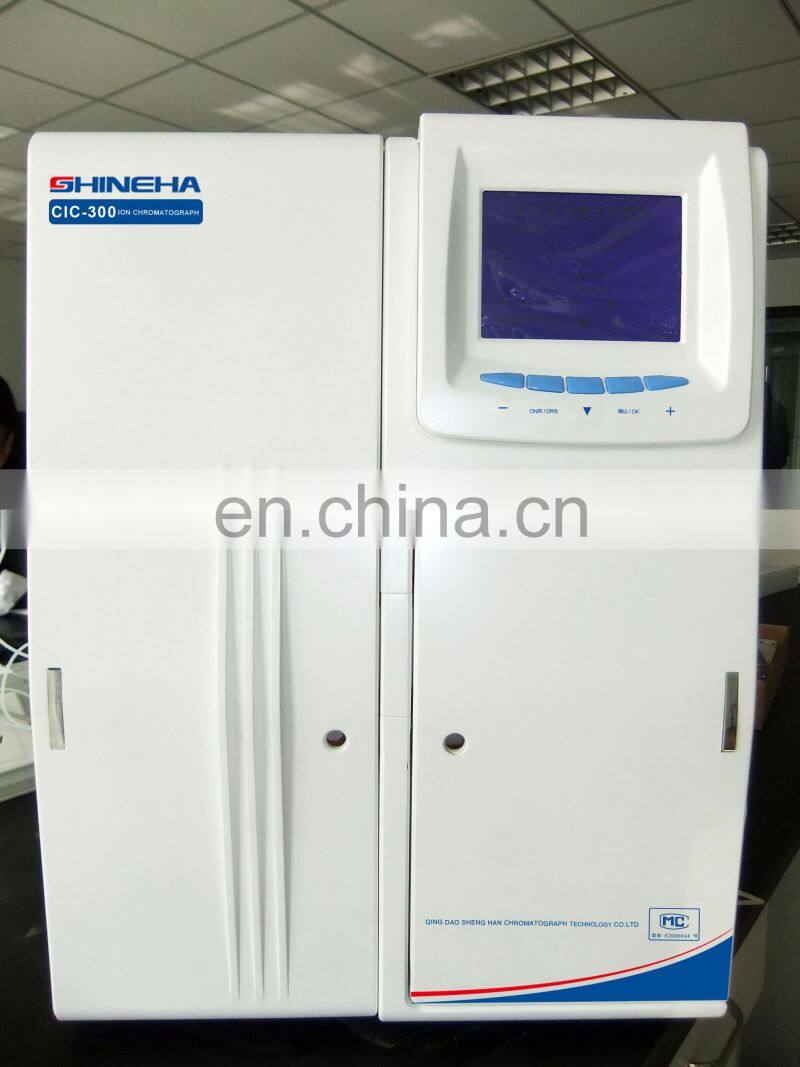

ic Ion Chromatograph Chromatography System
US$ 17,000 - 62,500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Drawell
Place of Origin:
Shanghai, China
Model Number:
DW-CIC-D300
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DW-CIC-D120 Ion Chromatography System China ManufactureUS$ 9,500 - 28,500MOQ: 1 Piece -
DW-CIC-D160 Ion Chromatograph System Manufacture China Drawell For SaleUS$ 12,000 - 36,600MOQ: 1 Piece
-
Gas Chromatography Mass Spectrometry(GC-MS), NewUS$ 30,002 - 60,002MOQ: 1 Piece
-
Gas Chromatography Mass Spectrometry(GS-MS) PriceUS$ 30,001 - 80,001MOQ: 1 Piece
-
New Model GC-MS-II Gas Chromatography Mass Spectrometry(GCMS)US$ 37,180 - 55,770MOQ: 1 Piece
Brand Name
Drawell
Place of Origin
Shanghai, China
Model Number
DW-CIC-D300
DW-CIC-D300 Ion Chromatography
Major standards
ⅠIon Chromatographic Pump
Type: High - pressure low - pulse double - plunger series pump
Pressure range: 0~42 MPa
Volume of flow range: 0.001~9.999 mL/min
Pressure accuracy: ≤0.1 Mpa
Volume of flow accuracy (setting error): RSD ≤ ≤0.1%
ⅡDigital Temperature-control detection system
1. Conductivity Detector
Structure: Temperature - controlled bipolar conductivity detectorDetection Mode: Double conductivity detection
Conductance cell size: ≤0.8μl
Output voltage: -5000~5000 mV (to regulate)
Measure range: 0~30000 μS/cm (10 level to choose)
Resolution : ≤0.025 ns
Conductance cell temperature: 5~50℃(to regulate)
Constant temperature accuracy: ±0.01℃
Baseline noise: ≤0.6%FS
Baseline drift: ≤2.0%FS
Qualitative repeatability: ≤1%
Quantitative repeatability: ≤1%
ⅢFlow System
The whole plastic pipeline: made of PEEK materials
Six-way valve: Rheodyne electromagnetic six-way valve made in America, compression resistance of 7000 psi. Collect signals automatically.
