DW-GC1290 Gas Chromatography Machine and Price

DW-GC1290 Gas Chromatography Machine and Price thumbnail-1
DW-GC1290 Gas Chromatography Machine and Price thumbnail-2
DW-GC1290 Gas Chromatography Machine and Price thumbnail-3
DW-GC1290 Gas Chromatography Machine and Price thumbnail-4
DW-GC1290 Gas Chromatography Machine and Price thumbnail-5
DW-GC1290 Gas Chromatography Machine and Price thumbnail-6
DW-GC1290 Gas Chromatography Machine and Price photo-1
DW-GC1290 Gas Chromatography Machine and Price photo-2
DW-GC1290 Gas Chromatography Machine and Price photo-3
DW-GC1290 Gas Chromatography Machine and Price photo-4
DW-GC1290 Gas Chromatography Machine and Price photo-5
DW-GC1290 Gas Chromatography Machine and Price photo-6
US$ 13,100 - 41,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DRAWELL
Place of Origin:
Shanghai, China
Model Number:
DW-GC1290 series
Contact Supplier Request Quote Chat Now
Shanghai Drawell Scientific Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DRAWELL
Place of Origin Shanghai, China
Model Number DW-GC1290 series



Product Description

           Gas Chromatography






     Specification



Model#

DW-GC1290

Description

EPC(electronic pneumatic control)
 7 inch touch screen display

Sample Introduction System

sample injector and evaporation chamber

Column Oven

Temperature range

Ambient temperature +7℃ ~ 420℃  (in 1℃ increment)

Temperature accuracy

 ± 0.02℃

Cooling time

350℃~100℃≤3min, 400℃~50℃ in 8-10 min at 25℃ ambient

Programmed temperature setting

0.1℃~80℃/min (in 1℃ increment)

Program ramps

20 ramps in total (99 ramps available with control workstation)

Size (L*W*H)

284*280*241mm(inside)

340*345*281mm(outside)

Flame Ionization Detector
(FID)

Detection limit

≤8×10-12g/s (n-hexadecane)

Drift

≤1.5×10-13A/h

Noise

≤3×10-14A

Linearity range

≥106

Flame Photometric Detector
(FPD)

Detection limit

≤8×10-13g/s(P) ; ≤8×10-11g/s(S)

Drift

≤2×10-11A/30min

Baseline noise

≤5×10-12A

Nitrogen-Phosphorus Detector
(NPD)

Detection limit

≤5×10-12g/s(N) (Azobenzene)
            ≤5×10-13g/s(P)  (Malathion)

Features:

Control system: designed for monitoring and controlling the instrument via the computer.
Column Compartment/oven with superior thermal performance, multistage (20 ramps) programmed temperature control function. (supported by “control system”)
Advanced built-in data acquisition system , supporting real time instrument status monitoring, detection signal acquisition and PC control
Column oven supports quick heat-up and rapid cool-down with automated back-door opening.
Flexible sample introduction system: 2 sample injectors could be installed and operated simultaneously with independent temperature control.
High sensibility and stability detector.
2 independent and analog signals output.
M6 software, compatible with GLP/FDA-21 CFR Part11 requirements and regulations. (electronic records and signatures)

Electronic pneumatics control system

Flow rate: 200ml/min (N2), 1000ml/min (He)
Flow rate accuracy: ±5%
Flow rate repeatability: ±0.35%
Split ratio: 0-5000(He), 0-1000(N2)
Inlet temperature: 0-420℃





Gas chromatography and accessories:



Carrier Gas System + Sample Introduction System + Separation System + Temperature Control System + Detector
Carrier Gas System: air source/ purification and desiccation device/ flow rate control device
Sample Introduction System: sample injector
Separation System: chromatographic column(packed column and capillary column)
Temperature Control System (Column Oven): constant temperature and programmed temperature
Detector: FID/ FPD/ NPD

Advanced Microcomputer Control System

Superior performance with advanced, microcomputer-based temperature control system
High temperature accuracy (optimum ± 0.02℃), high reliability, and anti-interference
Self-diagnosis/ self-protection function (overheat protection, power-off protection, etc.)
Intuitive display of timing program, detector status, measurement range, current setting, etc

 DW-GC1290 Gas Chromatography machine and price

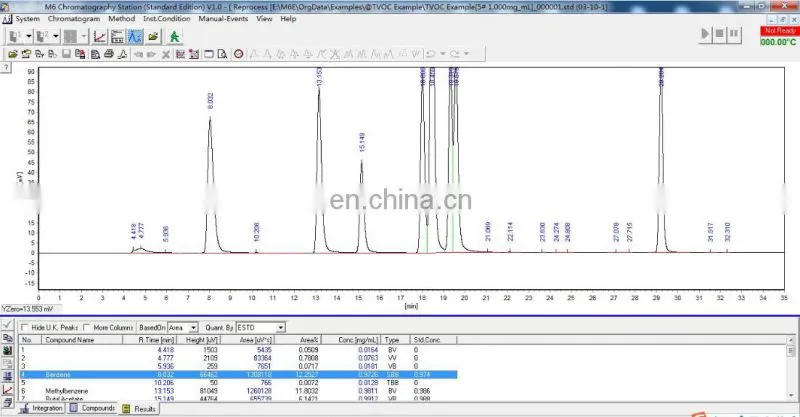

M6 Software interface





DW-GC1290 Gas Chromatography machine and priceDW-GC1290 Gas Chromatography machine and priceDW-GC1290 Gas Chromatography machine and priceDW-GC1290 Gas Chromatography machine and priceDW-GC1290 Gas Chromatography machine and price

products profile

DW-GC1290 Gas Chromatography machine and price

case

DW-GC1290 Gas Chromatography machine and price

company profile

DW-GC1290 Gas Chromatography machine and price

exhibition

DW-GC1290 Gas Chromatography machine and price

packing

DW-GC1290 Gas Chromatography machine and price

FAQ

DW-GC1290 Gas Chromatography machine and price

payment methods

DW-GC1290 Gas Chromatography machine and price
