1W/3W Laser Module for Laser Engraving Machine

1W/3W Laser Module for Laser Engraving Machine thumbnail-1
1W/3W Laser Module for Laser Engraving Machine photo-1
US$ 2,100 - 3,200 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Model Number:
EL-532
Contact Supplier Request Quote Chat Now
Changchun New Industries Optoelectronics Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CNI
Place of Origin Jilin, China
Model Number EL-532
Product Description

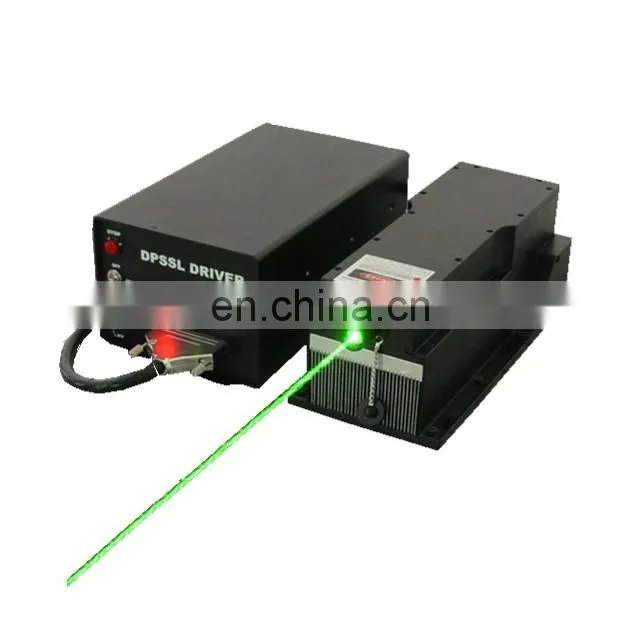

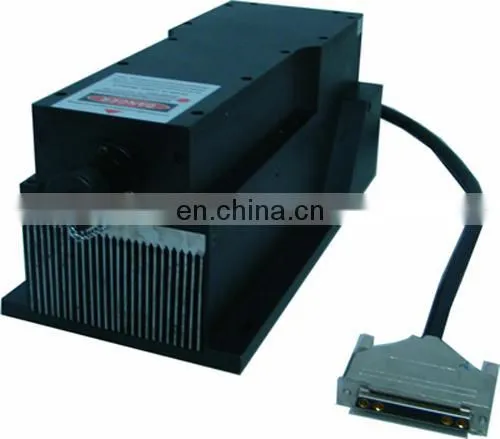

Laser module for laser engraving machine-EL-W-532

532nm laser source is the ideal choice for the laser marking machines which are applicable for the agricultural byproduct, such as fruit, eggs, vegetables.
532nm air cooled end pumped Q-switched DPSS laser has the following features: fully enclosed laser cavity design, in order to be no dust and frost; long lifetime to low down the failure rate which is suitable for industrial production environment; Good stability is good at continuous operation for 24 hours at room temperature; this design is convenient for integration and maintenance; short wavelength, small focused beam spot suitable for various precision working. These lasers are the ideal choice for the industries working.

Features


• Short wavelength, short pulse, excellent beam quality;

• High precision, high peak power;

• These lasers are ideal for applications in material processing, which can significantly reduce the thermal effect to achieve the perfect mark.

Application Industries:


• Agricultural byproducts: such as fruit, vegetable, egg;

• Precision mark on the surface of button and glass;

• Chip mark, PCB processing;

• LCD, IC, solar cell material processing and so on.

Specifications
Wavelength (nm)
532±1
Work pattern
Q-switched
Operating Temp. (℃)
10~35℃
Cooling-down method
Air-cooled
Expected lifetime (hours)
20000
Warranty
1 year
Pilot light
<3mW@650nm
Transverse mode
TEM00
Beam divergence, full angle (mrad)
<1.5mrad
Beam diameter at aperture
~1.5mm
Model
EL-532-1.5W
EL-532-2WEL-532-3W
Pulse width (ns)
~2ns
~5ns
Pulse repetition rate (kHz)
~10kHz
~25kHz
Power stability (rms, over 8 hours)
<3%
<1%, <3%
Beam height from base plate (mm)
68.5mm
84mm
Laser head size
257(L)×99(W)×94(H) mm3, 2. 6 kg
289(L)×112(W) ×108(H) mm3, 3.9kg


Power supply (90-264VAC) (optional)
PSU-N-LED Portable power supply

PSU-AOW-S(2U) Cabinet type power supply
PSU-W-LED(B) Portable power supply

PSU-AOM-S(2U) Cabinet type power supply

Peak power (kW)
~75kW
~20kW
~25kW
Average output power (W)
~1.5W
~2W
~3W
Packing & Delivery
Certifications
Packing & Delivery
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
