YAG Laser engraving machine for metal/stainless stell/jewelry
- 1000 Set / Sets per Month
- Changchun
- T/T Credit Card
- Laser engraving machine for mould/mold/Signage/sanitary ware
- Laser engraving machine for Iphone/Ipad/Mobile transparent keyboard/Electrical appliances
- Green 532nm Laser marking machine for plastic/glass surface/food/Jade
- 2017 laser marking machine made in China
- Iphone case Laser engraving machine
- 532nm Green Laser marking source for PPR/PVC/Plastic/Glass
Product Details
Brand Name: | CNI | Place of Origin: | Jilin, China | Model Number: | DP75-1 |
Product Description

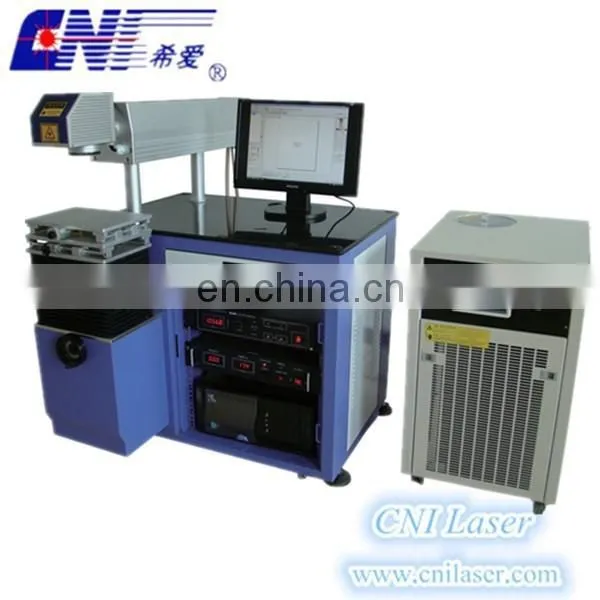

YAG Laser engraving machine for metal/stainless stell/jewelry
Features
The optical system with a fully sealed structure;
Optical path preview and focus indication;
- Water cooling system, low noise, high precision temperature control;
- Cooperate with other instrument on the production line.
- High laser output power, fast marking
- Tunable energy to make depth marking.
Application Industries:
- Tools, locks, stainless steel products;
- Signage, sanitary ware, hardware;
- Glasses, watches and clocks;
Jewelry, auto parts;
PVC pipe, medical equipment and other industries.
Specification
Model | DP75-1 |
Laser type | Nd:YAG |
Wavelength | 1064nm |
Laser peak power | ≥75kW |
Beam quality M2 | <2 |
Pulse duration | ≤100ns |
Power stability (rms,>4h) | <3% |
Beam mode | Near TEM00 |
Marking area | 50mm x 50mm |
Marking depth | ≤3mm |
Maximum marking line speed | 7000mm/s |
Minimum marking line width | ≤0.05mm |
Minimum marking character height | ≤0.5mm |
Rep. marking precision | ≤10μrad |
Power consumption | ≤1.5kW |
Power requirement | 220VAC/50Hz |
Dimensions | 1200*940*1250mm |

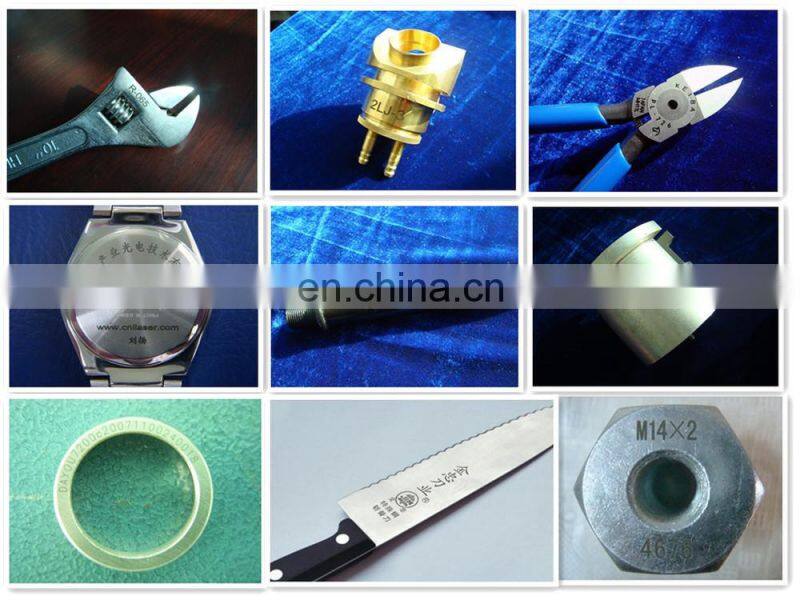

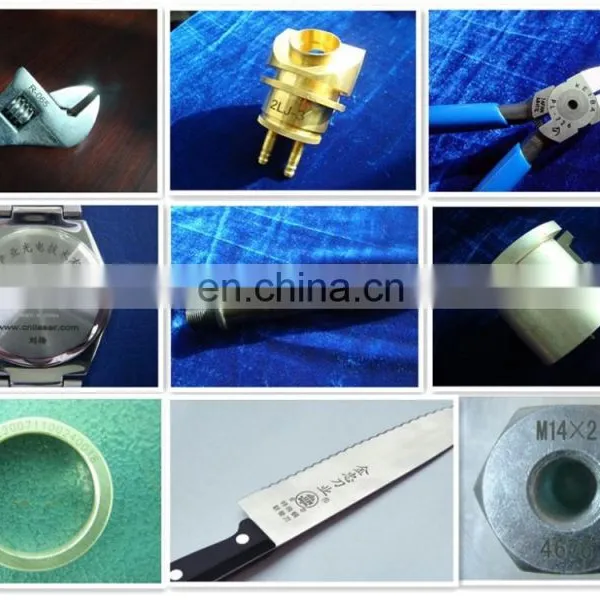

Marking Samples
Company Information

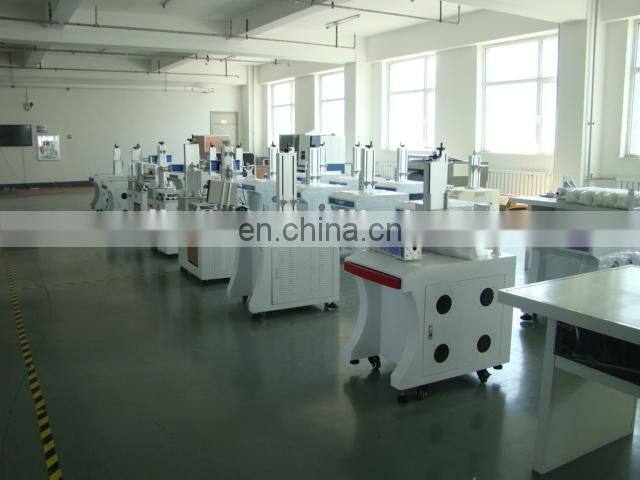

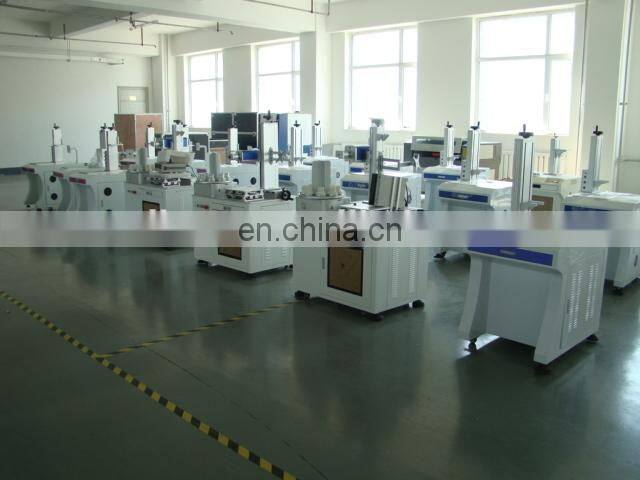

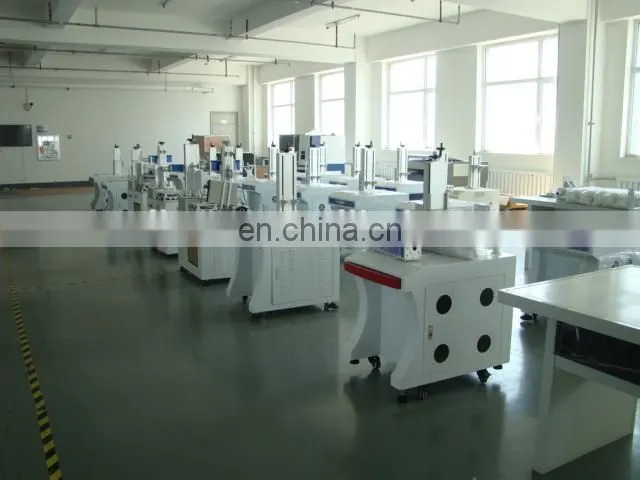

Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE, RoHS and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
