Home > Instruments & Meters > Analysis Instrument > Gas Analyzer > 1064nm Q-switch Pulsed Metal Marking Laser
US$ 840 - 840
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1064nm Laser MarkingUS$ 800 - 800MOQ: 1 Unit -
10W 1064nm IR Pulsed Marking Laser SourceUS$ 760 - 760MOQ: 3 Units
-
4w 1064nm IR Laser Source for Laser MarkingUS$ 570 - 570MOQ: 3 Units
-
8W 1064nm IR Q-switch Laser For MarkingUS$ 710 - 710MOQ: 3 Units
-
6W 1064nm IR Laser Source for Laser MarkingUS$ 680 - 680MOQ: 3 Units
Brand Name
CNI
Place of Origin
Jilin, China
Product Description
Features
End-pumped mode, 45% light to light conversion efficiency
40kW super high peak power, and 2ns short pulse durationAir
cooling structure, Dual module independent power supply design, sturdy structureScientific research quality standard, <1% power
stabilityIndustrial product flow, 12 quality inspection procedures, stable and reliable product quality
cooling structure, Dual module independent power supply design, sturdy structureScientific research quality standard, <1% power
stabilityIndustrial product flow, 12 quality inspection procedures, stable and reliable product quality
Multiple specifications can be selected：EL-1064-2W, EL-1064-3W, EL-1064-5W, EL-1064-6W
Application
EL-1064 series laser product adopt domestic initiative end-pumped laser technology, with 2ns extremely short pulse duration and 10 times peak power than ordinary fiber laser marking system, to ensure when it process plastic and other heat sensitive materials to achieve accurate and efficient marking effect, and not burn material with excessive heat. It is suitable for various plastic materials, and with a lot of application market in electronic shell.
EL-1064 series laser product adopt domestic initiative end-pumped laser technology, with 2ns extremely short pulse duration and 10 times peak power than ordinary fiber laser marking system, to ensure when it process plastic and other heat sensitive materials to achieve accurate and efficient marking effect, and not burn material with excessive heat. It is suitable for various plastic materials, and with a lot of application market in electronic shell.
Specification
Specifications for 1064nm Laser Marking Source | ||||||||
Model | EL-1064-3W. | |||||||
Wavelength (nm) | 1064±1 | |||||||
Average power (W) | ~3 | |||||||
Pulse duration (ns) | ~3 | |||||||
Peak power (kW) | ~50 | |||||||
Rep. rate (Hz) | ~20kHz | |||||||
Power stability (rms) | <1%, <3% | |||||||
Transverse mode | TEM00 | |||||||
Beam divergence, full angle (mrad) | <1.5 | |||||||
Beam diameter at the aperture (1/e2 , mm) | ~2 | |||||||
Beam height from base plate (mm) | 68.5 | |||||||
Cooling-down method | Air-cooled | |||||||
Operating temperature (℃) | 10-35 | |||||||
Power supply (12VDC) | PSU-H-LED Portable power supply PSU-AOM-S(2U) Cabinet type power supply PSU-H-Marker Independent power supply | |||||||
Expected lifetime (hours) | 20000 | |||||||
Warranty period | 1 Year | |||||||
Certifications
Dimensions
EL-1064-3W Laser Head and Power Supply

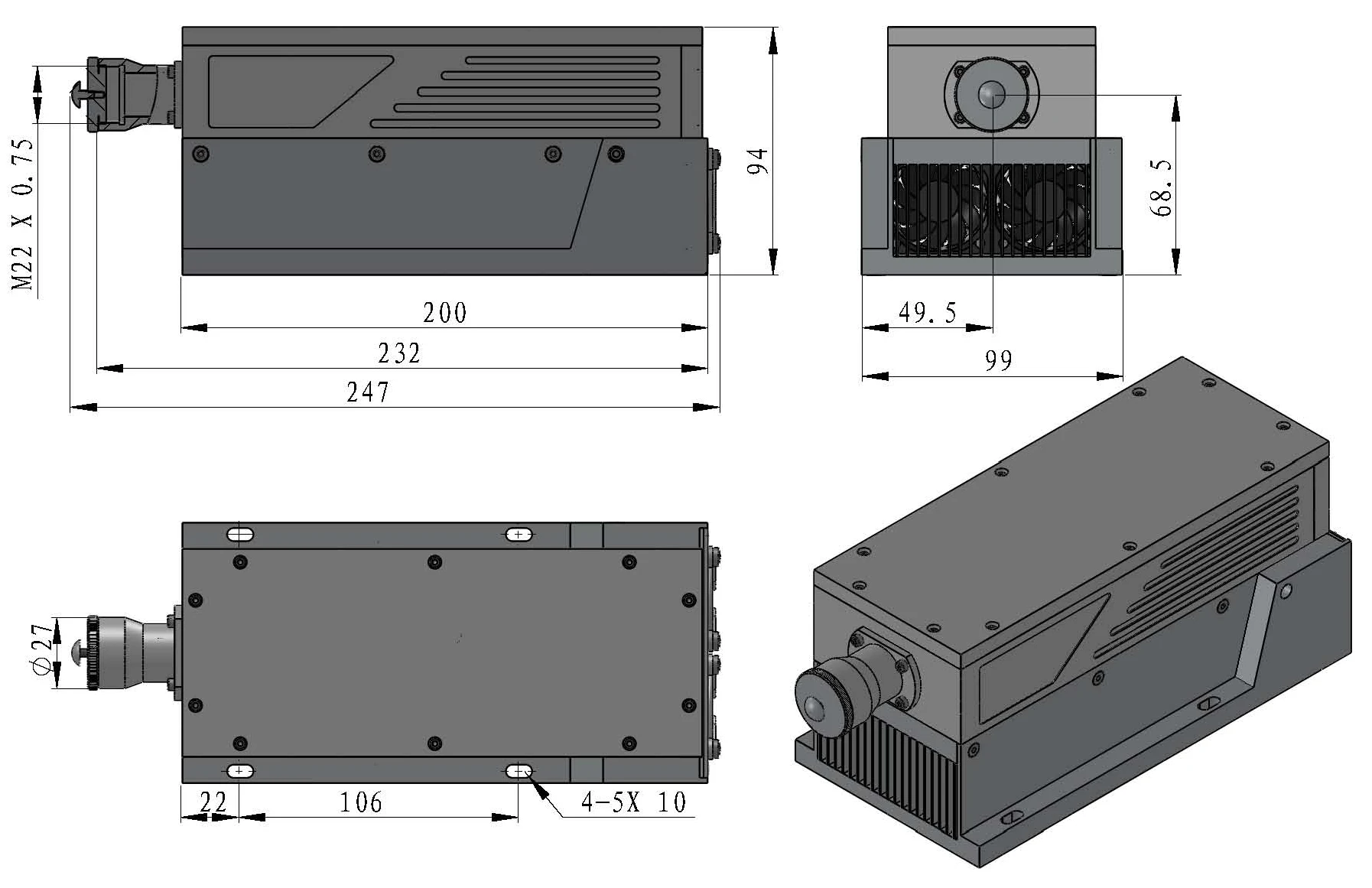

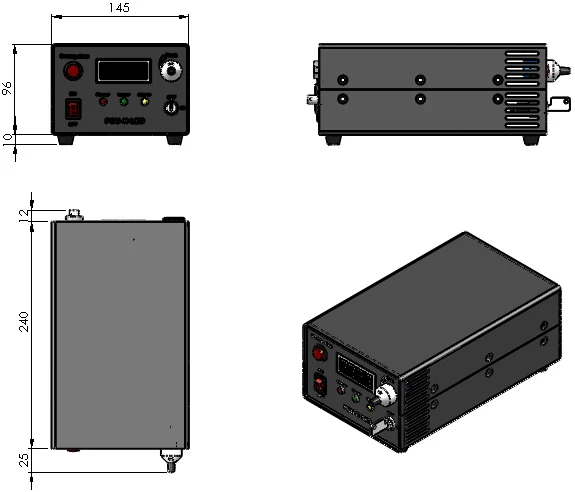

247(L)×99(W) ×94(H) mm3, 2. 6 kg 277(L) ×145(W) ×106(H) mm3, 2.6 kg

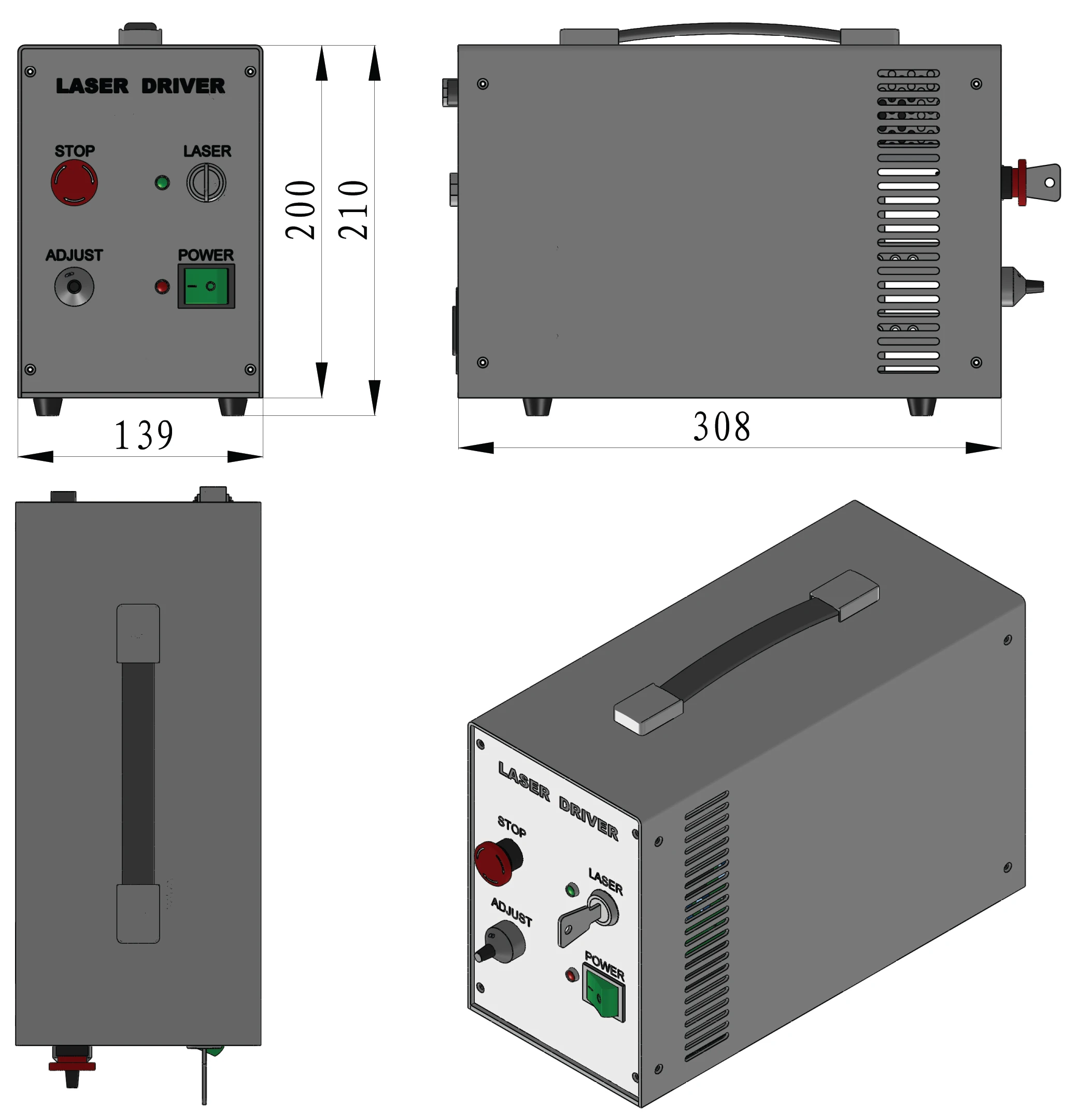

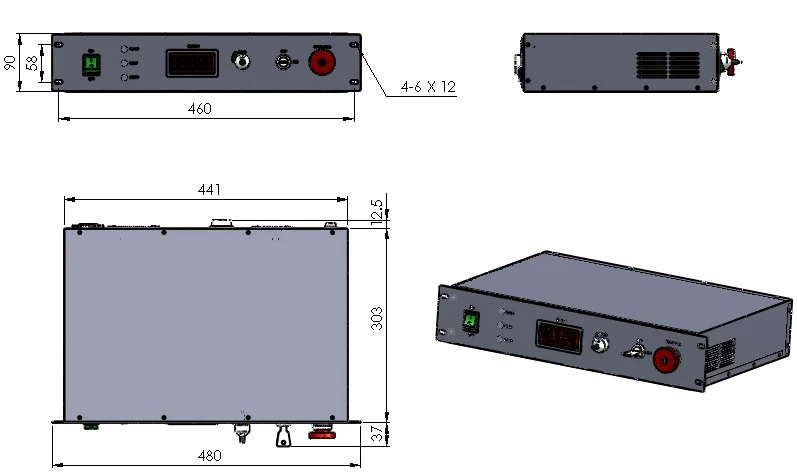

308(L) ×139(W) ×210(H) mm3, 5.7 kg 480(L)×352.5(W) ×90(H) mm3, 7.0 kg
Company Information
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include UV laser, blue laser, green laser, yellow laser, red laser, infrared laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
